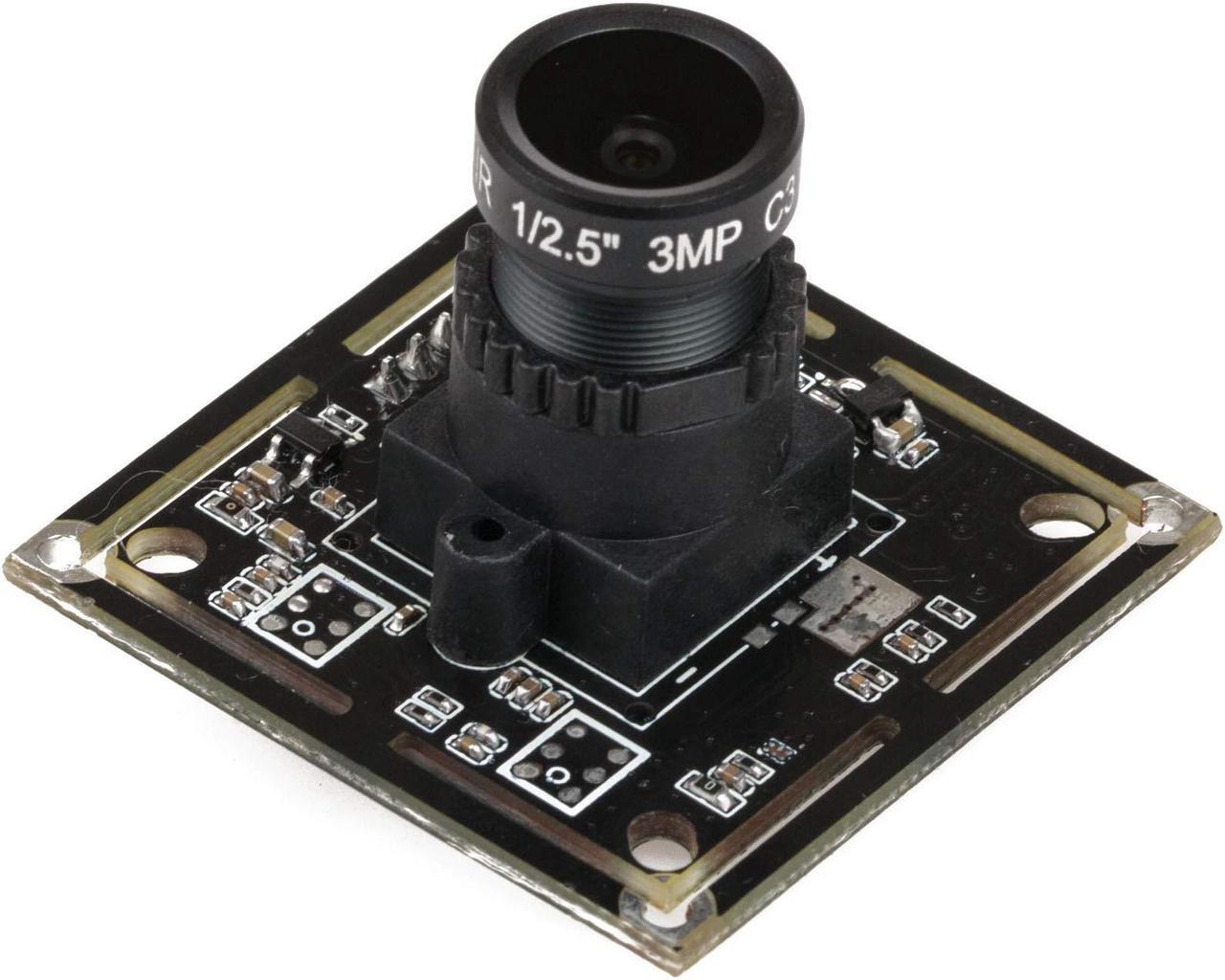

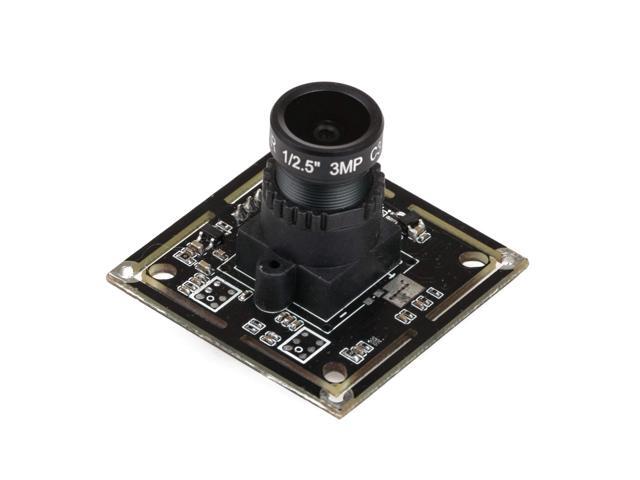

Main image of Spinel 2MP Full HD Low Light WDR H264 USB Camera Module IMX290 with 3.6mm Lens FOV 90 Degree, Support 1920x1080@30fps, UVC Compliant, Support Most OS, Focus Adjustable, P/N: UC20MPG_L36

Alt view image 2 of 4 - Spinel 2MP Full HD Low Light WDR H264 USB Camera Module IMX290 with 3.6mm Lens FOV 90 Degree, Support 1920x1080@30fps, UVC Compliant, Support Most OS, Focus Adjustable, P/N: UC20MPG_L36

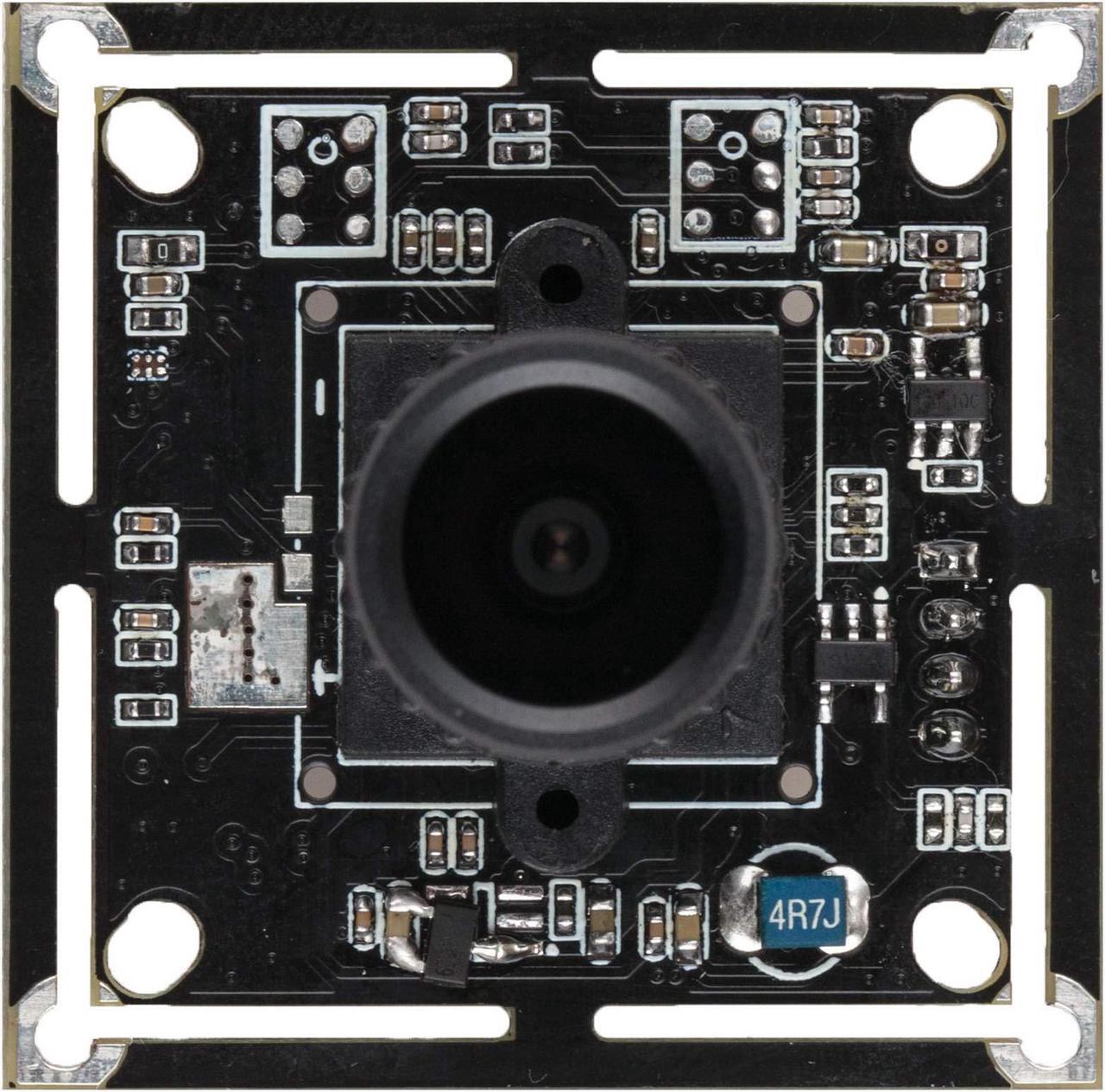

Alt view image 3 of 4 - Spinel 2MP Full HD Low Light WDR H264 USB Camera Module IMX290 with 3.6mm Lens FOV 90 Degree, Support 1920x1080@30fps, UVC Compliant, Support Most OS, Focus Adjustable, P/N: UC20MPG_L36

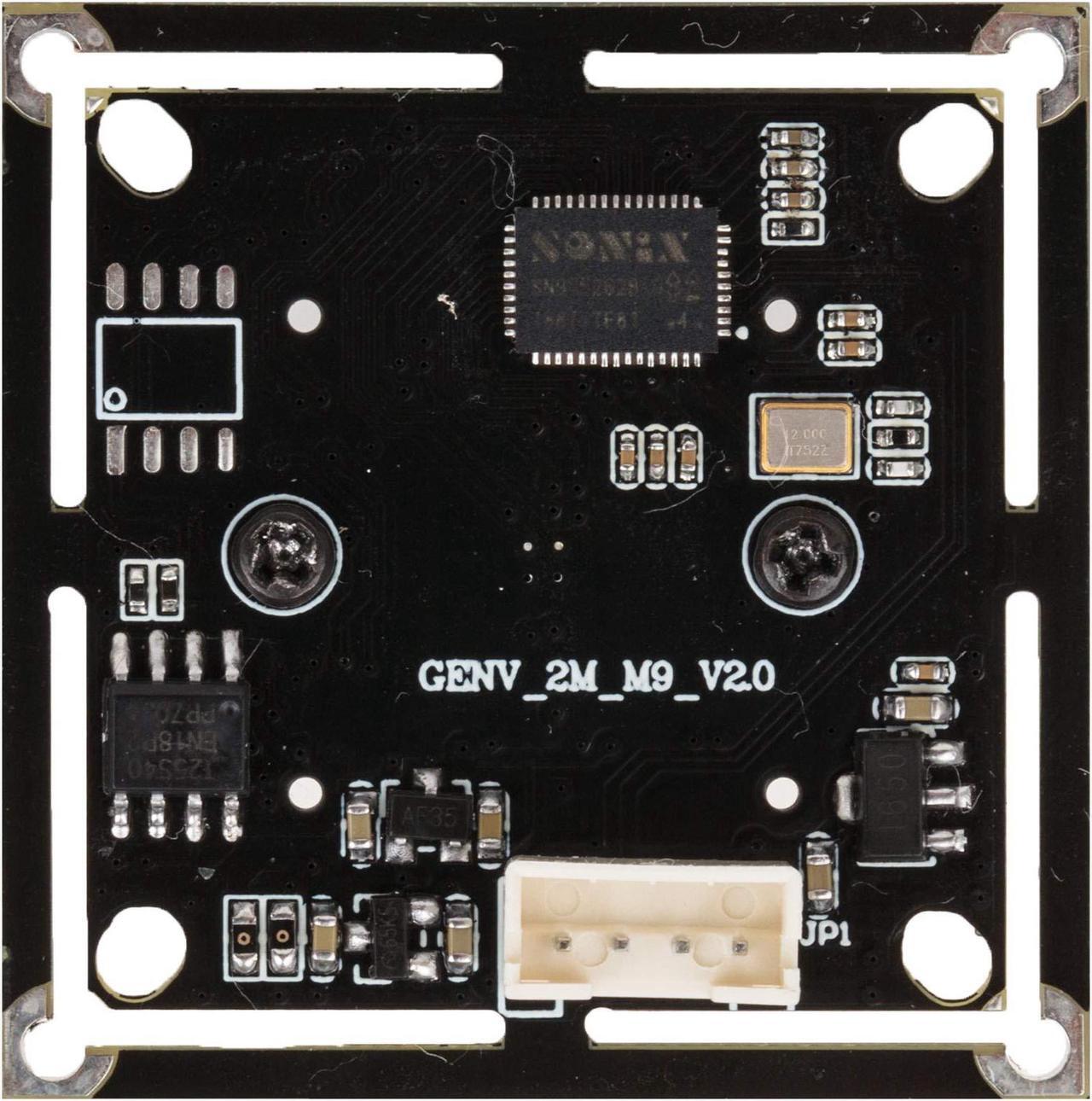

Alt view image 4 of 4 - Spinel 2MP Full HD Low Light WDR H264 USB Camera Module IMX290 with 3.6mm Lens FOV 90 Degree, Support 1920x1080@30fps, UVC Compliant, Support Most OS, Focus Adjustable, P/N: UC20MPG_L36

Shop All Spinel Products | Visit Detail Driven Store

Spinel 2MP Full HD Low Light WDR H264 USB Camera Module IMX290 with 3.6mm Lens FOV 90 Degree, Support 1920x1080@30fps, UVC Compliant, Support Most OS, Focus Adjustable, P/N: UC20MPG_L36

2MP full HD resolution, support 1920x1080@30fps, H. 264, MJPEG, and YUV video streaming.

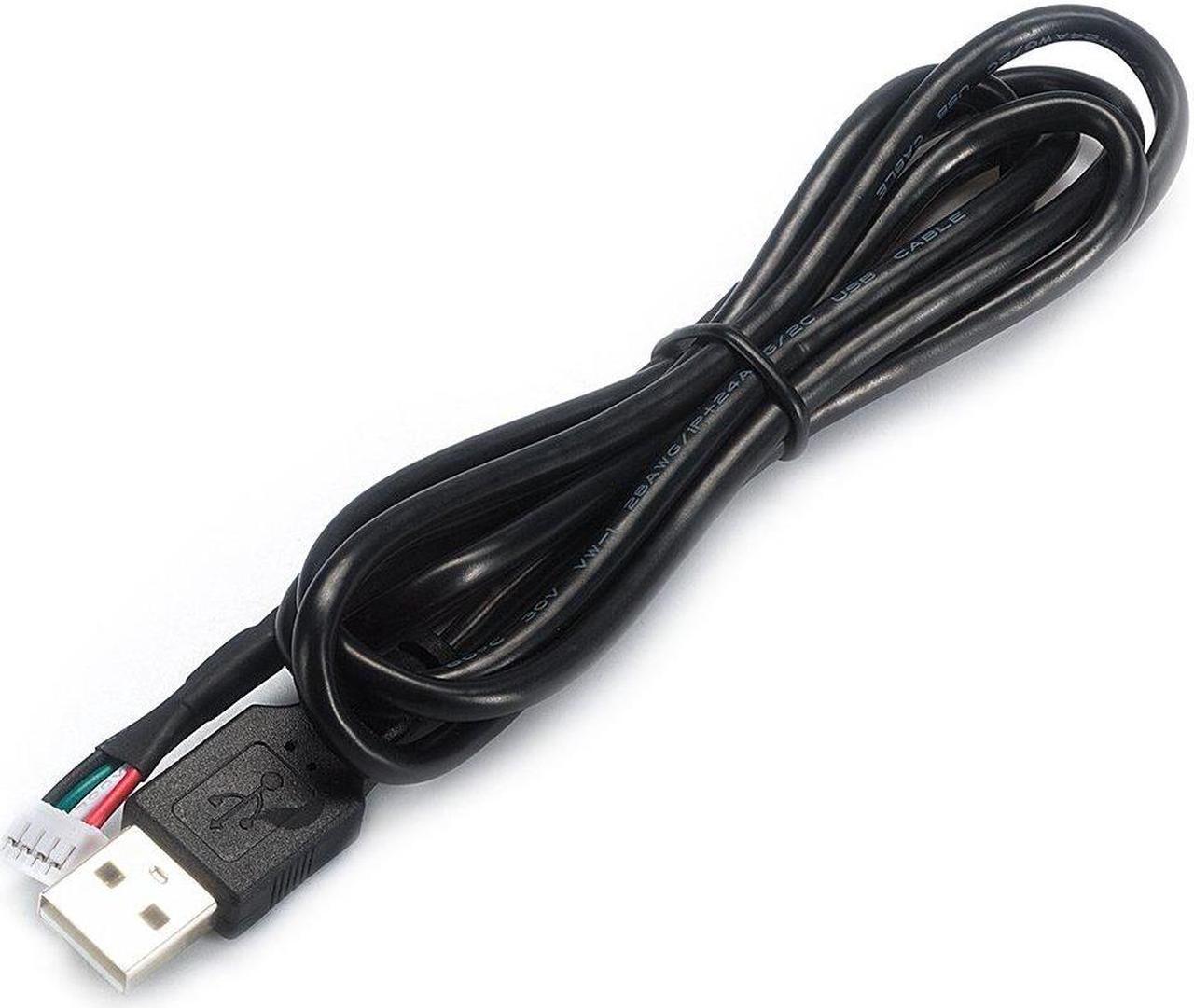

Plug-&-Play (UVC compliant), USB2.0 camera module with USB2.0 cable, cable length 4ft(1.2M).
3.6mm lens with IR-cut filter @ 650nm for true color day images/videos (Does not work with 850nm IR illumination), viewing angle 90 degree Horizontal, focus adjustable, focus range: 20mm to Infinity.
Supported OS: Win 7/8/10, Linux, Mac, Wince and Andriod with UVC. Size: 38x38mm (mount compatible with 32 x 32mm), weight: 12g(0.4OZ).

Overview

Specs

Reviews

For more details check out www. spinelelectronics. com. For questions, technical support and custom orders, please email us at info@spinelelectronics. com or call 1-800-837-5859.

Image Sensor: 1/ 2.8 ''
CMOS Sony IMX290 Pixel Size: 2.9 mm x 2.9 mm
Resolution: 2 MP FULL HD 1920 (H) X 1080 (V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to
Infinity Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate: 320X240 QVGA MJPEG/H264 @30fps YUV2 @30fps 640X480 VGA MJPEG/H264 @30fps YUV2 @30fps 1280X720 HD MJPEG/H264 @30fps N/A 1920X1080 FHD MJPEG/H264 @30fps
N/A Minimum Illumination: 0.002
Lux WDR: 63db
Lens: Default 3.6 mm lens for 90 degree FOV. For other Custom options, please
contact us: 2.1 mm, 2.8 mm, 6mm, 8mm, 12mm, 16mm, 25mm, 100 degree FOV non-distortion lens, Pin-hole 2.8 mm, 3.7 mm, 4.3 mm lens, 185 Degree Fisheye, CS lens and others upon request
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0 mm socket, USB BUS Power.
Cable Length: Default 4ft ( 1.2M ) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux- 2.6. 26 or later), MAC-OS X 10.4. 8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (+-5%), 150~200mA. Operating Temp.: -4degF~167degF (-20degC~+75degC). Storage Temp.: -40degF~185degF (-40degC~+125degC)
Dimension: 38mmx 38mm (Mount compatible with 32 x 32mm)
Weight: 12g ( 0.4OZ )
