HiLetgo ESP32 V3 LoRa V3 SX1262 0.96 inch OLED Display Development Board WiFi Bluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart Home WiFi LoRa 32(Unsoldered)
- Microprocessor: ESP32-S3FN8 dual-core processor, frequency up to 240 MHz
- SX1262 LoRa node chip.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system
- Onboard 0.96-inch 128*64 dot matrix OLED display
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HiLetgo ESP32 LoRa V3 SX1262 0.96 inch OLED Display Development Board WIFI Bluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart WIFI LoRa 32
Description:
This product is based on the WIFI Kit 32 added SX1262 chip, that is, LoRa remote modem, 868MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 3.6K m).
Onboard 32MByte Flash, Wi-Fi antenna, 0.96 -inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.
Specification:
Operating voltage: 3.3V to 7V
Operating temperature range: -40 deg C to + 90 deg C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps 11n HT40, 72 Mbps 11n HT20, 54 Mbps 11g, 11 Mbps 11b
Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n
Receiver sensitivity up to - 139 dBm
UDP continues to throughput by 135 Mbps

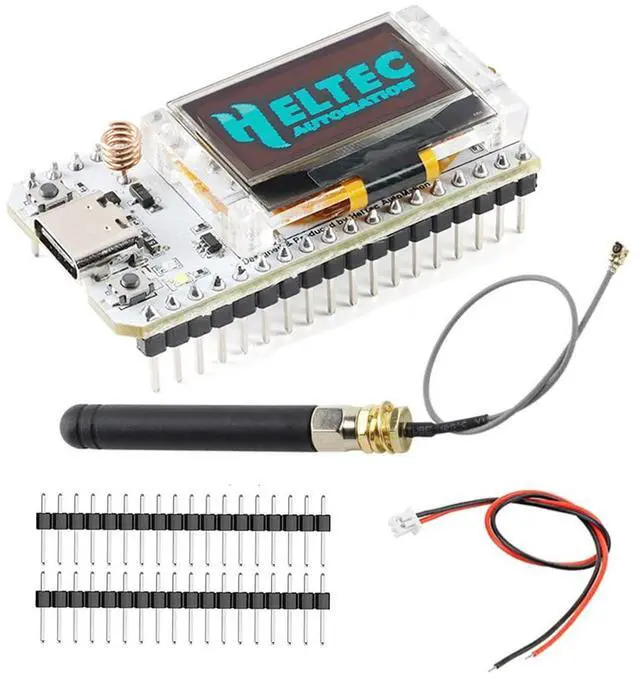

Package Including:
1 * ESP32 LoRa V3 Development Board with OLED display
1 * 863-928MHz Antenna
1 * Pin sticker
2 * Pin headers
Description:
This product is based on the WIFI Kit 32 added SX1262 chip, that is, LoRa remote modem, 868MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 3.6K m).
Onboard 32MByte Flash, Wi-Fi antenna, 0.96 -inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.
Specification:
Operating voltage: 3.3V to 7V
Operating temperature range: -40 deg C to + 90 deg C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps 11n HT40, 72 Mbps 11n HT20, 54 Mbps 11g, 11 Mbps 11b
Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n
Receiver sensitivity up to - 139 dBm
UDP continues to throughput by 135 Mbps
Package Including:
1 * ESP32 LoRa V3 Development Board with OLED display
1 * 863-928MHz Antenna
1 * Pin sticker
2 * Pin headers
