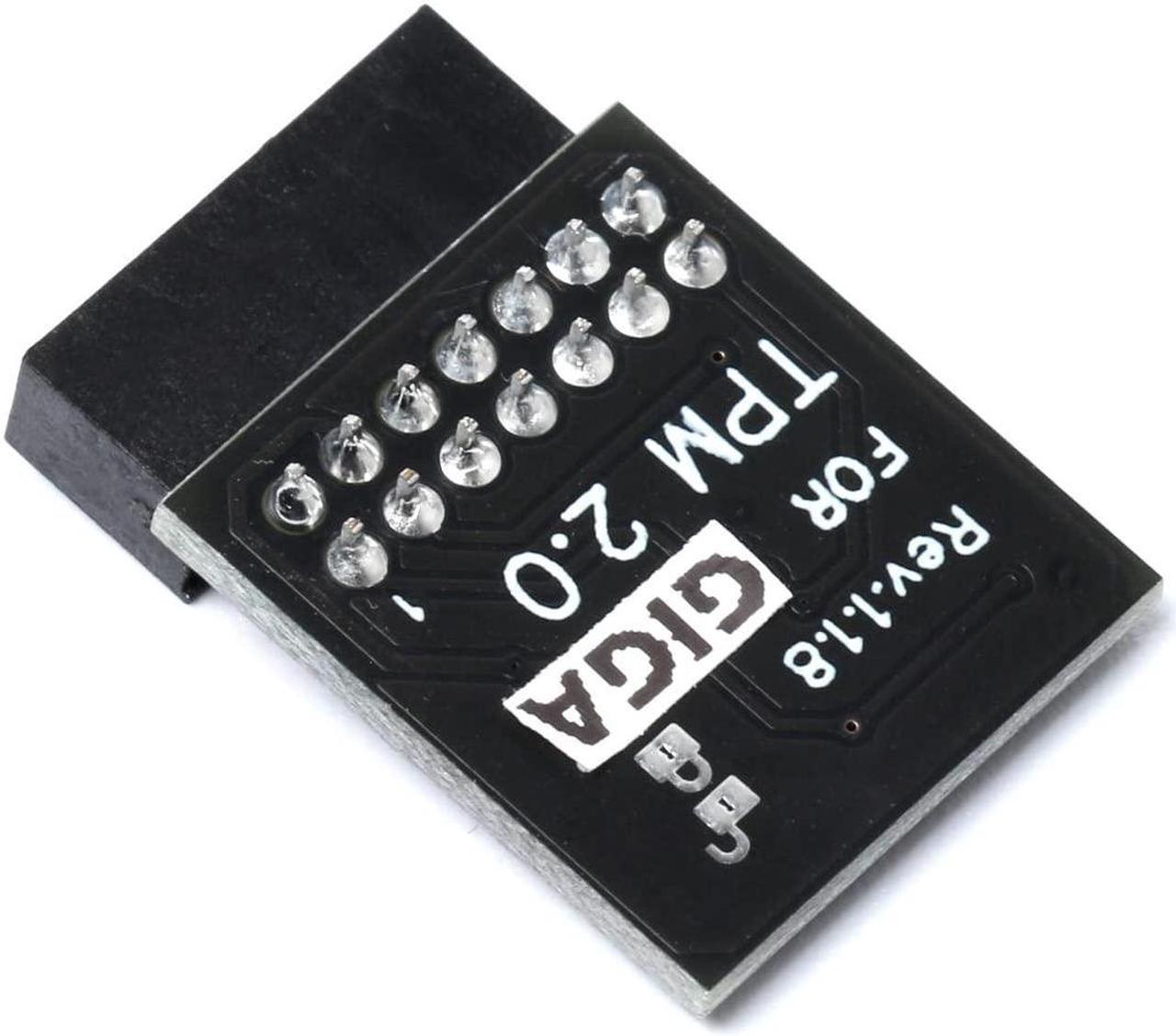

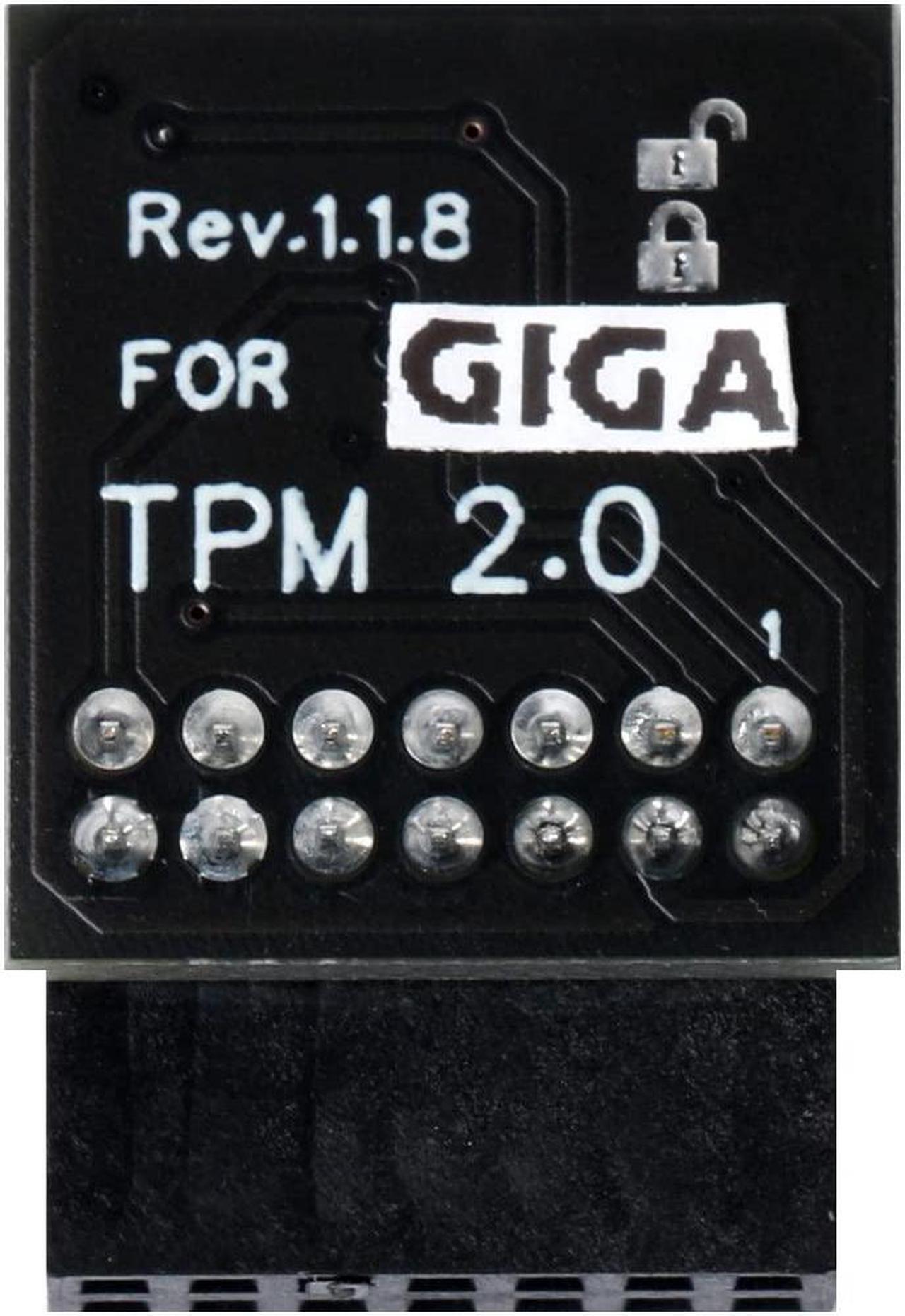

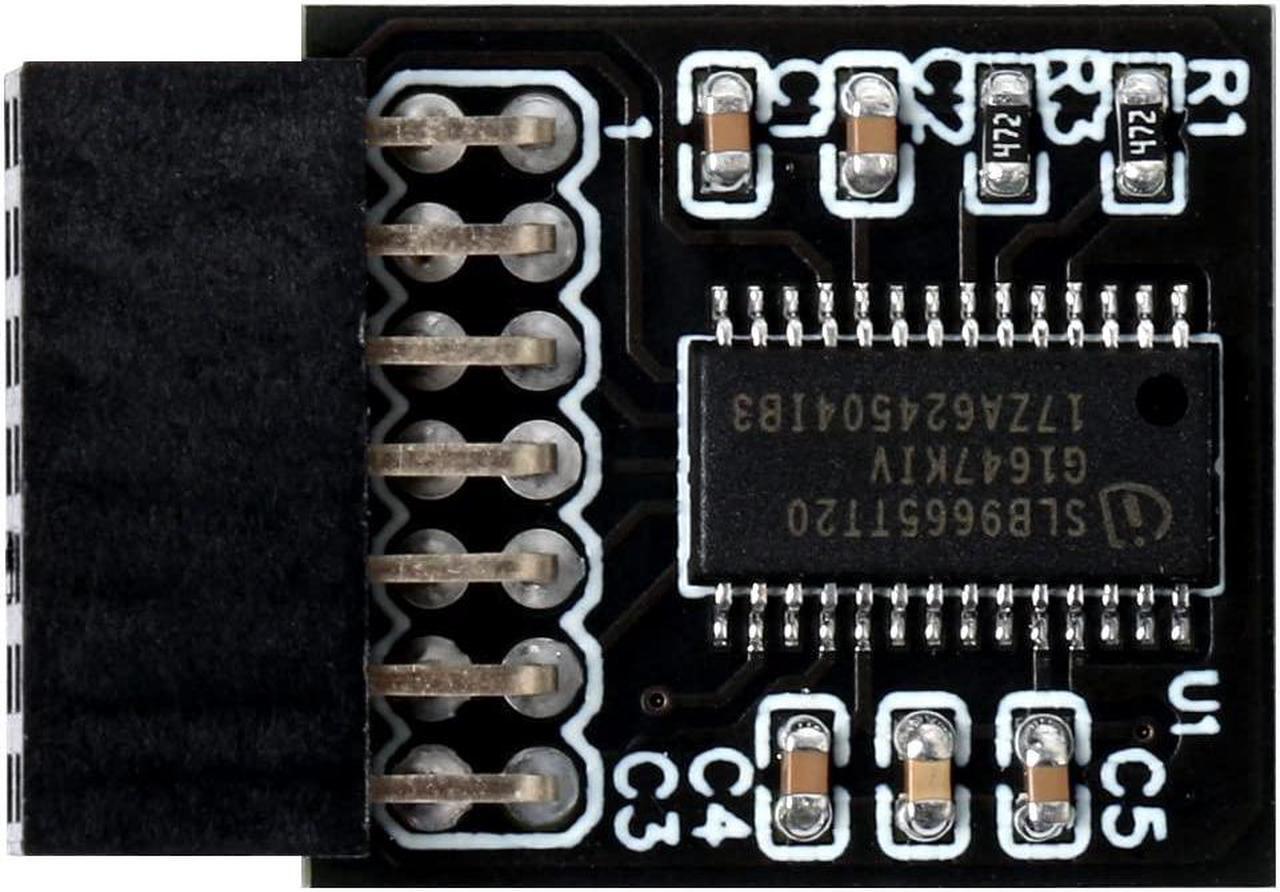

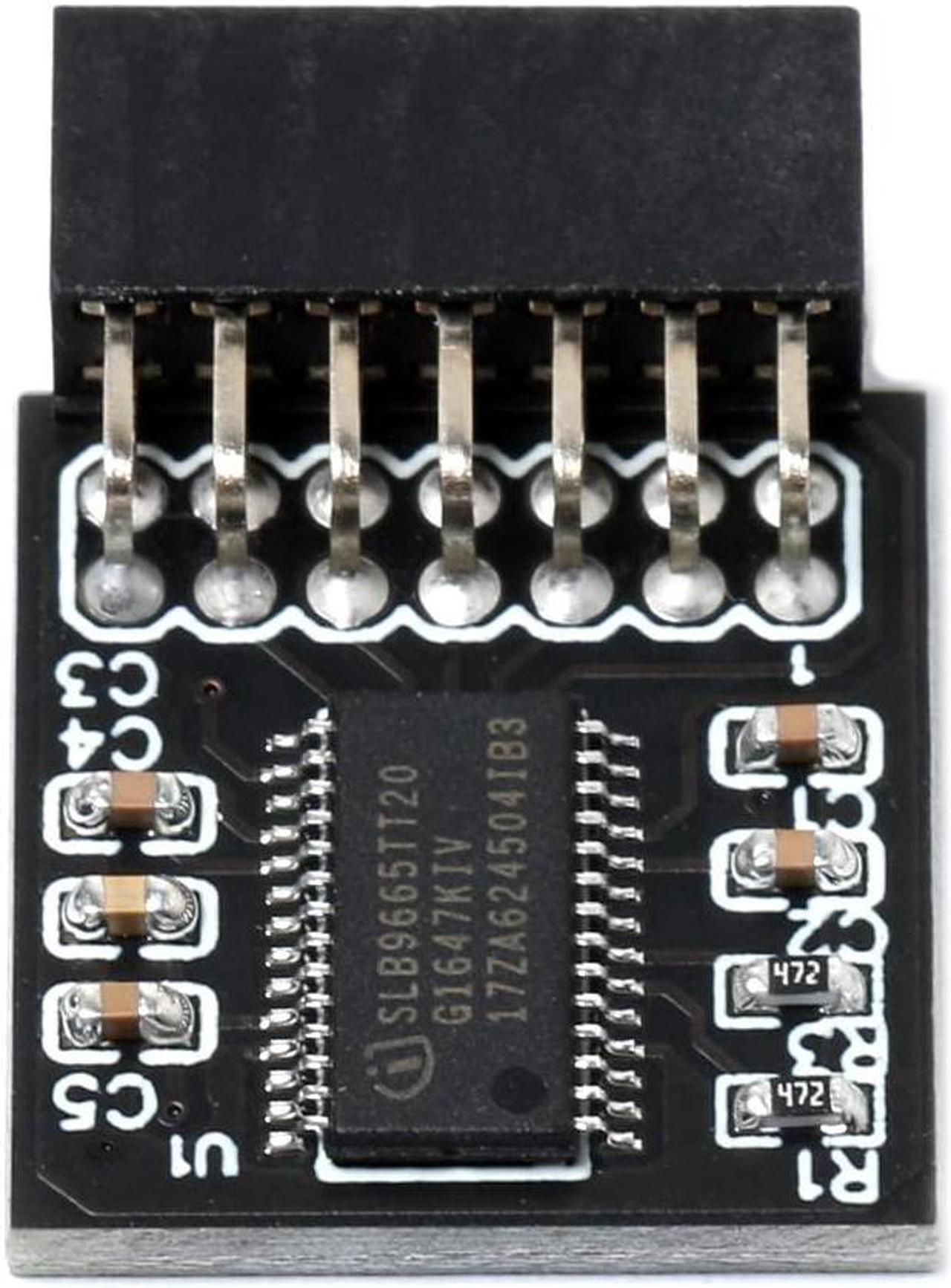

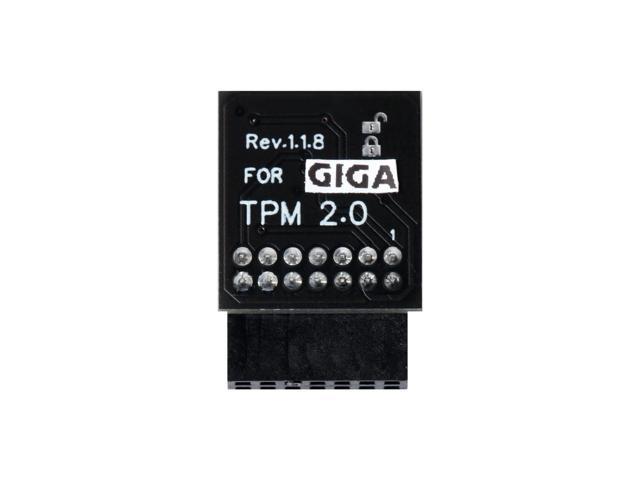

Replacement TPM 2.0 Security Module LPC 14Pin(14pin-1) Security Module for GIGABYTE GC-TPM20 Platform Accessories
- High quality for professional use, the functions are the same as the original one
- Energy-saving and stable, safe and environmentally friendly to use
- Nice replacement security module for the original damaged, old one
- Test before shipping, stable performance for long time use(Please recheck the compatibility before making an order. Some motherboards need to plug in the TPM module or update to the latest BIOS to enable the TPM option)
- Universal suitable for GIGABYTE GC-TPM20 motherboard platform, plz note Only motherboards that support TPM2.0 chips can be used.
+
+
Overview
Specs
Reviews
Package:
1x TPM 2.0 Security Module
Note:
Please recheck the compatibility before making an order. Some motherboards need to plug in the TPM module or update to the latest BIOS to enable the TPM option

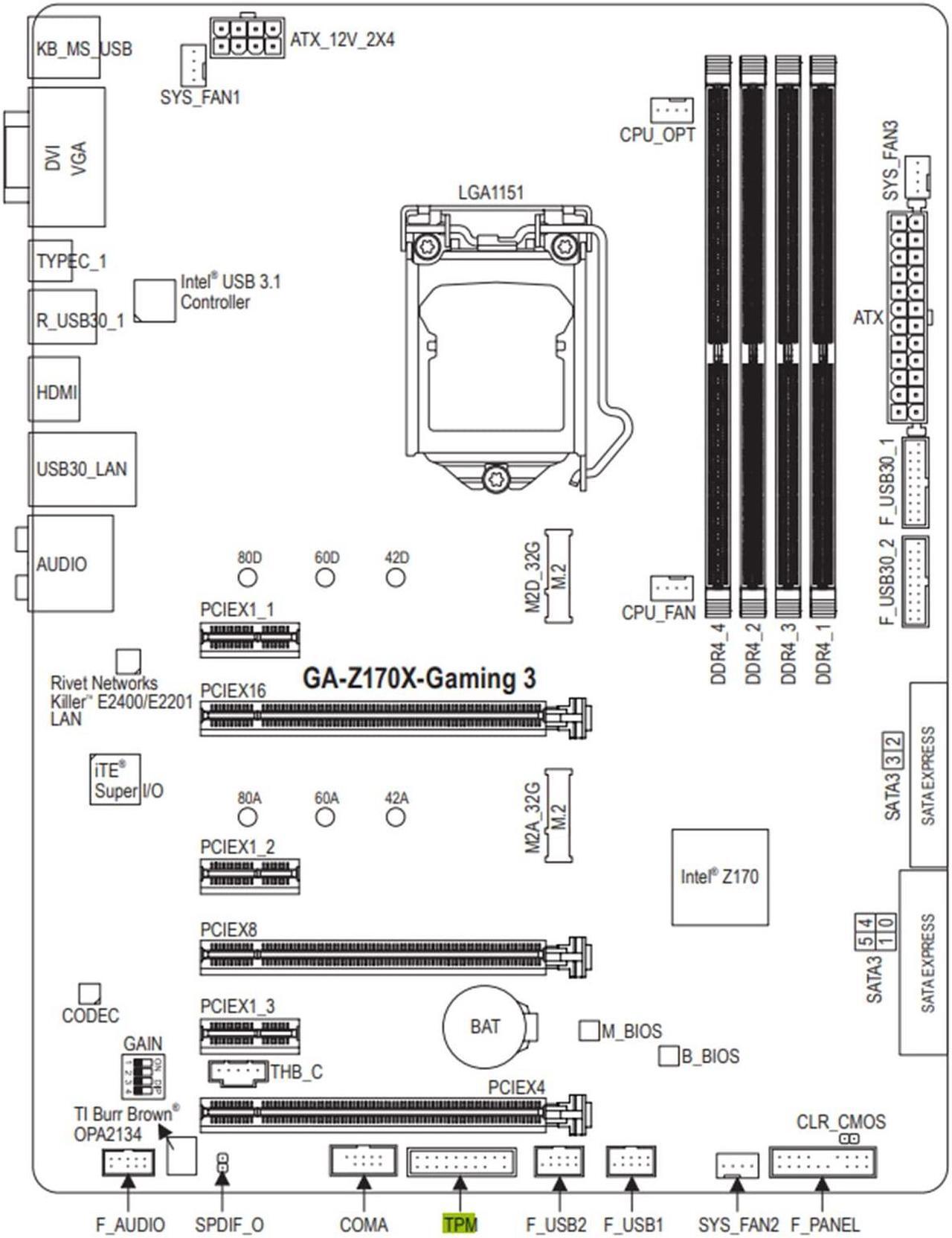

Before inserting the module, please turn off the power and find the position of the pin that marked TPM
LPC interface:
[Key Features]
Compliant to TPM Main Specification, Family " 2.0", Level 00, Revision 01.16
Meets Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform
[Qualification]
Random Number Generator (RNG) according to NIST SP800-90A
Full personalization with Endorsement Key (EK) and EK certificate
Standard (-20.. +85degC) and enhanced temperature range (-40.. +85degC)
Optimized for battery operated devices: low standby power consumption (typ. 150mA)
24 PCRs (SHA-1 or SHA-256)
7206 Byte free NV memory
Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
Up to 8 NV counters
Up to 1 kByte for command parameters and response parameters
Up to 768 Byte for NV read or NV write
1280 Byte I/O buffer
Built-in support by Linux Kernel Version 3.10 and higher
1x TPM 2.0 Security Module
Note:
Please recheck the compatibility before making an order. Some motherboards need to plug in the TPM module or update to the latest BIOS to enable the TPM option
Before inserting the module, please turn off the power and find the position of the pin that marked TPM
LPC interface:
[Key Features]
Compliant to TPM Main Specification, Family " 2.0", Level 00, Revision 01.16
Meets Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform
[Qualification]
Random Number Generator (RNG) according to NIST SP800-90A
Full personalization with Endorsement Key (EK) and EK certificate
Standard (-20.. +85degC) and enhanced temperature range (-40.. +85degC)
Optimized for battery operated devices: low standby power consumption (typ. 150mA)
24 PCRs (SHA-1 or SHA-256)
7206 Byte free NV memory
Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
Up to 8 NV counters
Up to 1 kByte for command parameters and response parameters
Up to 768 Byte for NV read or NV write
1280 Byte I/O buffer
Built-in support by Linux Kernel Version 3.10 and higher
