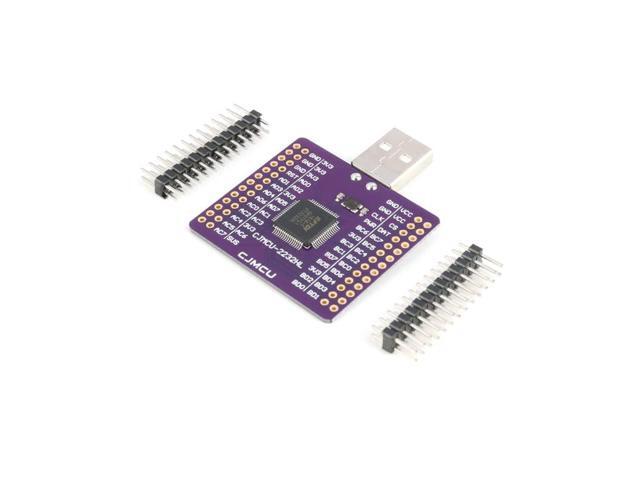

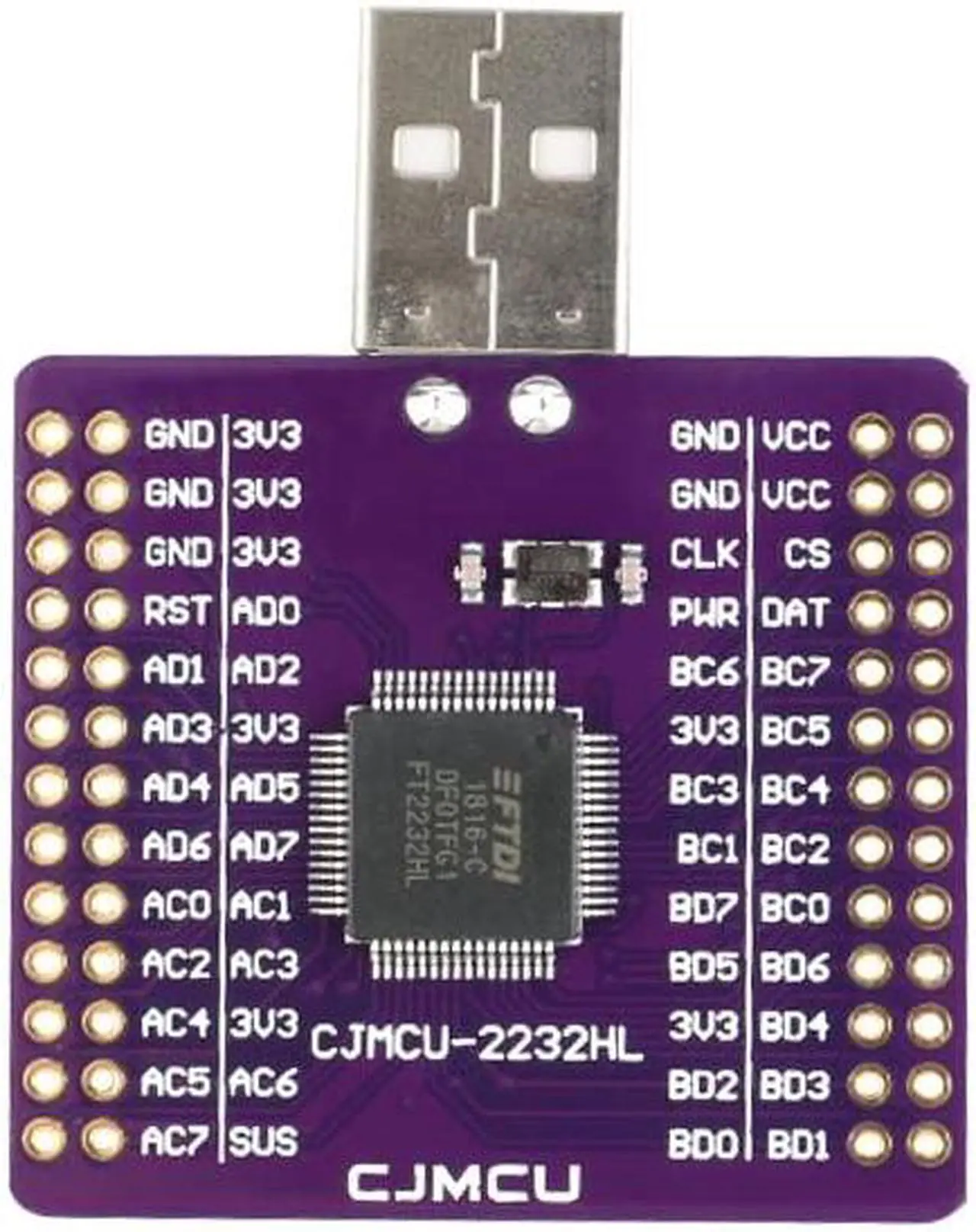

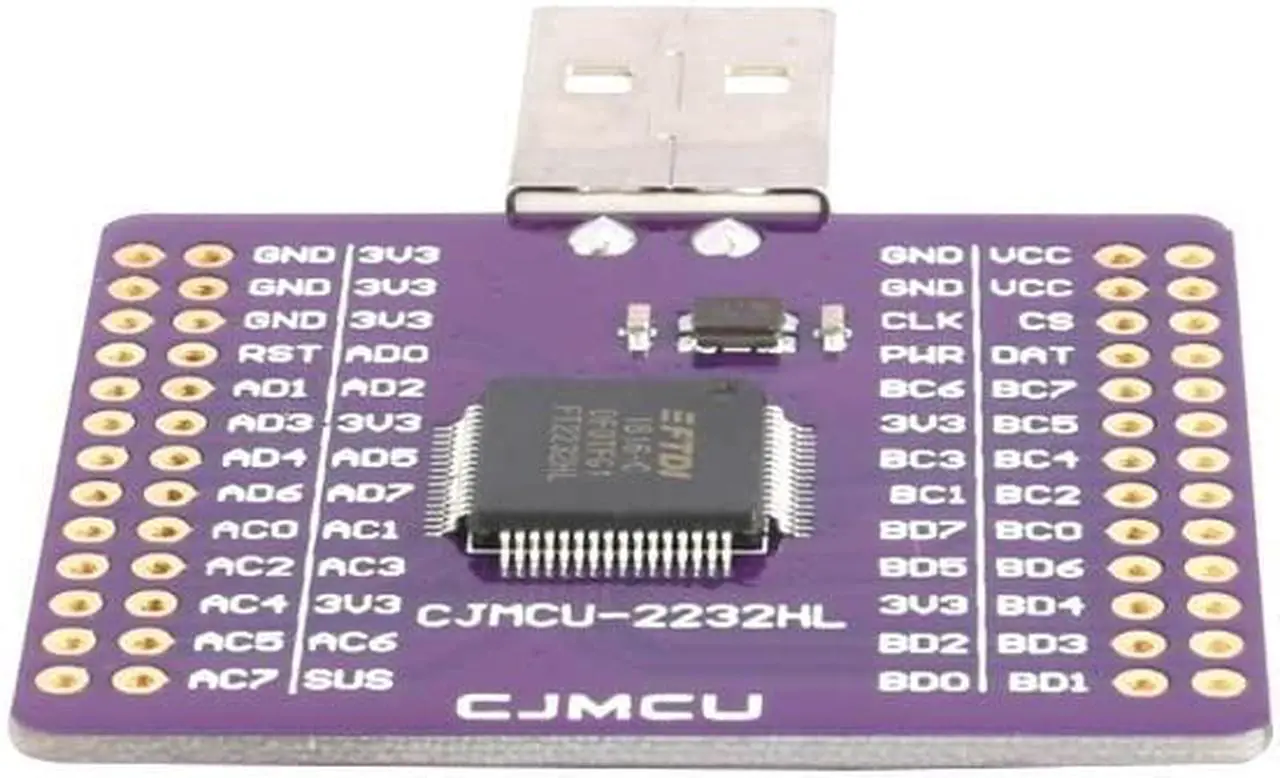

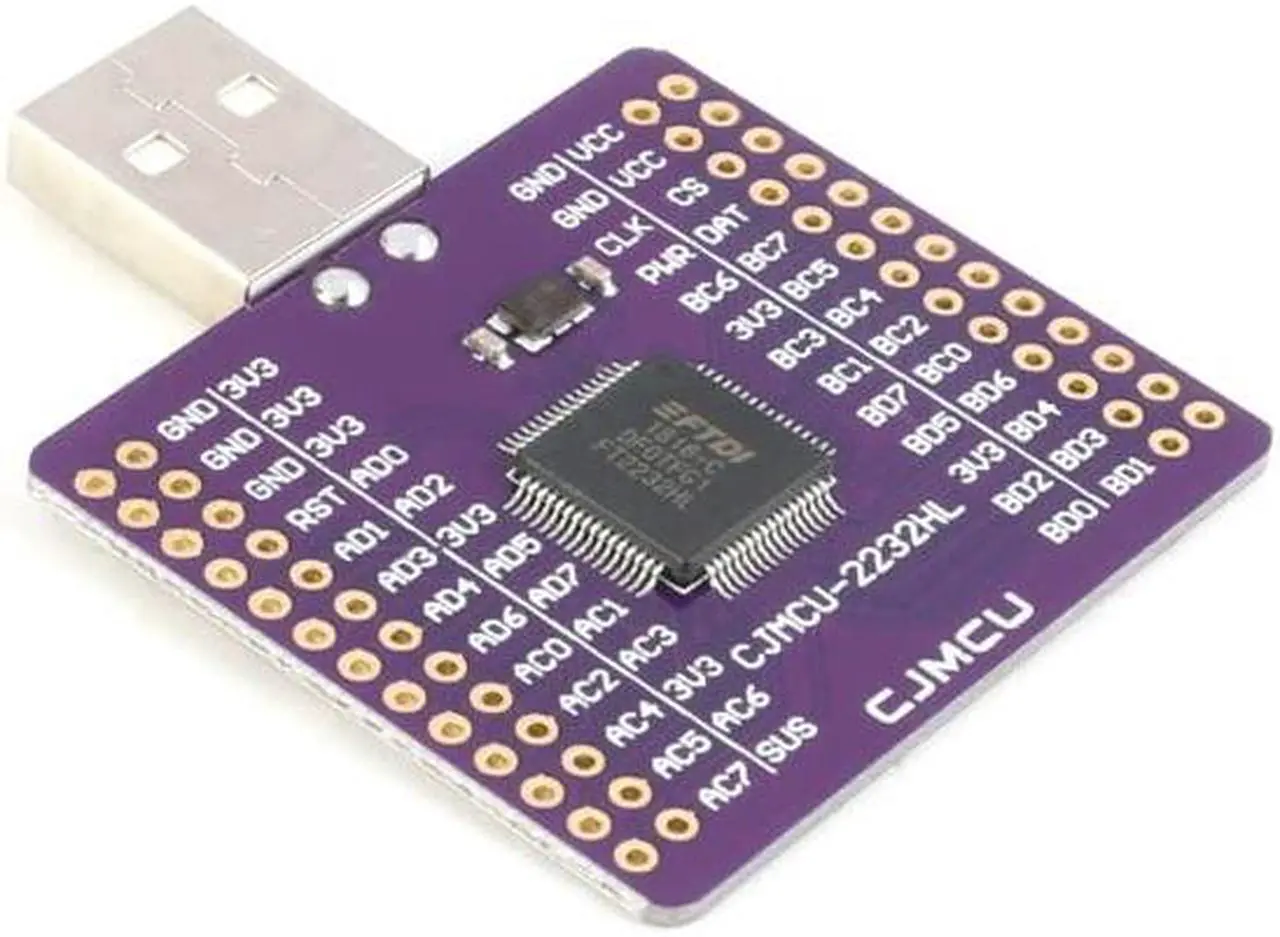

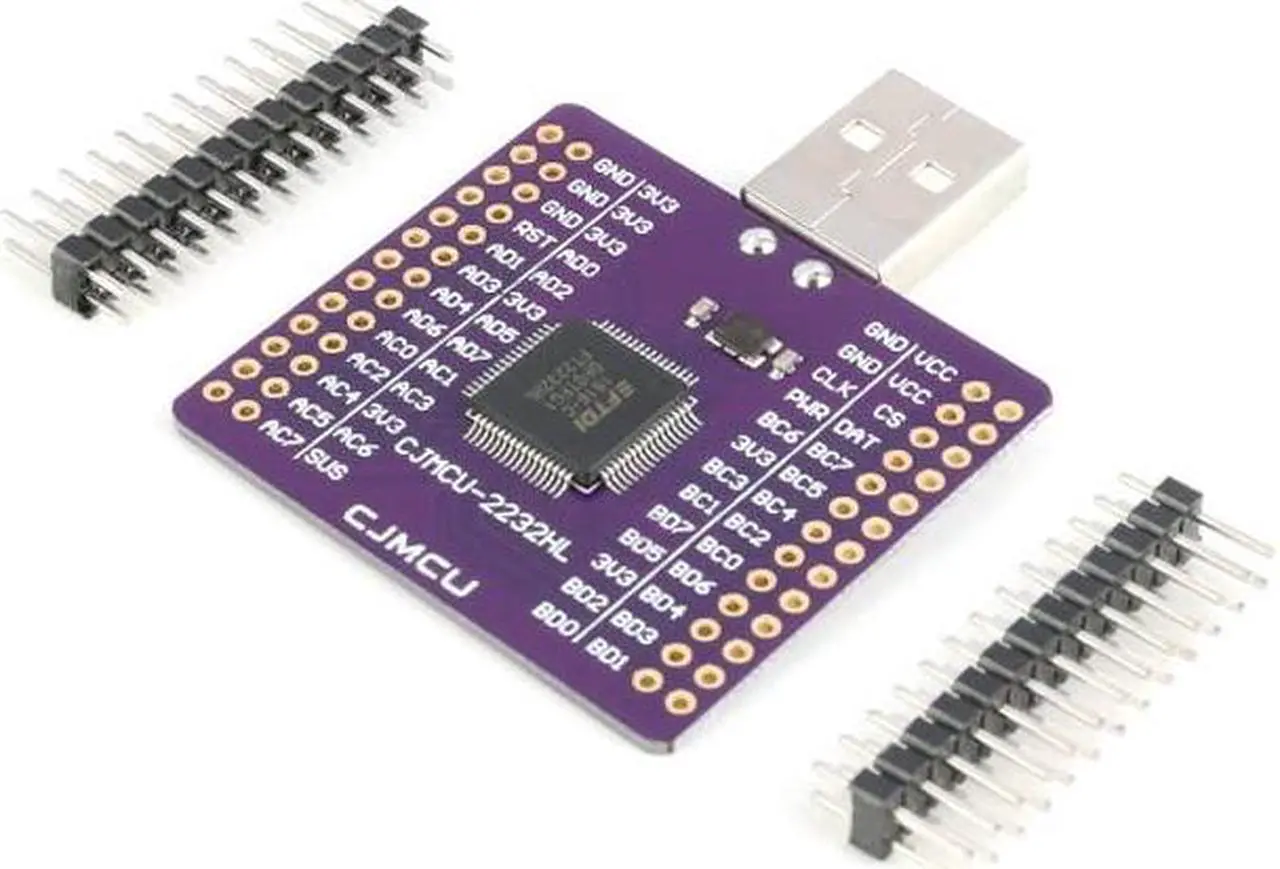

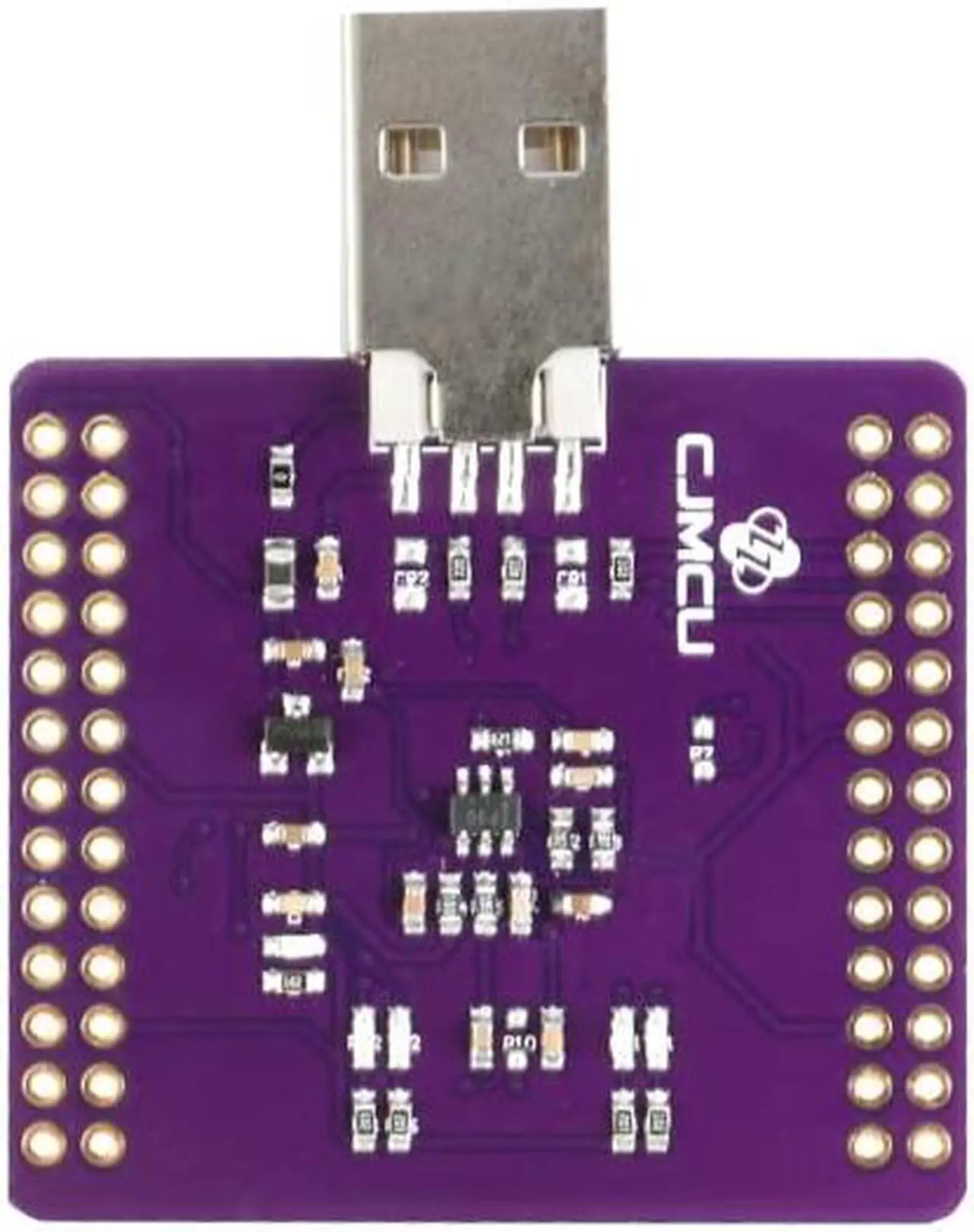

JESSINIE FT2232HL Dual Channel UART Module USB to Serial Adapter USB to UART USB to FIFO SPI I2C JTAG RS232 RS422 RS485 Module Compatible with UHCI OHCI EHCI Host Controller Dual Channel Module
- The FT2232H USB to Serial Adapter Single chip USB to dual serial / parallel ports with a variety of configurations, Entire USB protocol handled on the chip. No USB specific firmware programming required.
- USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
- Dual Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design, Dual independent UART or FIFO or MPSSE ports.
- Independent Baud rate generators, RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter), USB to parallel FIFO transfer data rate up to 8 Mbyte/Sec.
- Single channel synchronous FIFO mode for transfers upto 40 Mbytes/Sec, CPU-style FIFO interface mode simplifies CPU interface design, MCU host bus emulation mode configuration option, Fast Opto-Isolated serial interface option.
+
+
Overview
Specs
Reviews
FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Adjustable receive buffer timeout.
Option for transmit and receive LED drive signals on each channel.
Enhanced bit-bang Mode interface option with RD# and WR# strobes FT245B-style FIFO interface option with bidirectional data bus and simple 4 wire handshake interface.
Highly integrated design includes + 1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz -480MHz).
Asynchronous serial UART interface option with full hardware handshaking and modem interface signals.
Fully assisted hardware or X-On / X-Off software handshaking.
UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
Auto-transmit enable control for RS485 serial applications using TXDEN pin.
Operational configuration mode and USB Description strings configurable in external EEPROM over the USB interface.
Configurable I/O drive strength (4, 8, 12 or 16mA) and slew rate.
Low operating and USB suspend current.
Supports bus powered, self-powered and high power bus powered USB configurations.
UHCI/OHCI/EHCI host controller compatible.
USB Bulk data transfer mode (512 byte packets in High Speed mode). + 1.8V (chip core) and + 3.3V I/O interfacing (+5V Tolerant).
Extended -40degC to 85degC industrial operating temperature range.
+ 3.3V single supply operating voltage range.
ESD protection for FT2232H IO's:
Human Body Model (HBM) +-2kV,
Machine Mode (MM) +-200V,
Charge Device Model (CDM) +-500V,
Latch-up free.
Adjustable receive buffer timeout.
Option for transmit and receive LED drive signals on each channel.
Enhanced bit-bang Mode interface option with RD# and WR# strobes FT245B-style FIFO interface option with bidirectional data bus and simple 4 wire handshake interface.
Highly integrated design includes + 1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz -480MHz).
Asynchronous serial UART interface option with full hardware handshaking and modem interface signals.
Fully assisted hardware or X-On / X-Off software handshaking.
UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
Auto-transmit enable control for RS485 serial applications using TXDEN pin.
Operational configuration mode and USB Description strings configurable in external EEPROM over the USB interface.
Configurable I/O drive strength (4, 8, 12 or 16mA) and slew rate.
Low operating and USB suspend current.
Supports bus powered, self-powered and high power bus powered USB configurations.
UHCI/OHCI/EHCI host controller compatible.
USB Bulk data transfer mode (512 byte packets in High Speed mode). + 1.8V (chip core) and + 3.3V I/O interfacing (+5V Tolerant).
Extended -40degC to 85degC industrial operating temperature range.
+ 3.3V single supply operating voltage range.
ESD protection for FT2232H IO's:
Human Body Model (HBM) +-2kV,
Machine Mode (MM) +-200V,
Charge Device Model (CDM) +-500V,
Latch-up free.
