Wekuant Preshrunk OD2.5mm Fiber Optic Fusion Splice Protection Sleeves 61mm Clear, Heat shrinking tube -800Pcs with box
- OD2.5mm after heat shrinking, length: 61mm. The sleeves are applied in nearly all branches optic fibers engineering. They are used to secure connections in fiber optic splice closures as well as 19" rack fiber optical distribution panels, stand and wall box.

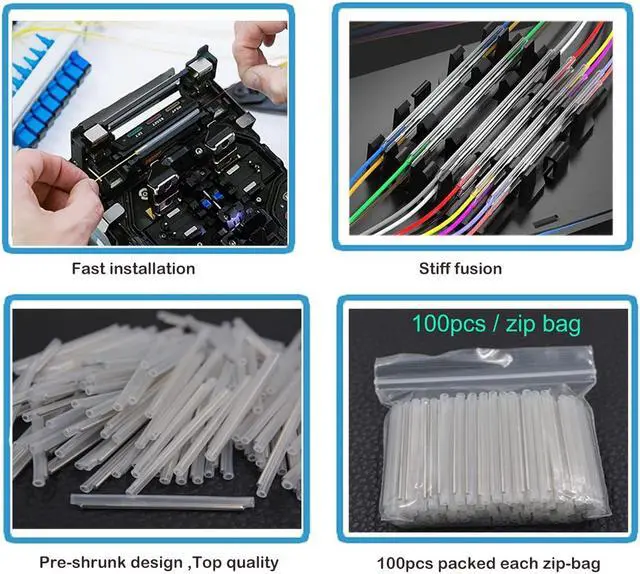

- High quality First class preshrunk Fiber splice sleeves. This preshrunk configuration design can make the single holed ends eliminates improper fiber threading, and steel needle never fall out.

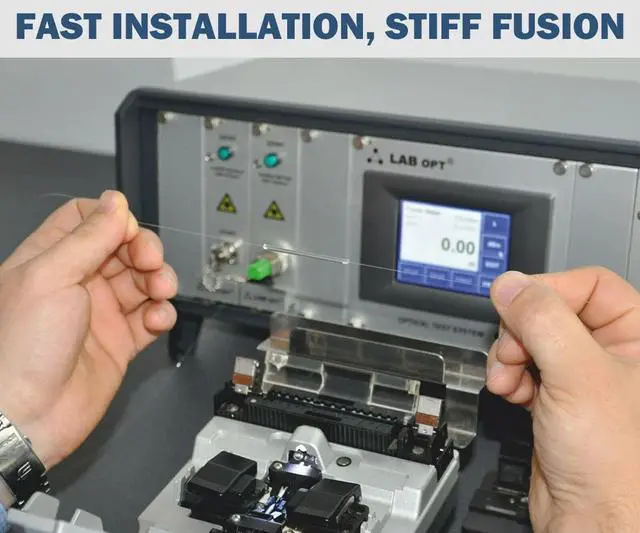

- Stiffness of connection and quickness of assembly (below 60s) are the main advantages of this solution. shrinking faster than commonly available sleeves. The reduced shrinkage time results in many more splices in same battery capacity of splicing machine saving valuable time and money. This feature is of critical importance in field where the technician may have to come back to re-charge batteries.
- Use 304 high grade stainless steel for Strength member, and is ground at the edges before polishing to make it completely burr
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
1.
Whole length: 61mm
2.
Outer diameter after recovery: OD 2.5 mm +/- 0.1 mm
3.
Hole diameter before recovery: OD 1.5 mm
4.
Stainless steel needles diameter: OD 1.2 mm
5.
Minimum installation (shrinking) temperature: 110degC
6.
Max installation time: 60 seconds
7.
Standard color: Clear
8.
Low Temperature property: No crackle at -55degC lasting 4 hours
9. RoHS compliant
10.
Packing: 100pcs packed to one zip-bag
