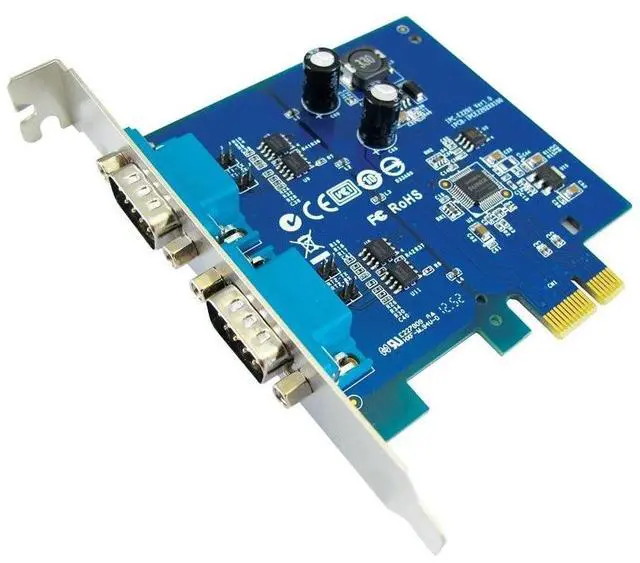

SUNIX 2-Port RS-422/485 PCI-E Card(2KV IEC Surge)(DB9)(IPC-E2202S)

SUNIX IPC-E2202S, Industrial 2-port RS-422/485 with Surge PCI-Express Serial Card, allows users to expand two RS-422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. SUNIX IPC-E2202S board is provided with 2KV IEC6100-4-5 Level 3 Surge Suppressor and 15KV IEC61000-4-2 ESD Discharge Transceiver. Besides, board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX.

It is the best serial communicating solution for industrial and harsh environment applications. Expands 2 independent RS-422/485 serial ports with communication speeds up to 921.6K bps. With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller. Designed to meet PCI Express Base Specification Revision 2.0. RS-422 and RS-485 auto detect and switching technology jumper and software free. AHDC/CS technology for collision free communication. On-chip hardware auto flow control to guarantee no data loss. Ultra low power consumption design for Green Environment. 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.

2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3 standard. Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS OS.
