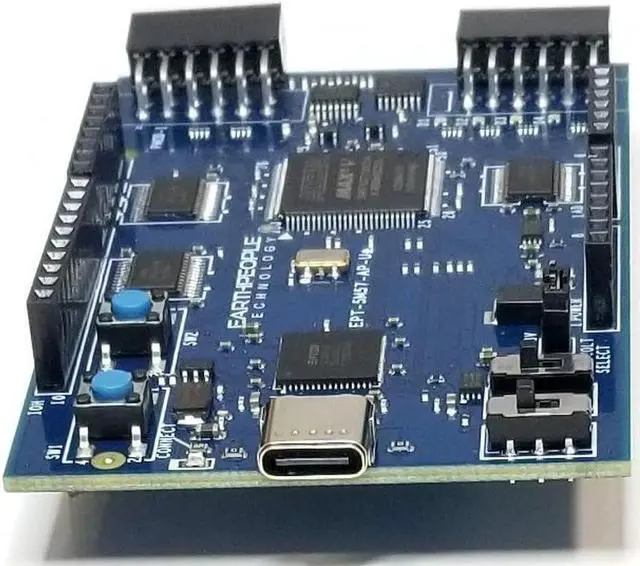

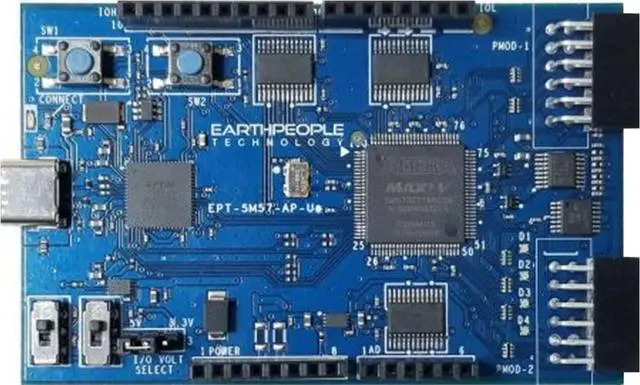

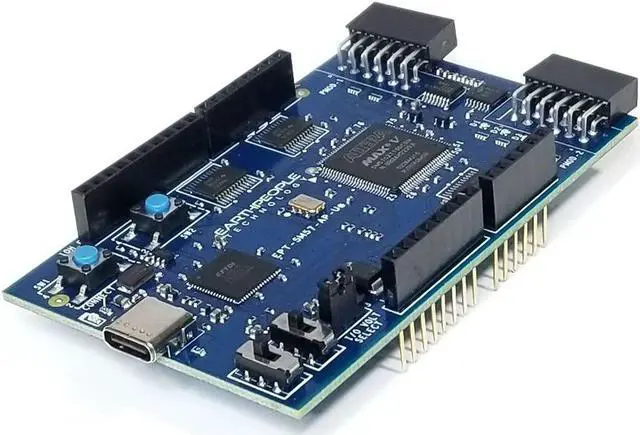

Altera MAX V CPLD Development Board - UnoProLogic
- Altera 5M570 CPLD with 440 MacroCells. Full Open Source software allows the user to create unique projects for specific applications. Detailed user manual and data sheet describes the board.
- The MAX V CPLD is a great chip to learn programmable logic with. The MAX V is a complete chip programmed using JTAG. The chip can be re-programmed thousands of times making it perfect for development projects. The UnoProLogic board comes complete with all regulators, oscillators and connectors to provide a complete development system for beginners.
- On Board Four Channel ADC with 300KB/sec Sample Rate. Inputs/Outputs: 24 -- 5 Volt tolerant. I/O's are protected with 74LVCH4245 8-Bit Bus transceivers. USB Interface: 480 Mbps data transfers. User code will transparently connect with the ActiveHost API running on the Windows API. All software is Open Source
- JTAG Programmer: The 5M570 is programmed by the FT2232H Chip Through the Quartus Software
- Complete Development Kit with tutori
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

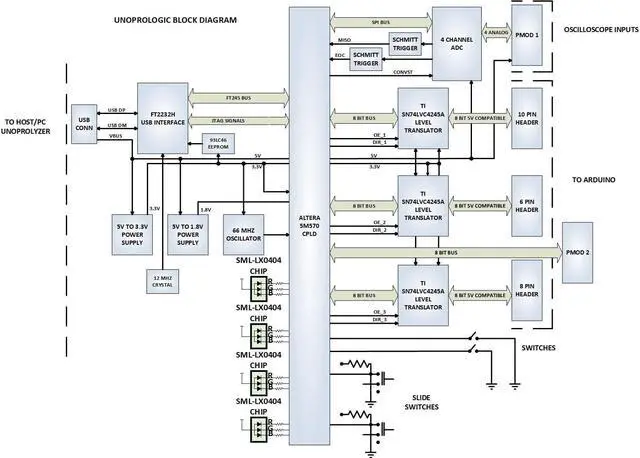

The EPT USB-CPLD development system provides a flexible learning platform by combining a powerful Complex Programmable Logic Device with High Speed USB.
It is designed to provide an innovative method of developing and debugging programmable logic code.
It provides a high speed data transfer mechanism between any microcontroller (or any digital device) and a host PC.
The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Alteras Quartus II software.
The user will develop the code in the Quartus environment on a Windows Personal Computer.
The programmable logic code is then loaded into the CPLD using only the Quartus Programmer software and a standard USB cable.
The programmer hardware is built in to the UnoProLogic.
The ActiveHost API provides a highly configurable communications interface between CPLD and host PC.
It connects transparently to the Active Transfer Library running inthe CPLD code.

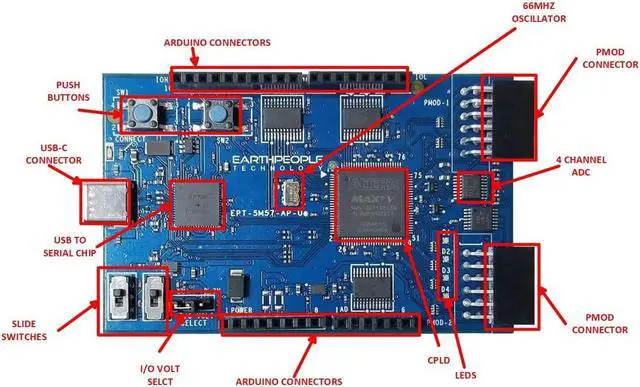

Altera 5M570 CPLD
24 Inputs/Outputs compatible with 5 Votls
Four Green LEDs
Two push button switches
4 Channel ADC with 300KS/s
It is designed to provide an innovative method of developing and debugging programmable logic code.
It provides a high speed data transfer mechanism between any microcontroller (or any digital device) and a host PC.
The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Alteras Quartus II software.
The user will develop the code in the Quartus environment on a Windows Personal Computer.
The programmable logic code is then loaded into the CPLD using only the Quartus Programmer software and a standard USB cable.
The programmer hardware is built in to the UnoProLogic.
The ActiveHost API provides a highly configurable communications interface between CPLD and host PC.
It connects transparently to the Active Transfer Library running inthe CPLD code.
Altera 5M570 CPLD
24 Inputs/Outputs compatible with 5 Votls
Four Green LEDs
Two push button switches
4 Channel ADC with 300KS/s
