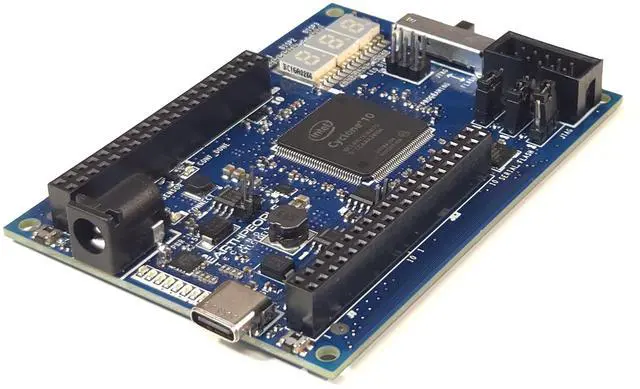

Main image of Cyclone 10 FPGA Development Board - CycloFlex

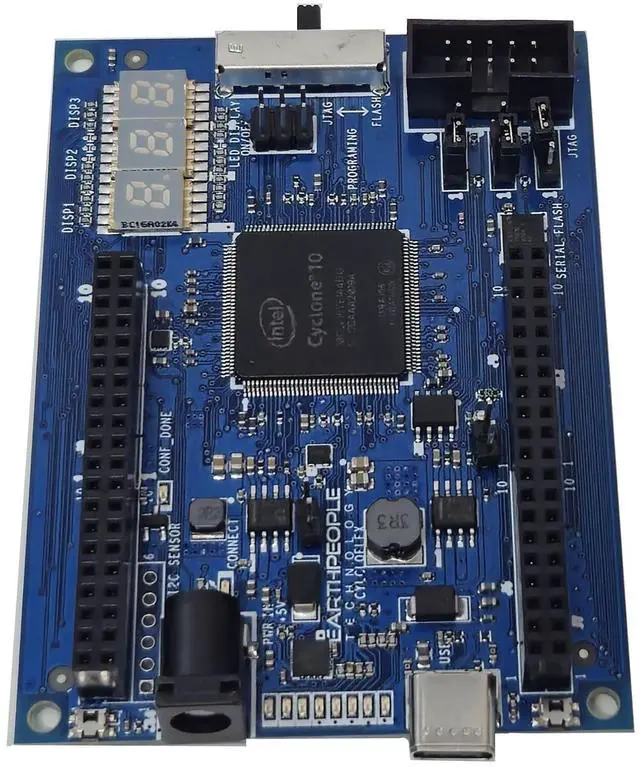

Alt view image 2 of 5 - Cyclone 10 FPGA Development Board - CycloFlex

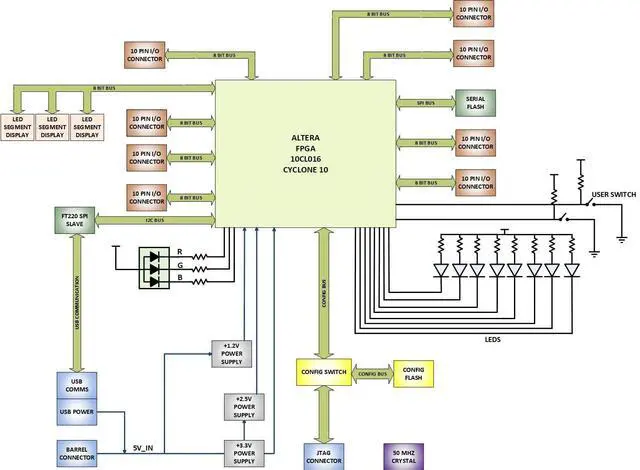

Alt view image 3 of 5 - Cyclone 10 FPGA Development Board - CycloFlex

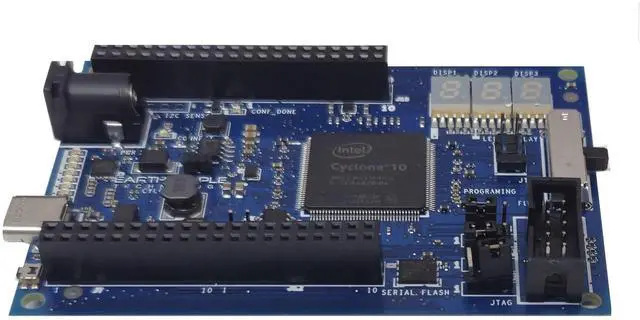

Alt view image 4 of 5 - Cyclone 10 FPGA Development Board - CycloFlex

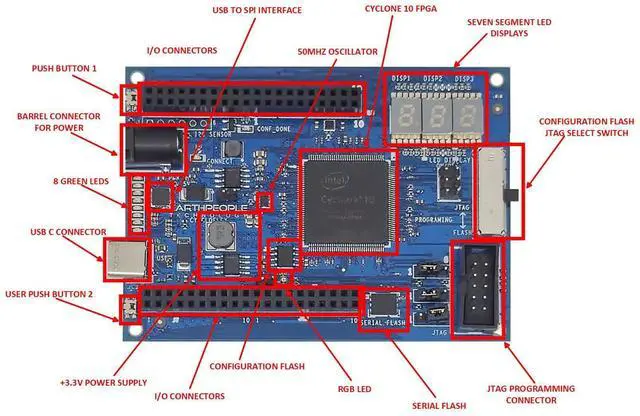

Alt view image 5 of 5 - Cyclone 10 FPGA Development Board - CycloFlex

Shop All Earth People Technology Products | Visit To the Internet media Store

Cyclone 10 FPGA Development Board - CycloFlex

Altera 10CL016 FPGA with 16,000 Logic Elements. This FPGA Development Kit requires an external JTAG Programmer. The Cyclone 10 FPGA is a powerful mid-range chip from Altera. It contains 504 Kbits of SRAM Memory. This chip is perfect for implementing soft core processors such as a RISC-V.
The CycloFlex includes Three Seven Segment Displays which are directly drivable from FPGA I/O pins. 65 Inputs/Outputs from the FPGA available at board connectors. There are seven Green User LEDs that can be controlled directly from FPGA pins. One RGB LED is also included. Two Pushbuttons are available for input to user code.
One 50MHz oscillator provides all precision clocking needs on the CycloFlex Board. The FPGA includes four DLL's that provide both frequency multiplier and divider. This provides a broad range for clocking options for user code.
There are two power options for the CycloFlex: USB-C connector or Barrel Connector. The USB-C options allows +5VDC through the USB 2.0 sp

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The CycloFlex is packed with powerful features. The core of the CycloFlex is the Altera Cyclone 10 FPGA. This powerful chip has 16, 000 Logic Elements and 504Kbits of Memory. The board includes a 128Mbit Serial Flash chip which allows the board to store up user code for using the FPGA as RISC V soft processor. There are three Green Seven Segment LED Displays, RGB LED and Eight User LEDs. It allows the creation of more diverse projects than beginner projects.
