HighPoint 8-Port M.2 SSD7140A PCIe Gen3 NVMe RAID Controller for Windows, Mac & Linux Systems.

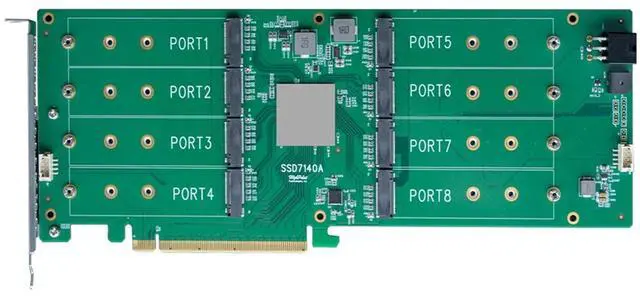

HighPoints SSD7140A high port count (HPC) NVMe RAID controller is ideal for professional applications that require a small-footprint, mass-storage M. 2 NVMe solution that can take full advantage of PCIe 3.0 x16 transfer bandwidth, and deliver over 14, 000MB/s of transfer performance. The SSD7140A doubles M. 2 port count from 4 to eight, and can support up to 32TB of storage capacity. Truly Platform Independent NVMe
RAID Solution: Unlike most NVMe devices in todays marketplace, which are tied to a specific hardware platform or brand of SSD or motherboard, SSD7000 series controllers do not require a hardware environment with Bifurcation support, or any specialized software released by SSD manufacturers; any AMD or Intel motherboard with a dedicated PCIe 3.0 x16 slot can now support up to 8 M. 2 NVMe SSDs, and experience sustained transfer performance in excess of 14GB/s via a single compact PCIe device. Comprehensive 8-Port M. 2 NVMe RAID &
Storage Solution: RAID 1/0 (Security & Speed) - RAID 1/0 (also known as RAID 10) requires a minimum of 4 NVMe SSDs it will mirror the data of one stripe array to a second, hidden stripe array for security. RAID 0 (Speed) this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSDs. RAID 1 (Security) - This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSDs to configure. Ultra-Efficient, Multi-Stage

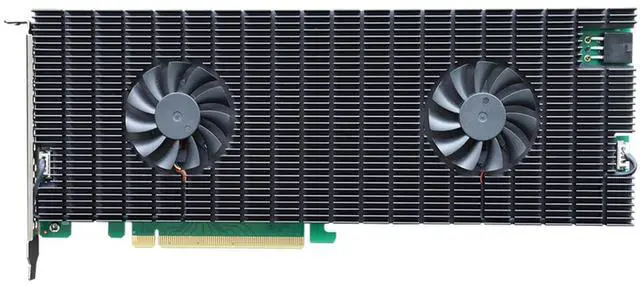

Cooling Solution: The SSD7140A employs our new ultra-efficient, multi-stage cooling-solution that combines a high-conductivity thermal pad with an anodized aluminum heatsink equipped with dual built-in, low noise fans. This design ensures the M. 2 SSDs, NVMe chipset and RAID componentry remain cool, even under heavy load, while minimizing the risk of distraction in the work environment.
Comprehensive NVMe RAID Management: The Web RAID Management Interface (WebGUI) is a simple, intuitive web-based management tool and is ideal for customers who are new to RAID technology. The CLI (command line interface) is a powerful, text-only management interface designed for advanced users and professional administrators. Customers can easily track TBW (Terabytes Written) and the temperature of each individual NVMe SSD, ensure the SSD7000 controller is using the fastest available PCIe slot, configure an event log with email notification, and monitor the status of critical RAID configurations in person or remotely via an internet connection.
