6.5"

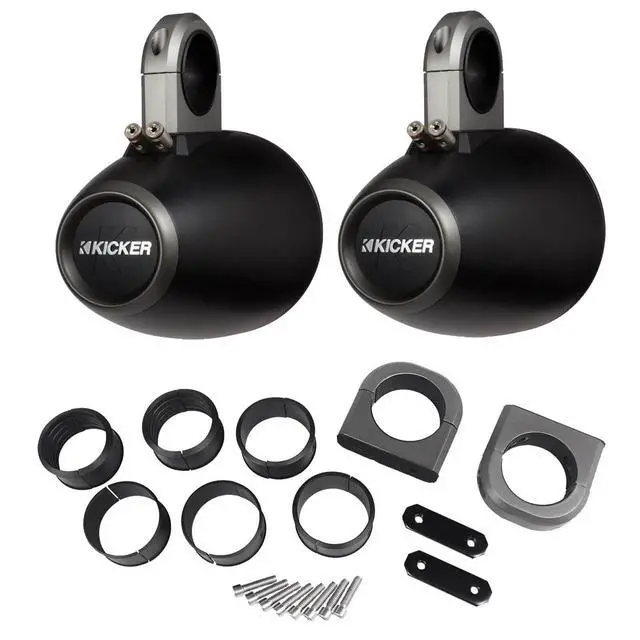

Tower Enclosures: Customer Enclosures designed to fit Kicker 6.5 inch marine speakers Rugged ABS shell with acoustic polyfill lining includes mounting adapters for 2, 2 3/8, and 2 pipe diameters 2 Unloaded speaker enclosures Poly-fil box stuffing 2 Die-cast aluminum upper mounting brackets 2 Mounting plates Eight 1-1/4"" Stainless steel machine screws (1/4"" Allen head)
Four of each size: 2-1/2", 2 3/8, 2 ABS mounting inserts
Diameter: 7"
Depth: 8.5" (plus the mounting height of the speaker)
Mounting Height: From Center Line of
Tube: 8.75" From
Top of Bracket: 10.625"
Cutout Diameter: 5.625"
Depth: approximately 6" (assuming 4"" magnet diameter)
Diagonal: 5.93" to 6.10" 4-Hole
Pattern: 4.20" to 4.34" 8-Hole
Pattern: 2.26" to 2.36" 6.5"

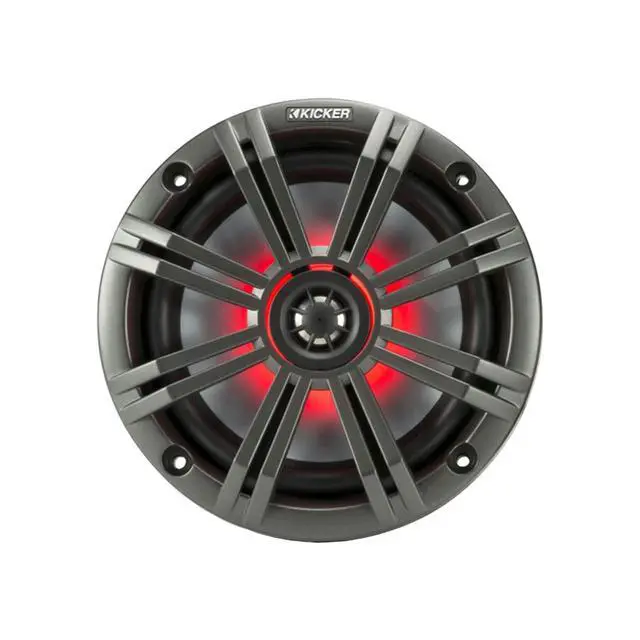

Speakers: 65 Watt RMS Power Multicolor LED Lighting Capablities Polypropylene midwoofer Rubber surround Sealed Motor Structure 1/2" titanium dome tweeter 4 ohms impedance
Sensitivity: 90dB
Frequency Response: 35-21, 000
Hz Top-mount Depth: 2-7/8 inch
Cutout dimensions: 5-1/8 inchSpeaker

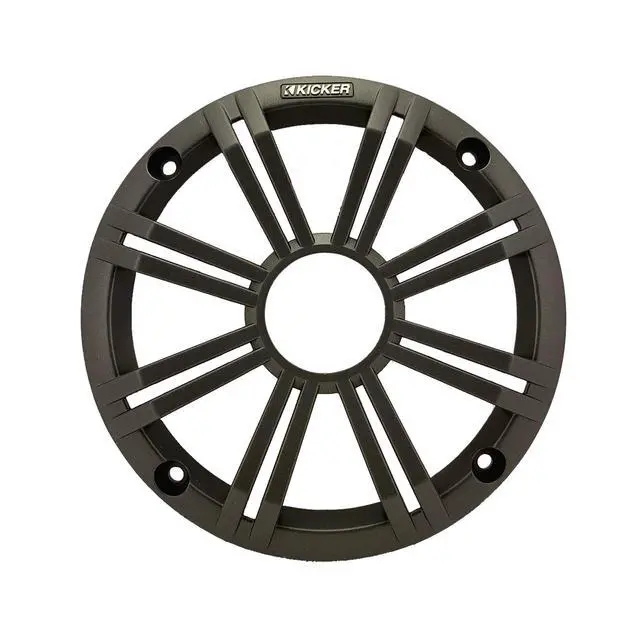

Grilles: Charcoal Grilles Durably Constructed Compatible with Kicker marine speakers
