ASHATA DC to DC ATX PSU 12V 300W 24Pin ATX Switch PSU Mini ITX 1U PC Power Supply Module for Computer

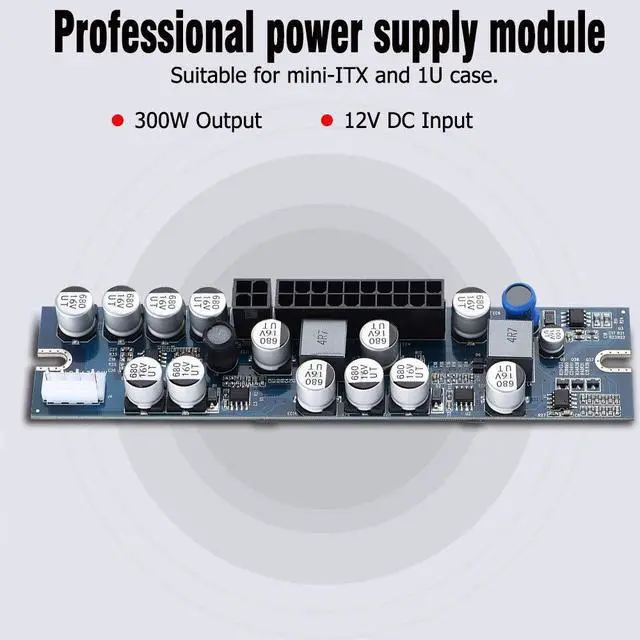

- Professional 12V 300W PC Power Supply Module suitable for mini ITX ATX and 1U case.
- 300W Rating Output and 12V DC Input, and it must be accompanied with the power adapter.

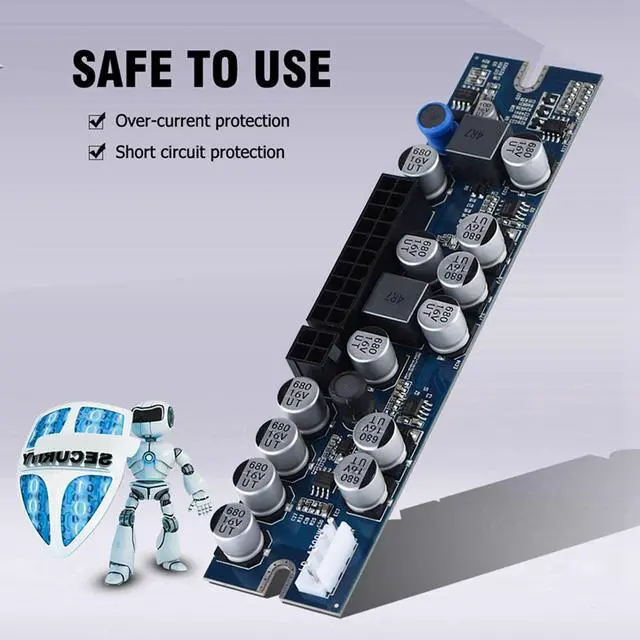

- Full : Over current and short circuit . Output shutdown when output current reaches the peak point; Short circuit : output shut down when short circuit.

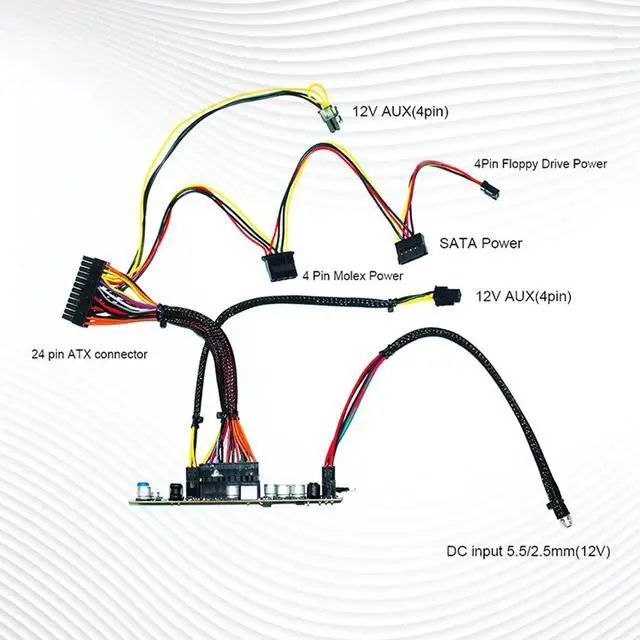

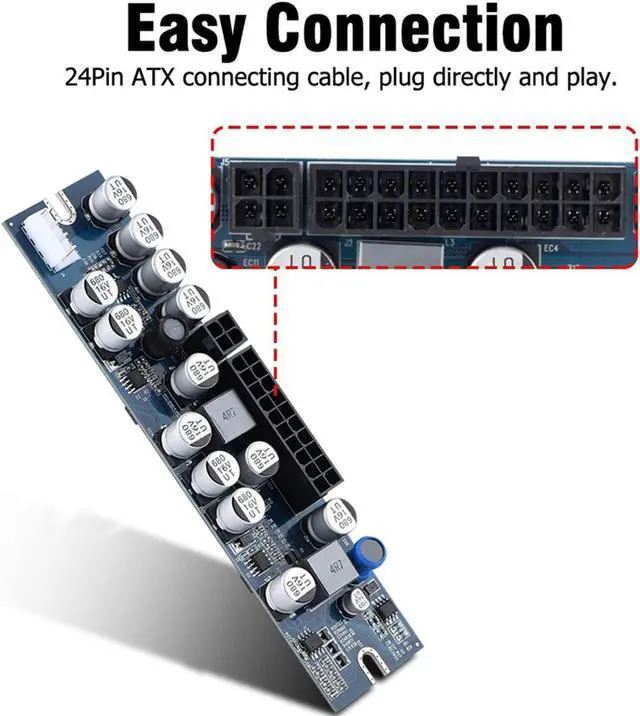

- 24Pin ATX connecting cable for connection and suitability, plug directly and play, stable and reliable.
- Defensive Function (for +3.3V, +12V, +5.00V and +5.00V SB power output).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Color: As the pictures shown.
Input voltage: 12V DC ( 11.4 12.6V )
Input Current: Max.
25A Output Power: 300W
Power Efficiency: 85%
Applications: MINI computers, HTPC, POS, Digital Set Top Boxes, ITX Case, Network Servers, AD Machines, Bank Terminals, Mining Machines, etc.
Working Temperature/ Humidity: 0 ~ 55/ 45% ~ 75%
Storage Temperature/ Humidity: 40 ~ 70/ 10% ~ 90%
Atmospheric Pressure: 86Kpa ~ 106Kpa
Module Board Size: Approx. 154 x 35 x 15mm/ 6.1 x 1.4 x 0.6 in
Package Size: Approx. 160 x 80 x 40mm/ 6.3 x 3.1 x 1.6 in
Package Weight: 189g

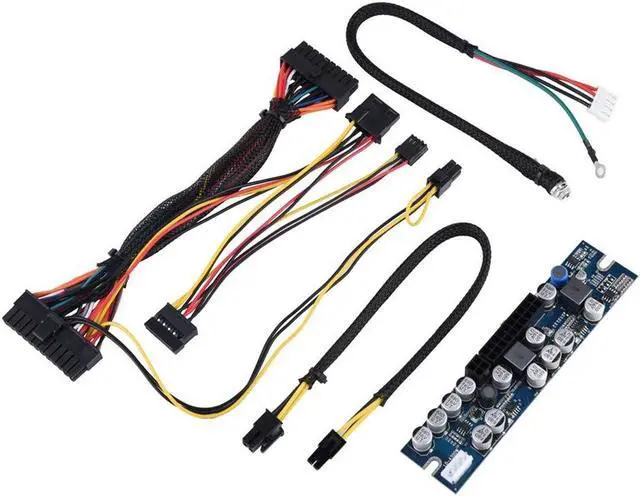

Package includes: 1 x 300W Power Supply Module 1 x 24Pin to 20Pin Cable 1 x DC Input Cable 1 x AUX Cable
