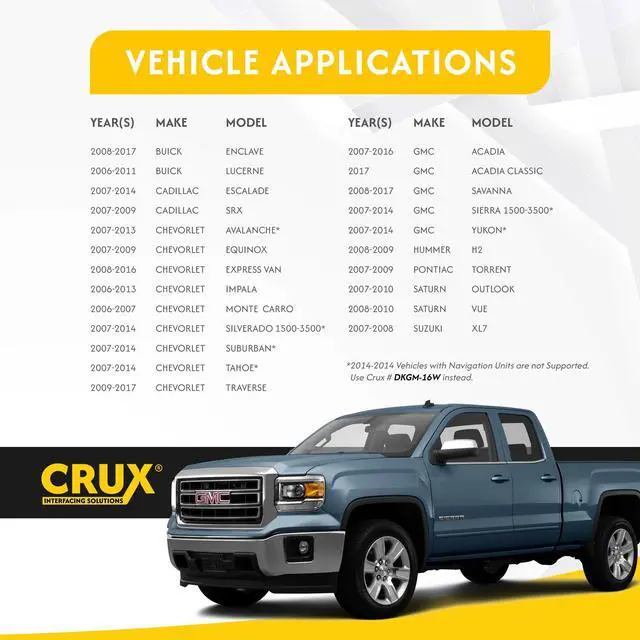

CRUX Interfacing DKGM-16^^ OnStar Radio Replacement Interface w/SWC Retention, Video Switcher & Double Din Dash Kit for Select GM LAN-29 Bit Vehicles 2006-2015
- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio. Retains factory front and back park assist system. Retains chime functions.
- Pre-programmed to retain factory Steering Wheel Controls. Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
- iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios. Supports Pick Up/End Call, Pick Up and Toggle between 1st and 2nd Incoming call, AVRCP Track, Seek.
- Includes Double DIN Radio Replacement Dash Kit. EIA color coded wiring for easy installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
"The CRUX DKGM-16 is a premium interface for select General Motors LAN 29-Bit Vehicles. It facilitates the integration of an after-market radio to fully retain Onstar & other factory features in GM LAN 29-Bit vehicles with Bose Amplified and Non-Amplified Systems. It also includes a double-din dash kit replacement. This enhanced interface is also pre-programmed for the retention of steering wheel controls.
DIP SWITCH SETTINGS: 3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
NOTE: Insulate the Blue/Yellow wire or 3.5 mm plug if not being used. For aftermarket radios that have wires for SWC Connections, cut off the 3.5 mm plug on the CRUX SWC Cable and connect the SWC wires. Note that there are some radios that only have SWC1 and SWC2, in this case shield"" does not need to be connected.
SELECTING THE AUDIO SYSTEM: If the vehicle is equipped with an amplified audio system, the DKGM-16 has a built-in audio level adaptor that outputs the proper audio level from the aftermarket radio to 8-pin connector on the DKGM-16 harness to the GRAY If the vehicle is equipped with an amplified audio system, female 8-pin connector on the DKGM-16 module. The module is also labeled Bose and Non Bose to avoid confusion. system, plug in the male 8-pin connector to the BLACK the factory amplifier female 8-pin on the DKGM-16 moduleCHIME
VOLUME ADJUSTMENT: The DKGM-16 has a potentiometer to adjust the chime volume. It is set at half way by default. To adjust the volume, simply use a suitable screw driver and turn the potentiometer clockwise to increase the volume and counter-clockwise to decrease the volume.
ONSTAR VOLUME ADJUSTMENT: To adjust the OnStar volume, turn on OnStar and adjust the volume using the Steering Wheel Control volume adjustment. Once it is set, the DKGM-16 will memorize this level. REAR SEAT ENTERTAINMENT (RSE) (Optional
Cable): Part# CRUX2333A can be special ordered to retain the Rear Seat Entertainment (RSE). 4. Test the audio and video on the overhead screen before installing the radio back into the dashboard. 1. Connect the CRUX 2333A's 16-pin connector to the vehicle's 16-pin factory RSE connector at the radig location. 2. To view videos from the aftermarket radio on the factory overhead sereen, connect the RCAs tabeled To FACT RY OVERHEAD SCREEN to the aftermarket radio's AV output. 3. To retain the use of the factory rear panel AV input, plug the RCAs labeled AV INPUT to the aftermarket radio's AV input (optional).
BACKUP CAMERA CONNECTION: You can retain the factory back-up camera by using the CRUX 2543 harness included in the kit. 1. Connect the 16-pin back-up camera harness to the vehicles 16-pin factory backup camera connector. 2. Connect the Yellow video RCA to the new aftermarket radio camera input. 3. Test the video feed before installing the radio back into the dashboard.
ENABLING THE IR SYSTEM: To retain the use of the IR headphones with the factory overhead entertainment system you will need to connect a +12 volt switched accessory power wire to the rear entertainment panel wire harness located in the rear of the center console. You will need a 1 amp fuse and a 1N4001 diode to complete the installationon. Remove the RSE control panel in the center console. Tools will be required such as a panel remover tool and/or 7mm socket. Locate the (pink) wire located in pin 14 of the (gray) connector. Connect the diodes stripe side to the pink wire. Connect the other end of the diode to one side of the 1 amp fuse. Connect the remaining side of the fuse to a +12 switched accessory wire. Refer to the wiring.
DASH KIT INSTALLATION: A double DIN radio replacement dash kit is included in the kit to make the installation quick and easy. You have the option of installing a Double DIN or two Single DIN radios.

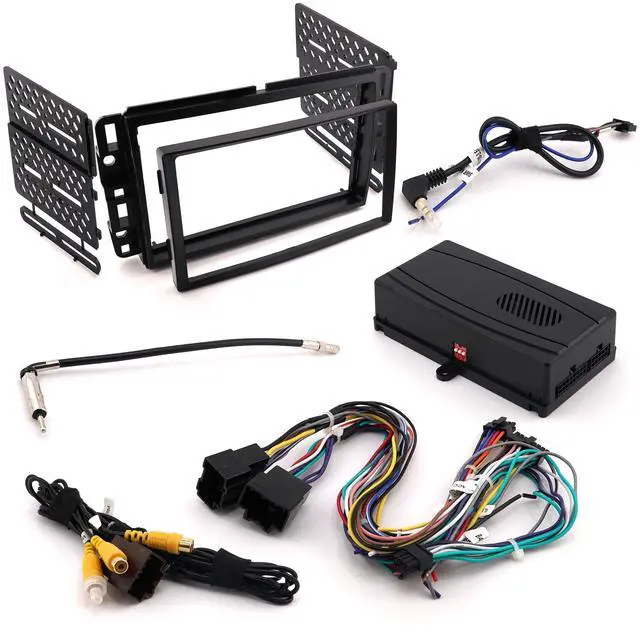

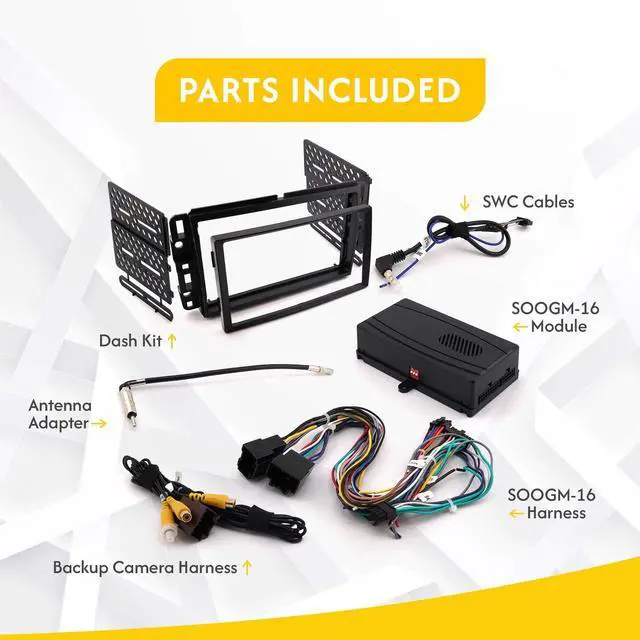

The DKGM-16 kit includes:
INSTALLATION:
NOTE: Suzuki XL7 trim top corners of radio housingBefore installa on: 1. Locate the main trim. 2. Locate the le nd right moun ng brackets. 3. Slide the appropriate moun ng bracket into the trim rin
DIP SWITCH SETTINGS: 3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
NOTE: Insulate the Blue/Yellow wire or 3.5 mm plug if not being used. For aftermarket radios that have wires for SWC Connections, cut off the 3.5 mm plug on the CRUX SWC Cable and connect the SWC wires. Note that there are some radios that only have SWC1 and SWC2, in this case shield"" does not need to be connected.
SELECTING THE AUDIO SYSTEM: If the vehicle is equipped with an amplified audio system, the DKGM-16 has a built-in audio level adaptor that outputs the proper audio level from the aftermarket radio to 8-pin connector on the DKGM-16 harness to the GRAY If the vehicle is equipped with an amplified audio system, female 8-pin connector on the DKGM-16 module. The module is also labeled Bose and Non Bose to avoid confusion. system, plug in the male 8-pin connector to the BLACK the factory amplifier female 8-pin on the DKGM-16 moduleCHIME
VOLUME ADJUSTMENT: The DKGM-16 has a potentiometer to adjust the chime volume. It is set at half way by default. To adjust the volume, simply use a suitable screw driver and turn the potentiometer clockwise to increase the volume and counter-clockwise to decrease the volume.
ONSTAR VOLUME ADJUSTMENT: To adjust the OnStar volume, turn on OnStar and adjust the volume using the Steering Wheel Control volume adjustment. Once it is set, the DKGM-16 will memorize this level. REAR SEAT ENTERTAINMENT (RSE) (Optional
Cable): Part# CRUX2333A can be special ordered to retain the Rear Seat Entertainment (RSE). 4. Test the audio and video on the overhead screen before installing the radio back into the dashboard. 1. Connect the CRUX 2333A's 16-pin connector to the vehicle's 16-pin factory RSE connector at the radig location. 2. To view videos from the aftermarket radio on the factory overhead sereen, connect the RCAs tabeled To FACT RY OVERHEAD SCREEN to the aftermarket radio's AV output. 3. To retain the use of the factory rear panel AV input, plug the RCAs labeled AV INPUT to the aftermarket radio's AV input (optional).
BACKUP CAMERA CONNECTION: You can retain the factory back-up camera by using the CRUX 2543 harness included in the kit. 1. Connect the 16-pin back-up camera harness to the vehicles 16-pin factory backup camera connector. 2. Connect the Yellow video RCA to the new aftermarket radio camera input. 3. Test the video feed before installing the radio back into the dashboard.
ENABLING THE IR SYSTEM: To retain the use of the IR headphones with the factory overhead entertainment system you will need to connect a +12 volt switched accessory power wire to the rear entertainment panel wire harness located in the rear of the center console. You will need a 1 amp fuse and a 1N4001 diode to complete the installationon. Remove the RSE control panel in the center console. Tools will be required such as a panel remover tool and/or 7mm socket. Locate the (pink) wire located in pin 14 of the (gray) connector. Connect the diodes stripe side to the pink wire. Connect the other end of the diode to one side of the 1 amp fuse. Connect the remaining side of the fuse to a +12 switched accessory wire. Refer to the wiring.
DASH KIT INSTALLATION: A double DIN radio replacement dash kit is included in the kit to make the installation quick and easy. You have the option of installing a Double DIN or two Single DIN radios.
The DKGM-16 kit includes:
INSTALLATION:
NOTE: Suzuki XL7 trim top corners of radio housingBefore installa on: 1. Locate the main trim. 2. Locate the le nd right moun ng brackets. 3. Slide the appropriate moun ng bracket into the trim rin
