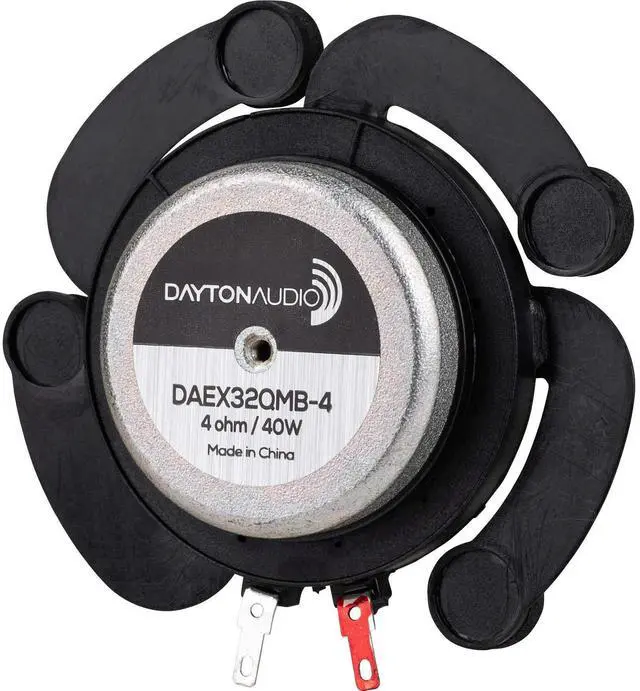

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Quick Overview Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32QMB-4 4 ohm 40 watt sound exciter improves power handling with a vented voice coil. Product Highlights Large 32 mm voice coil improves power handling to 40 watts RMS Rare-earth neodymium motor and a proprietary vented voice coil Four arms provide extra support improving linearity Turns any flat, rigid surface into a speaker Product Manuals / Spec Sheets / Downloads Dayton Audio DAEX32QMB-4 Specification Sheet AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis 1 Product Description Dayton Audios DAEX32QMB-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more b).

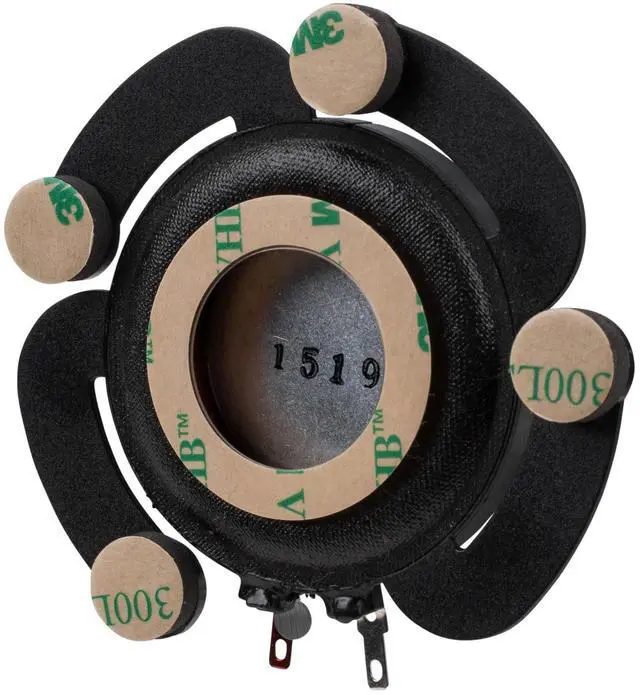

Also, the arms help to support the magnet/voice coil improving linearity when mounted on horizontal surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms.

.. just peel and stick!
Note: An exciters frequency response and sensitivity are completely dependent on the exciters designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications

: Power
handling: 40 watts
RMS VCdia: 1.25" (32 mm)
Nominal impedance: 4 ohms
Re: 3.7 ohms
Le: 0.
