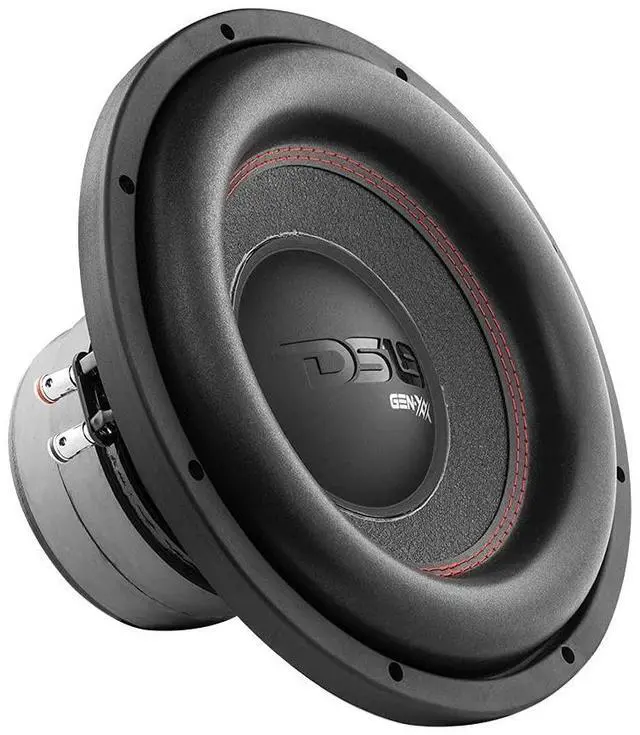

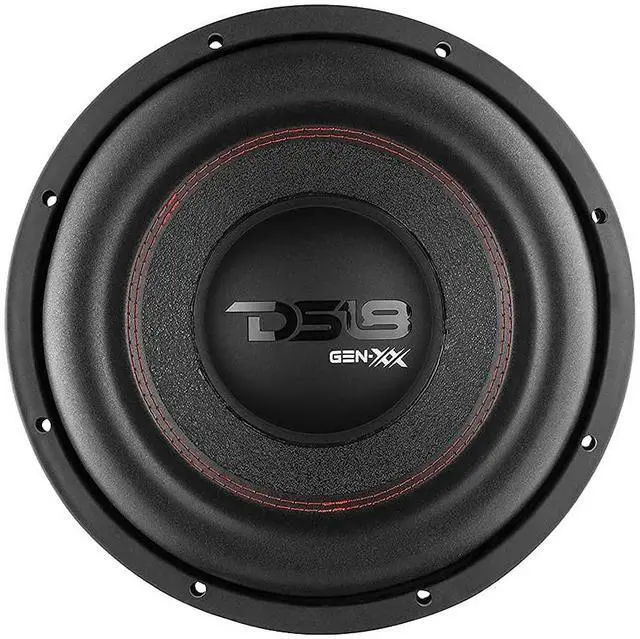

DS18 GEN-XX12.4DHE 12" High Excursion Car Subwoofer 1000 Watts Max Dual Voice Coil 4+4 Ohms (1 Speaker), Black
- High Excursion surround for a very high amount of xmax.
- READY FOR HIGH POWER APPLICATIONS - At 1000 Watts Max Power and 500 Watts RMS, this subwoofer will be able to manage anything you want to throw at it.
- TREATED RUBBER EDGE - The entire rubber edge is treated to add durability. DS18 designed this sub with non-fatiguing suspension to keep equipment safe and ensure your new subwoofer holds up over time.
- HIGH-QUALITY MAGNET - Settle for nothing but the best with Ferrite magnets that produces a wider range of tones and can handle tremendous power at high volumes.
- NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High excursion is now the mainstream and usually this feature is very expensive and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user. The GEN-XX 12.4DHE is the answer to that issue. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.

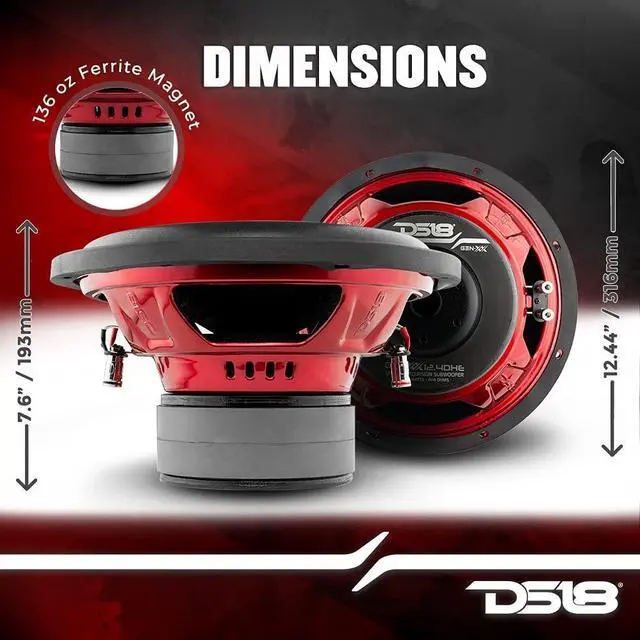

Hz Motor: VC Diameter 2 VC Former Material Black Aluminum Winding Material SV Cone Material Paper Dust Cap Material PPI Surround Material Foam Basket Material Steel Basket Color/Finish Glossy Red Magnet Material Ferrite Magnet Weight 136 Oz Displacement Volume 1.69L Thiele Small Parameters Equivilant Vol Vas 56.436L Excursion one way Xmax 25 mm Free Air Resonance Fs 30.5 Hz Mechanical Factor Qms 3.991 Electrical Factor Qes 0.532 Total Factor Qts 0.469 Moving Mass Mms 154.38 g Compliance Cms 0.175 mm/N Bl Factor BL 19.173N /A VC Inductance Le 0.6741 mH Diaphragm Area Sd 475.29 cm2 Dc Resistance Re 3.2 + 3.2 ohms Efficiency Bandwidth Product EBP 57.3 Measurements Overall Diameter 12.44 / 316mm Overall Depth 7.6 / 193mm Front Mount Baffle Cutout 10.9 / 277mm Mounting Depth 6.5 / 165mm Motor Diameter 6.14 / 156 mm
Specifications
Nominal Diameter 12 Nominal Impedance 4+4 ohms RMS Power Handling 500W MAX Power Handling 1000W Sensitivity 1w/1m 86.7 dB Frequency Response 20- 1.5KH z Recommended Lo Pass Crossover 80Hz Motor: VC Diameter 2 VC Former Material Black Aluminum Winding Material SV Cone Material Paper Dust Cap Material PPI Surround Material Foam Basket Material Steel Basket Color/Finish Glossy Red Magnet Material Ferrite Magnet Weight 136 Oz Displacement Volume 1.69L Thiele Small Parameters Equivilant Vol Vas 56.436L Excursion one way Xmax 25 mm Free Air Resonance Fs 30.5 Hz Mechanical Factor Qms 3.991 Electrical Factor Qes 0.532 Total Factor Qts 0.469 Moving Mass Mms 154.38 g Compliance Cms 0.175 mm/N Bl Factor BL 19.173N /A VC Inductance Le 0.6741 mH Diaphragm Area Sd 475.29 cm2 Dc Resistance Re 3.2 + 3.2 ohms Efficiency Bandwidth Product EBP 57.3 Measurements Overall Diameter 12.44 / 316mm Overall Depth 7.6 / 193mm Front Mount Baffle Cutout 10.9 / 277mm Mounting Depth 6.5 / 165mm Motor Diameter 6.14 / 156 mm
