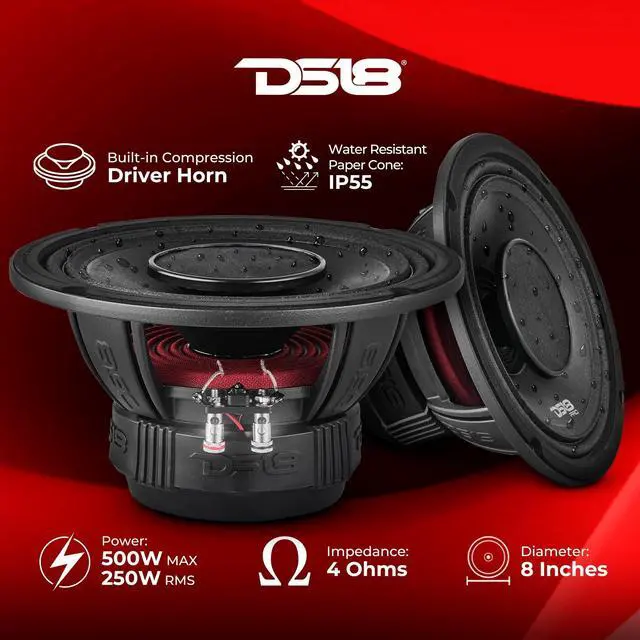

DS18 PRO-HY8.4B 8" Hybrid Mid-Range Car Audio Loudspeaker with 1" VC Built-in Compression Driver Horn, 500W Max 250W RMS 4 Ohms (1 Speaker)
- This high powered pro audio mega speaker combines both a 6.5 high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume.
- Hybrid design combines high wattage midrange and driver together in one beautiful frame.
- High volume 8" and 1" driver rated at 250W RMS and 450max for crazy loud volume in a full range of frequencies.

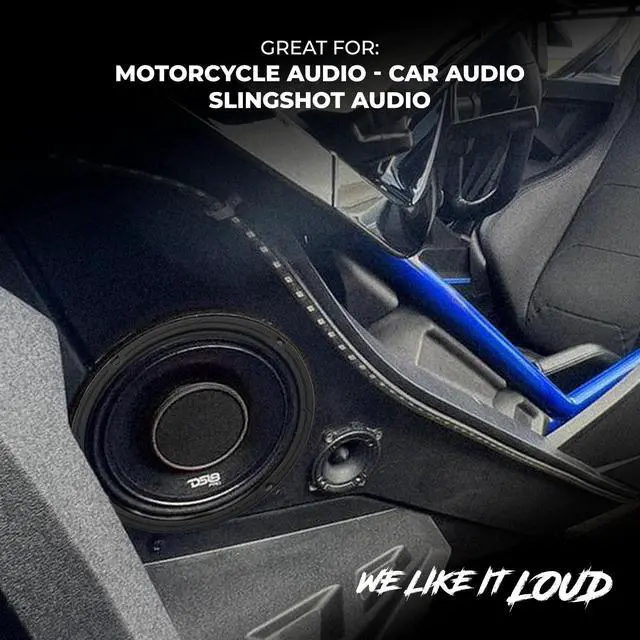

- Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!
- NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PRO 6.5" Hybrid Mid-Range Loudspeaker with Built-in Driver 4-OhmDS18's Hybrid speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 6.5 high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.
SPECIFICATIONSNominal Diameter 6.5N ominal Impedance 4 OHMSRMS Power Handling 225WMAX Power Handling 450WSensitivity (1w/1m) 96dBFrequency Response 100Hz-20KHzRecommended Hi Pass Crossover 120 HzNumber of Ways 2Pair or Single SingleMID-RANGE SPECIFICATIONSVoice Coil Diameter 1.5 / 38.6 mmVoice Coil Former Material Glass FiberWinding Material CCAWCone Material Water Resistant PaperSurround Material ClothBasket Material AluminumBasket Color/Finish Glossy RedMagnet Material FerriteMagnet Weight 27 ozDisplacement volumen 0.047LTHIELE & SMALL PARAMETERSEquivalent Volume Vas 2.211LE xcursion (one way) Xmax 9.2 mmFree Air Resonance FS 199HzMechanical Factor Qms 5.96E lectrical Factor Qes 1.524T otal Factor Qts 1.214M echanical Mass Mms 8.654 gMechanical Compliance Cms 73.792 mm/NBL Factor BL 4.769V oice Coil Inductance Le 4.22 mHCone Area Sd 145.26 Cm2DC Resistance Re 3.2 ohmsMechanical Mass w/o Air Mmd 6.7 g&n
SPECIFICATIONSNominal Diameter 6.5N ominal Impedance 4 OHMSRMS Power Handling 225WMAX Power Handling 450WSensitivity (1w/1m) 96dBFrequency Response 100Hz-20KHzRecommended Hi Pass Crossover 120 HzNumber of Ways 2Pair or Single SingleMID-RANGE SPECIFICATIONSVoice Coil Diameter 1.5 / 38.6 mmVoice Coil Former Material Glass FiberWinding Material CCAWCone Material Water Resistant PaperSurround Material ClothBasket Material AluminumBasket Color/Finish Glossy RedMagnet Material FerriteMagnet Weight 27 ozDisplacement volumen 0.047LTHIELE & SMALL PARAMETERSEquivalent Volume Vas 2.211LE xcursion (one way) Xmax 9.2 mmFree Air Resonance FS 199HzMechanical Factor Qms 5.96E lectrical Factor Qes 1.524T otal Factor Qts 1.214M echanical Mass Mms 8.654 gMechanical Compliance Cms 73.792 mm/NBL Factor BL 4.769V oice Coil Inductance Le 4.22 mHCone Area Sd 145.26 Cm2DC Resistance Re 3.2 ohmsMechanical Mass w/o Air Mmd 6.7 g&n
