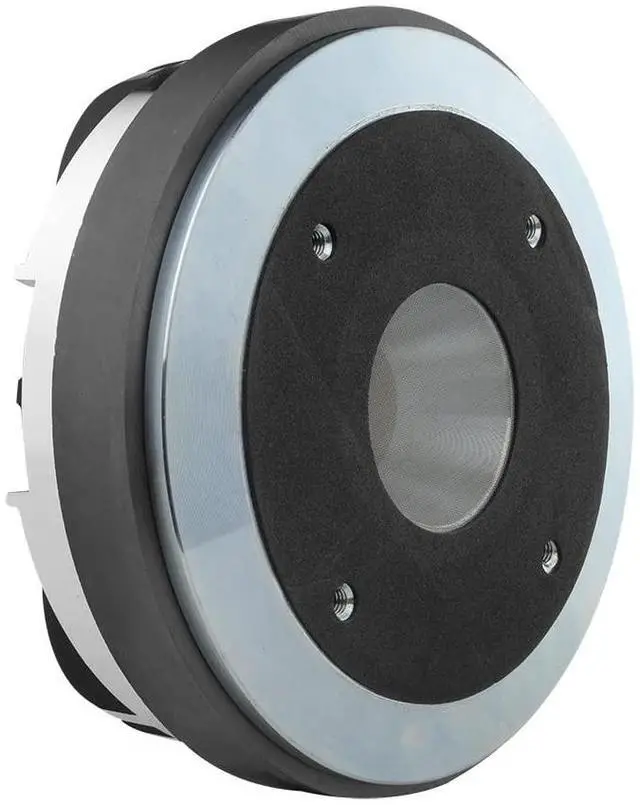

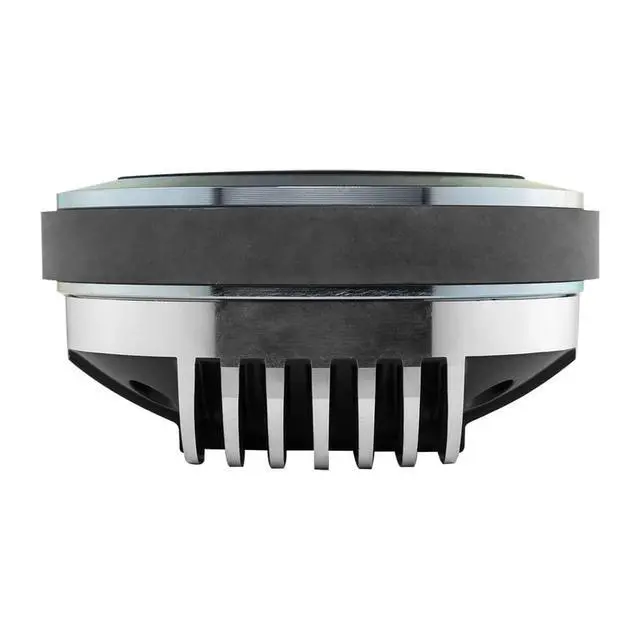

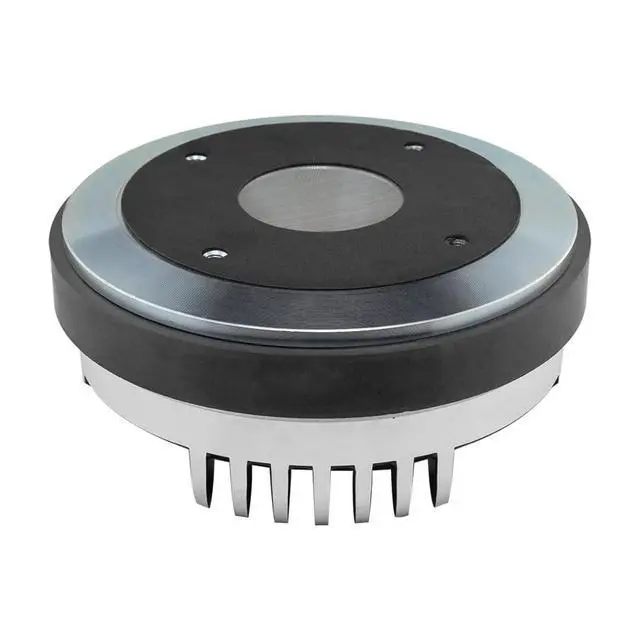

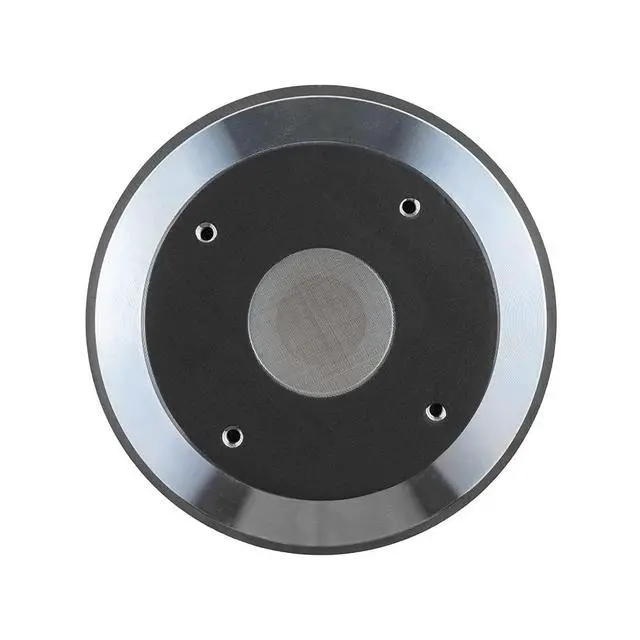

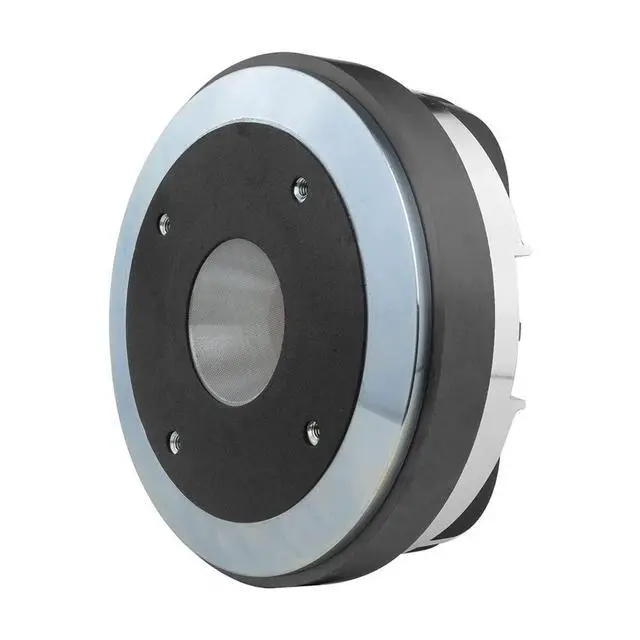

DS18 PRO-D2PH 2" Bolt On Throat Compression Driver with 3" Phenolic Voice Coil 800 Watts 8-ohm (1 Tweeter)

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises! This driver comes with a large phenolic 2 inch voice coil that takes 200 AES and 800 Peak power for extreme decibel production backed with a high efficiency motor.

Highlights Ferrite motor structure that provides great motor force and loudness. High strength phenolic voice coil taking 200 AES watts and 800 Peak watts. Intense high frequency volume without sacrificing sound quality. Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application. Technical

Details

A A A A A A A A A A A A A A A A A A A A A A A A PRO-D2PH Product Manual Throat Diameter 2" / 50.8 mm Installation Type Bolt-On Nominal Impedance 8 Ohms AES Power Handling 200W Program Power Handling 400W Peak Power Handling 800W Sensitivity 109 dB Frequency Response 500Hz - 10KHz Recommended Hi Pass Crossover 800 Hz MOTOR Voice Coil Diameter 3" / 76.2 mm Voice Coil Former Material Kapton Winding Material Aluminum Diaphragm Material Phenolic Magnet Material Ferrite Magnet Weight 65 oz Body Material Aluminum Body Color / Finish Black Aluminum / Machined MEASUREMENTS Overall Diameter 6.69" / 170mm Overall Depth 3.2" / 81.4 mm Bolt Pattern Type 4*M6
