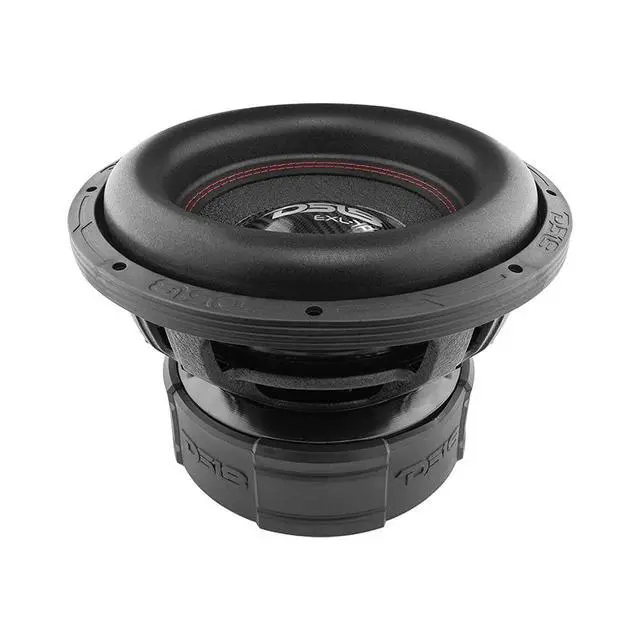

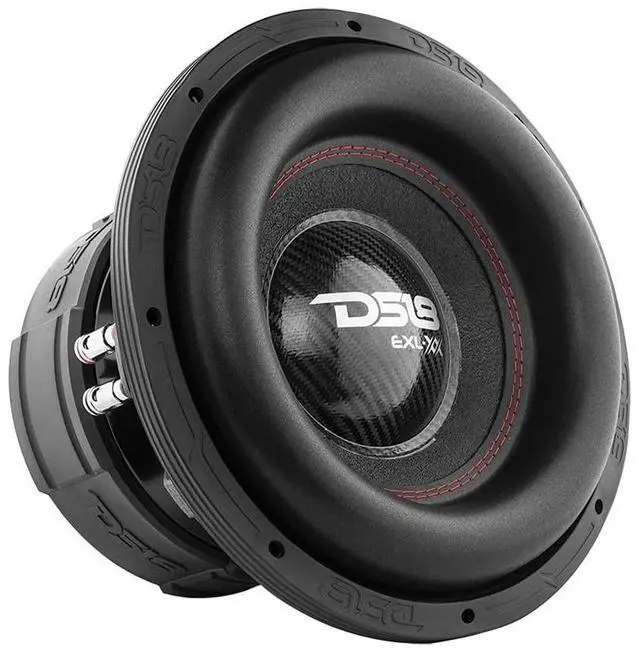

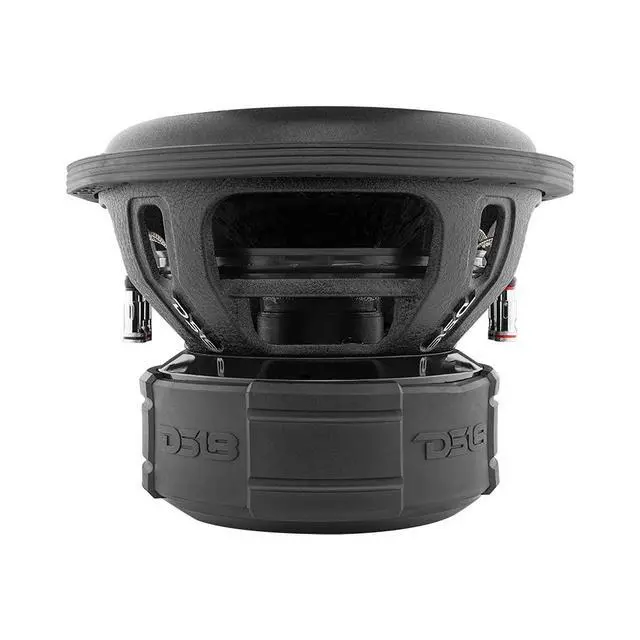

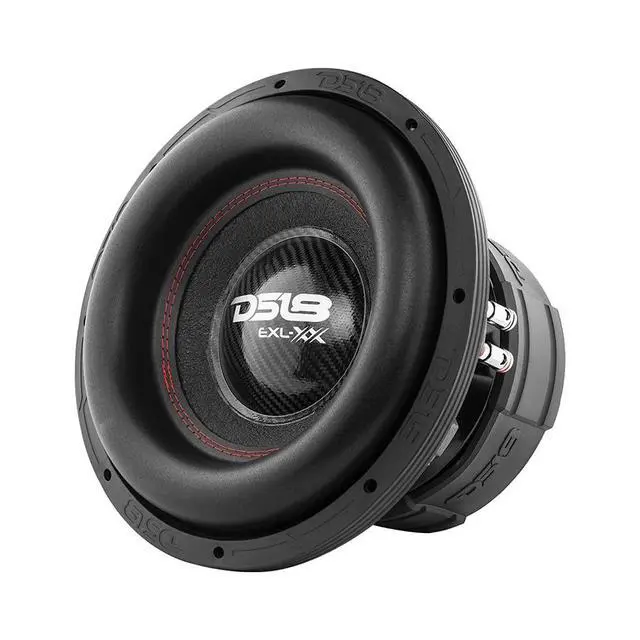

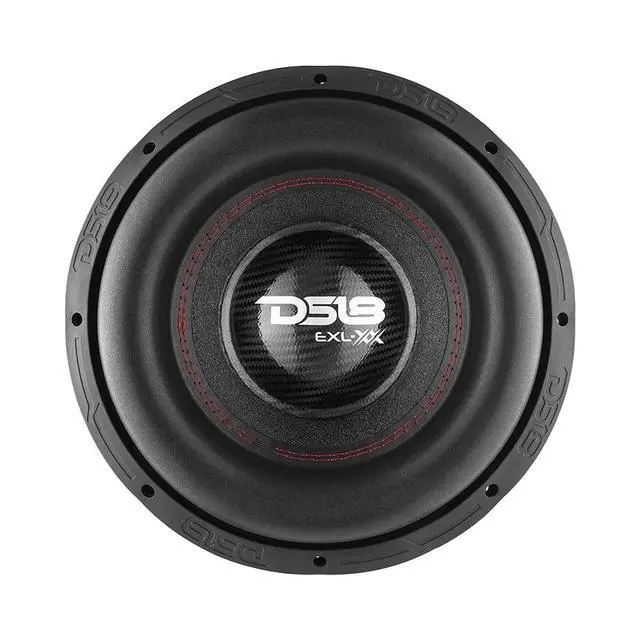

DS18 EXL-XX12.4DHE 12 High Excursion Car Audio Subwoofer 4000 Watts Dual Voice Coil 4 Ohms (1 Speaker) High Performance Big Bass Applications High Power
- EXTREME 4000W MAX POWER CAR SUBWOOFER The DS18 EXL-XX12.4DHE 12-inch subwoofer delivers massive bass performance with 2000W RMS / 4000W Max power handling, making it ideal for high-power car audio systems, SPL builds, and competition bass setups
- HIGH EXCURSION DESIGN FOR DEEP, HARD-HITTING BASS Built with a high-excursion surround and long Xmax, this 12 high excursion subwoofer produces deep low frequencies, louder bass output, and powerful sub-bass response for serious bass enthusiasts
- 3 BLACK ALUMINUM VOICE COIL FOR MAXIMUM EFFICIENCY The 3-inch aluminum voice coil improves heat dissipation, power handling, and durability, allowing this high-performance car subwoofer to handle extreme power levels without sacrificing sound quality
- DUAL 4-OHM VOICE COIL FOR FLEXIBLE WIRING The DVC 4-ohm configuration provides versatile wiring options for mono amps or multi-sub setups, making this 12-inch dual voice coil subwoofer perfect for custom car audio builds
- BUILT FOR COMPETITIO
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DS18 EXL-XX 12.2HEH igh excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX 12.2HE is the answer to that.
Hz Motor: VC Diameter 3 / 75.6 mm VC Former Material Black Aluminum Winding Material CCAW Cone Material Paper Dust Cap Material Glass Fiber Surround Material Foam Basket Material Aluminum Basket Color/Finish Black Magnet Material Ferrite Magnet Weight 306 Oz Displacement Volume 3.26L Thiele & Small Parameters Equivalent Vol Vas 20.738L Excursion (one way) Xmax 42 mm Free Air Resonance Fs 41.3 Hz Mechanical Factor Qms 4.525 Electrical Factor Qes 0.511 Total Factor Qts 0.459 Moving Mass Mms 285.433 g Compliance Cms 0.026 mm/N Bl Factor BL 17.166 VC Inductance Le 9.8 mH Diaphragm Area Sd 433.74 cm Dc Resistance Re 3.6 + 3.6 ohms Efficiency Bandwidth Product EBP 80.8 Measurements Overall Diameter 12.63 / 321mm Overall Depth 9.25 /235mm Front Mount Baffle Cutout 11.1 / 282mm Mounting Depth 7.87 / 200mm Motor Diameter 8.89 / 226mm
Specifications
Nominal Diameter 12 Nominal Impedance 4+4 ohms RMS Power Handling 2000W MAX Power Handling 4000W Sensitivity (1w/1m) 87 dB Frequency Response 20- 1.3KH z Recommended Lo Pass Crossover 80Hz Motor: VC Diameter 3 / 75.6 mm VC Former Material Black Aluminum Winding Material CCAW Cone Material Paper Dust Cap Material Glass Fiber Surround Material Foam Basket Material Aluminum Basket Color/Finish Black Magnet Material Ferrite Magnet Weight 306 Oz Displacement Volume 3.26L Thiele & Small Parameters Equivalent Vol Vas 20.738L Excursion (one way) Xmax 42 mm Free Air Resonance Fs 41.3 Hz Mechanical Factor Qms 4.525 Electrical Factor Qes 0.511 Total Factor Qts 0.459 Moving Mass Mms 285.433 g Compliance Cms 0.026 mm/N Bl Factor BL 17.166 VC Inductance Le 9.8 mH Diaphragm Area Sd 433.74 cm Dc Resistance Re 3.6 + 3.6 ohms Efficiency Bandwidth Product EBP 80.8 Measurements Overall Diameter 12.63 / 321mm Overall Depth 9.25 /235mm Front Mount Baffle Cutout 11.1 / 282mm Mounting Depth 7.87 / 200mm Motor Diameter 8.89 / 226mm
