Specifications

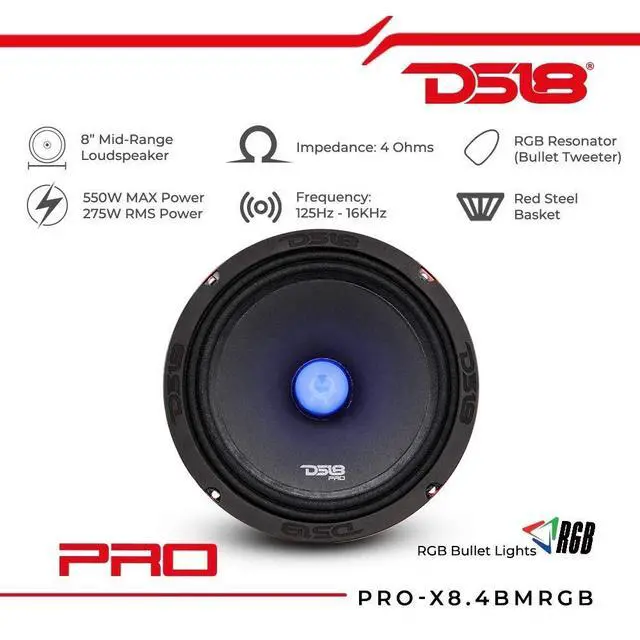

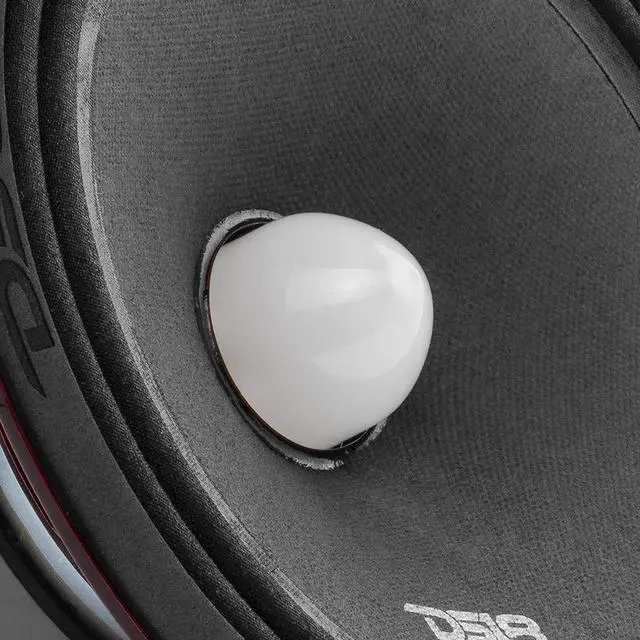

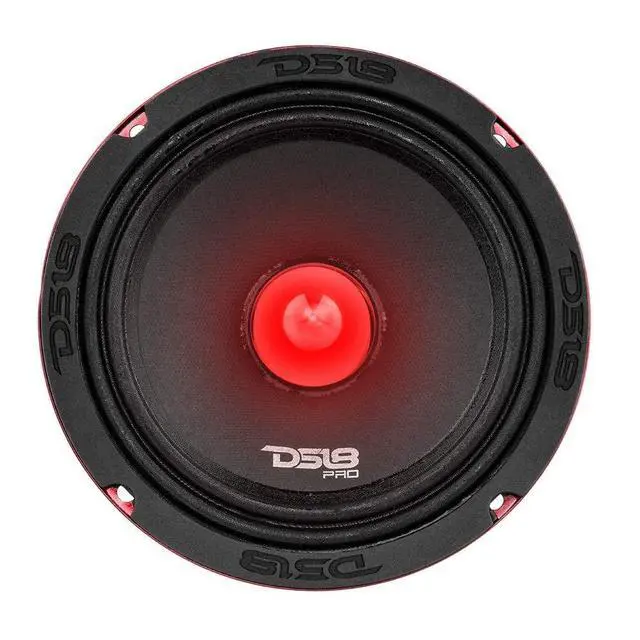

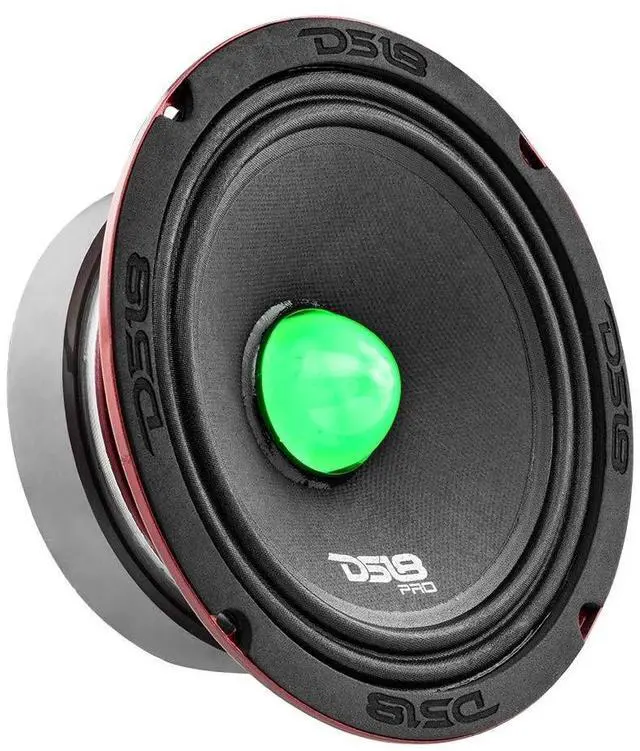

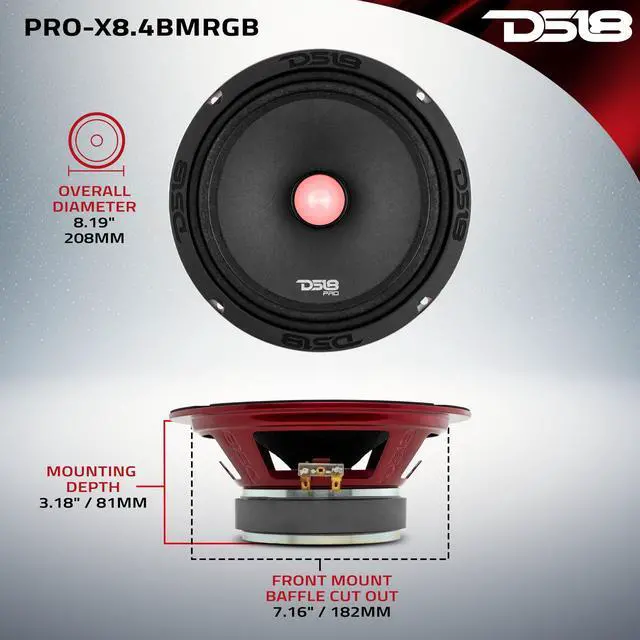

Nominal Diameter 8Nominal Impedance 4 ohmRMS Power Handing 275wMAX Power Handing 550wSensitivity (1w/1m) 94dBFrequency Response 125Hz-16KHzRecommended HI Pass Crossover 120 HzMotor Voice Coil Diameter 38.6 mm / 1.5"V oice Coil Former Material KaptonWinding Material CCAWCone Material PaperBullet Material Translucid ABS with RGB LEDSurround Material ClothBasket Material SteelMagnet Material FerriteMagnet Weight 30 OzDisplacement Volume 0.046LT hiele & Small Parameters Equivalent Volume Vas 7.1226LE xcursion (one way) Xmax 9.3 mmFree Air Resonance Fs 114HzMechanical Factor Qms 9.052E lectrical Factor Qes 0.877T otal Factor Qts 0.8M echanical Mass Mms 17.699 gMechanical Compliance Cms 0.11 m/NBL Factor BL 6.945V oice Coil Inductance Le 5.31 mHCone Area Sd 213.82 cm2CD Resistanc Re 3.2 ohmsMeasurements Overall Diameter 8.19" / 208mmOverall Depth 3.42" / 87mmFront Mount Baffle Cutout 7.16" / 182mmMouting Depth 3.18" / 81mmMotor D
