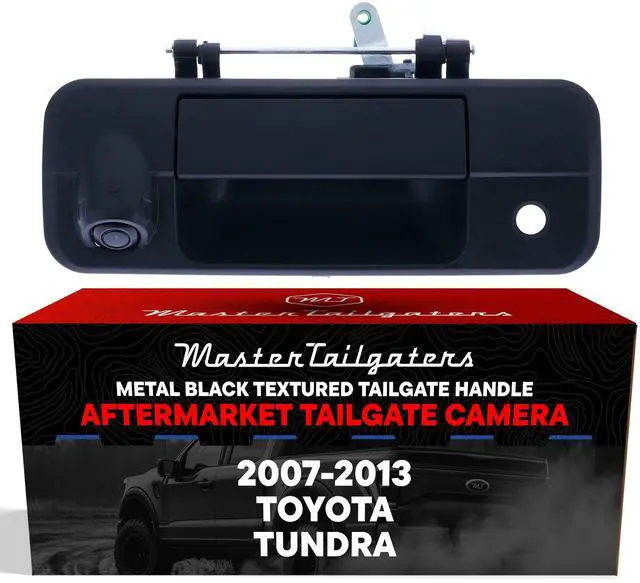

Master Tailgaters Black Metal Tailgate Handle with Backup Camera Replacement for Toyota Tundra (2007-2013) ^^ IP68 Waterproof ^^ Parking Grid Lines Available ^^ Easy to Install

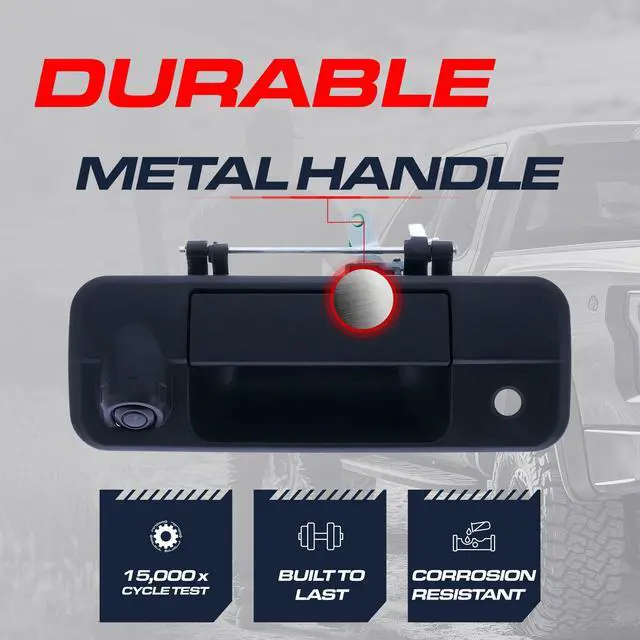

- FITS: This tailgate handle is compatible with Toyota Tundra (2007 2008 2009 2010 2011 2012 2013). This premium quality handle is a solid METAL handle encased in a sturdy plastic trim.

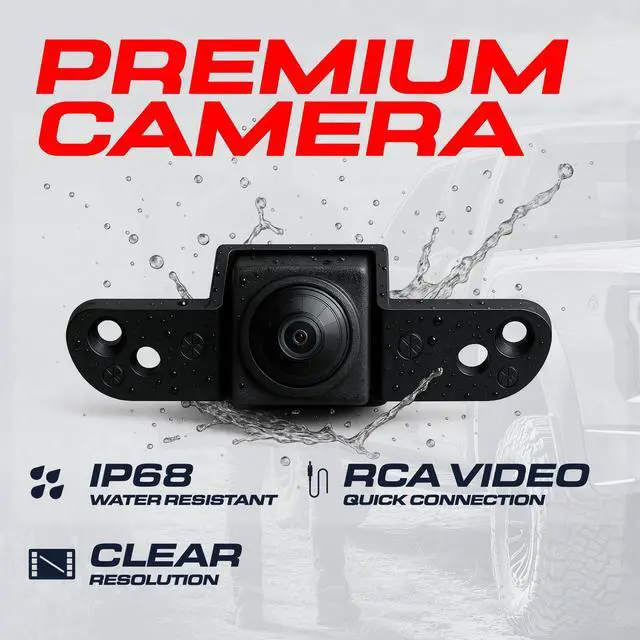

- HIGH QUALITY CAMERA: The IP68 waterproof camera has a resolution of 600 TV Lines and .1 Lux light sensitivity. Image sensor: On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic).
- WIDE ANGLE: 170 wide view camera helps you with reversing and parking safely. It is pointed at a slight downward angle so you have full view of your trailer ball hitch.
- EASY TO INSTALL: Our tailgate handle uses a universal RCA input to connect with your aftermarket monitor or screen -- compatible with our rear view mirrors with LCD screens!
- WARRANTY: Master Tailgaters tailgate handles are each backed by a 2 year manufacturer warranty.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Master Tailgaters Tailgate Handle with Backup Camera Replacement for
Toyota Tundra (2007-2013)COLOR: Black, Solid
METAL HandleFor use with: Toyota Tundra (2007 2008 2009 2010 2011 2012 2013)
What's Included: Tailgate Handle with Backup Reverse Camera 26 Foot Video and Power Cable Installation Instructions 2 YEAR NO QUESTIONS ASKED WARRANTY
Description: This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.
Camera Specs:
Sensor: On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic);
Signal System: NTSC/PAL;
Effective Pixel:
NTSC: 728 x 582, PAL: 728 x 512;
Minimum Illumination:.
1 LuxVideo Output: 1.1V p-p 75 Ohm;
Electronic Shutter: 1/50 to 1/100, 000 seconds;
Resolution: 600 TV line;
Angle: 170 Degree;
Waterproof Rate: IP68Current
Consumption: 120mA Max.;
Power: DC 12VA10%;
Operating Temperature: -20-+75 Celsius Degree (RH95% Max);
Storage Temperature: -40-+85 Celsius Degree (RH95% Max);
Cable Length: Video
Cable: 8M
Toyota Tundra (2007-2013)COLOR: Black, Solid
METAL HandleFor use with: Toyota Tundra (2007 2008 2009 2010 2011 2012 2013)
What's Included: Tailgate Handle with Backup Reverse Camera 26 Foot Video and Power Cable Installation Instructions 2 YEAR NO QUESTIONS ASKED WARRANTY
Description: This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.
Camera Specs:
Sensor: On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic);
Signal System: NTSC/PAL;
Effective Pixel:
NTSC: 728 x 582, PAL: 728 x 512;
Minimum Illumination:.
1 LuxVideo Output: 1.1V p-p 75 Ohm;
Electronic Shutter: 1/50 to 1/100, 000 seconds;
Resolution: 600 TV line;
Angle: 170 Degree;
Waterproof Rate: IP68Current
Consumption: 120mA Max.;
Power: DC 12VA10%;
Operating Temperature: -20-+75 Celsius Degree (RH95% Max);
Storage Temperature: -40-+85 Celsius Degree (RH95% Max);
Cable Length: Video
Cable: 8M
