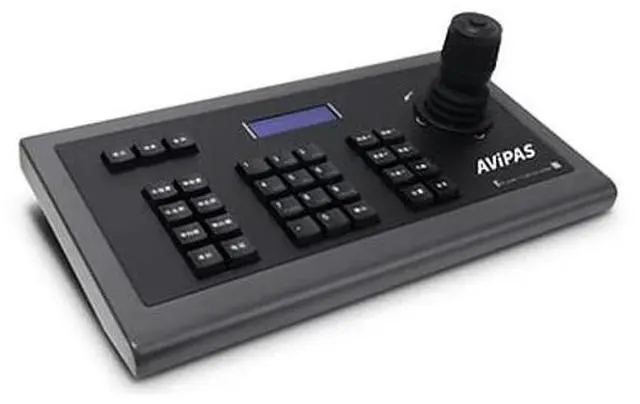

AVIPAS AV-3104SE 4D Serial Joystick Controller (No IP Function)

4D Pan/Tilt/Zoom/Lock PTZ Control
Serial RS-232/422/485 Communication
Control up to 255 PTZ Cameras
VISCA/Pelco-P & Pelco-D Support
Baud rate: 1200/ 2400/ 4800/ 9600 bps
Backlit LCD Screen
12 VDC Power Supply Included

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

AV-3104SE is a 4D joystick PTZ camera keyboard controller with LCD Display. The communication port between the keyboard and the receiving terminal (camera) is RS232/RS422 (RS485). The keyboard is able to control up to 255 PTZ cameras within a maximal communication range of 1.2 KM.

Key Features:
Simultaneous pan/ tilt/ zoom control, adjustable speed Button on the joystick provides lock/unlock function

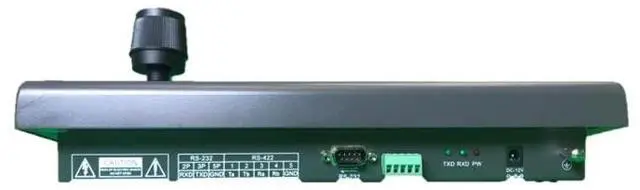

Communication: RS485 half-duplex, RS422 full duplex, RS232 serial Support VISCA, Pelco-P and Pelco-D protocols
Baud rate: 1200/ 2400/ 4800/ 9600 bps LED status and menu display

Package Includes:
3-axis control keyboard x1 pc 5pin plug (on the unit) x1 pc DC-12V power adapter x1 pc 8ft RS232 cable (9-Pin DB-9 Female to 8-Pin Mini-DIN Male) x1 pc User manual x1 pc
