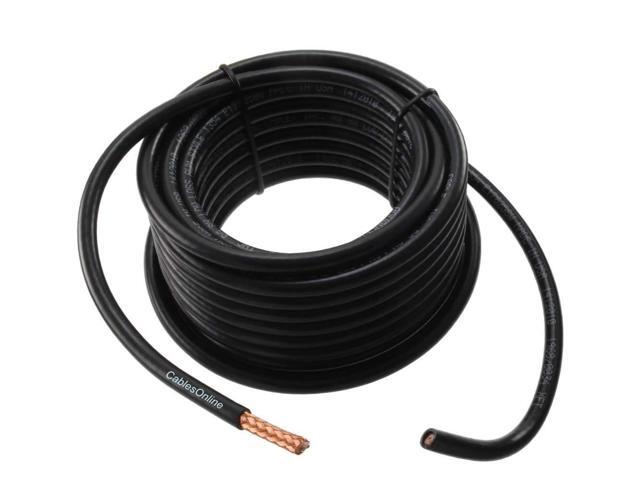

CablesOnline, 50ft. RG8X (Mini-RG8) 50-Ohm 16-AWG Bare-Copper Made-in-The-USA Bulk Coax Cable, Black, R8X-050

CablesOnline, 50ft. RG8X (Mini-RG8) 50-Ohm 16-AWG Bare-Copper Made-in-The-USA Bulk Coax Cable, Black, R8X-050

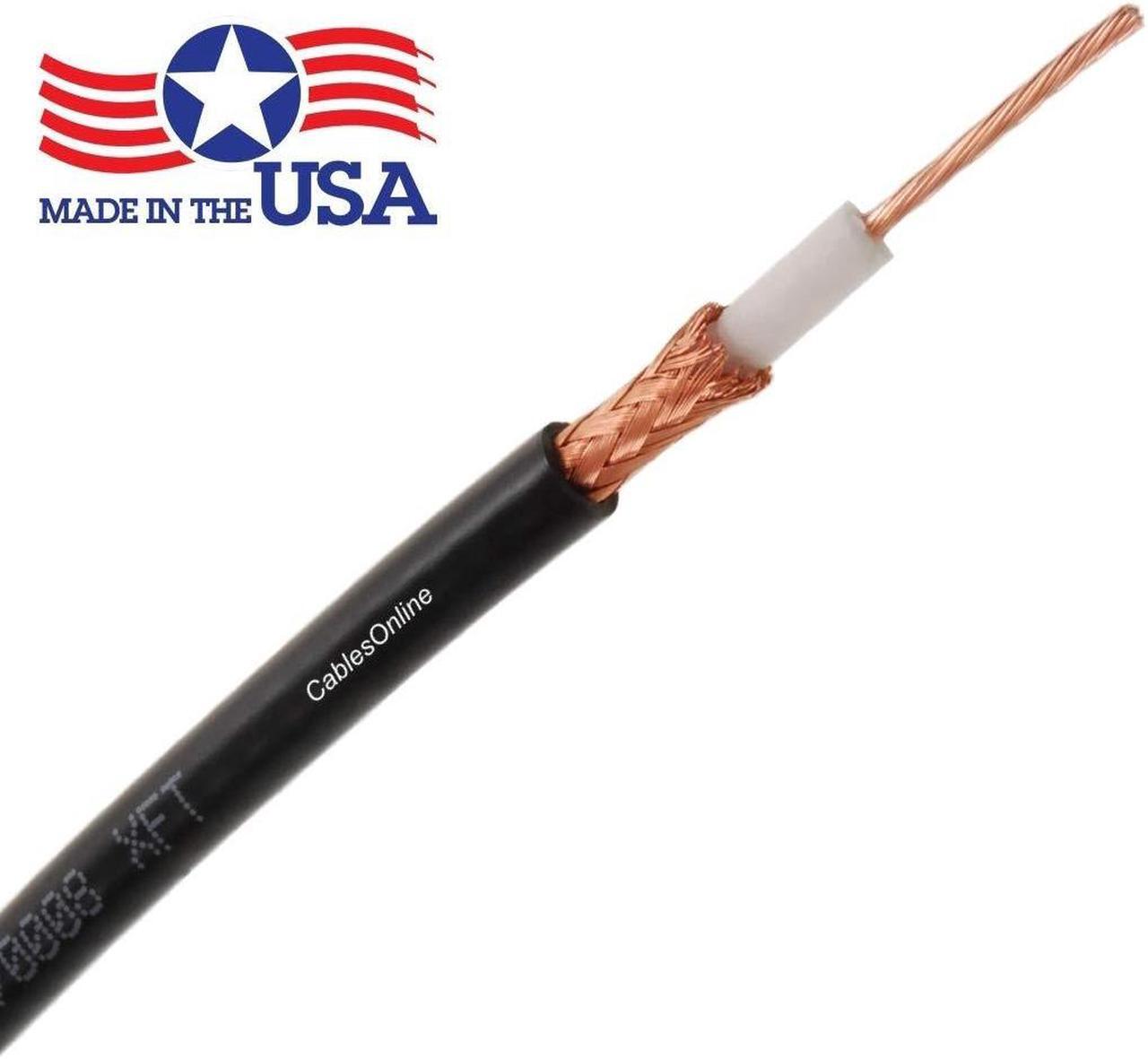

RG8x or RG8-Mini is a high performance coaxial cable that is known for its flexibility. This cable is Made in the USA with pure Copper inner conductor and pure Copper braid shielding. The gauge is 16AWG and the outside diameter is 6.14 mm.

Physical

Specifications

:

Inner Conductor Material: Bare Copper
Stranding: 19x29, Gauge: 16-AWG
Dielectric/Insulation Material: Foam Polyethylene
Outer Shield Type: Braid
Outer Shield Material: Bare Copper
Outer Shield Coverage: 96%
Outer Jacket Material: Polyvinyl Chloride
Outer Diameter:. 242" ( 6.14 mm)
Jacket Color: Black

Electrical

Specifications

:

Nominal Capacitance: 26 pF/ft
Nominal Characteristic Impedance: 50 O (ohm)
Nominal. Velocity of
Propagation: 82%

Nominal Attenuation:

50 MHz: 2.50 dB/100ft
100 MHz: 3.70 dB/100ft
200 MHz: 5.40 dB/100ft
400 MHz: 8.00 dB/100ft
1000 MHz: 13.20 dB/100ft

Specifications

:

* Made in The USA, RG8X Bulk Coax Cable
* Inner Conductor: Bare Copper, Outer Shield: Bare Copper
* Jacket: Polyvinyl Chloride (PVC), Color: Black
* Outer Diameter:. 242" ( 6.14 mm)

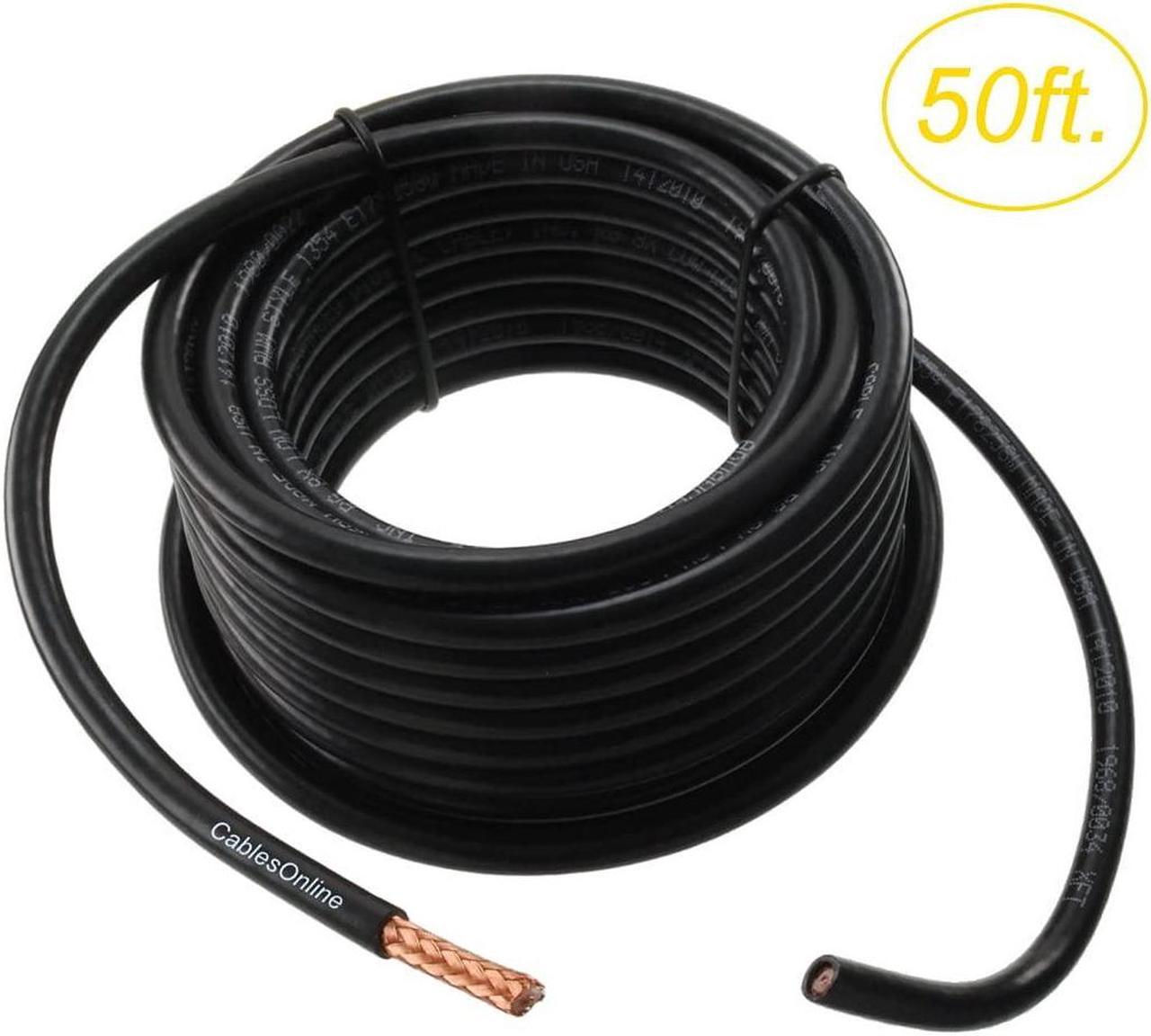

* Length: 50 feet
* Quantity: 1-piece
* UPC: 194732002736

CablesOnline Part Number: R8X-050
