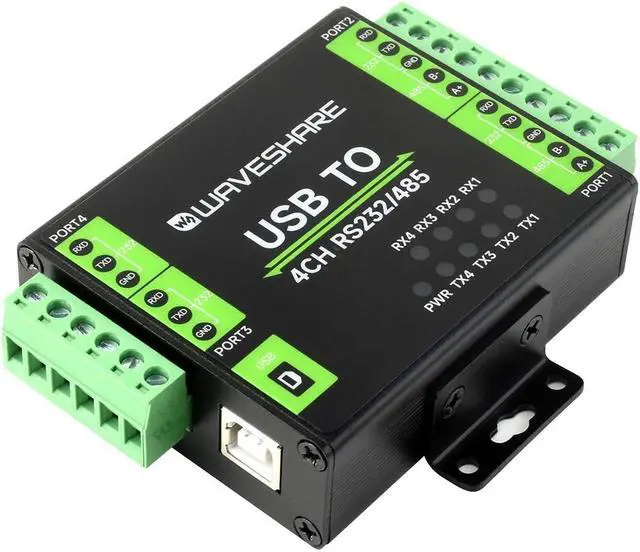

Industrial Isolated USB to RS232/RS485 Converter Adapter, with Original FT4232HL Chip, Supports USB to 4-CH RS232 or USB to 2-CH RS232 + 2-CH RS485, Compatible Linux, Android, Windows 11/10/8.1/8/7

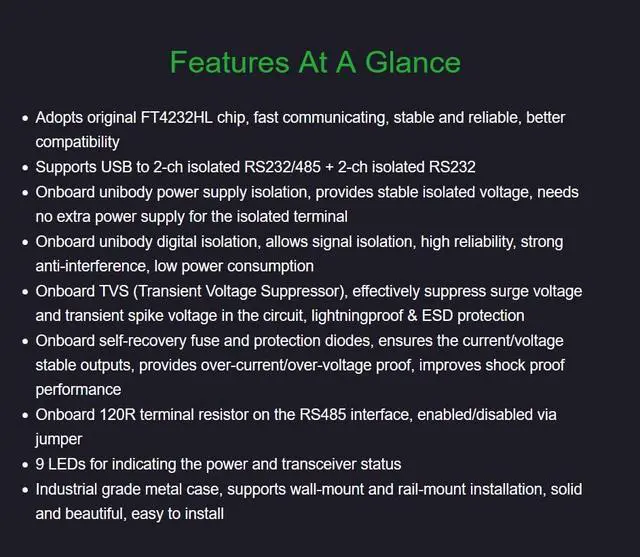

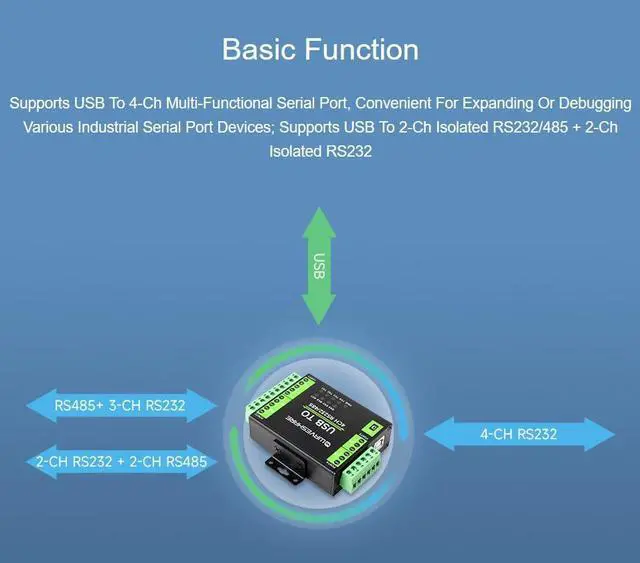

- Industrial Isolated USB To RS232/485 Converter, Supports USB to 4-ch multi-functional serial port, convenient for expanding or debugging various industrial serial port devices; Supports USB to 2-ch isolated RS232/485 + 2-ch isolated RS232
- Onboard original FT4232HL chip, Fast communication, stable & reliable, better compatibility.
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Compatible with Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial USB to 4-ch RS232/485 Converter, USB To 4-ch RS232 or USB To 2-ch RS232 + 2-ch RS485. With Original FT4232HL Chip ^^ Stable transmission ^^ Multiple devices applicable ^^ Multi-OS compatible.
Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install.

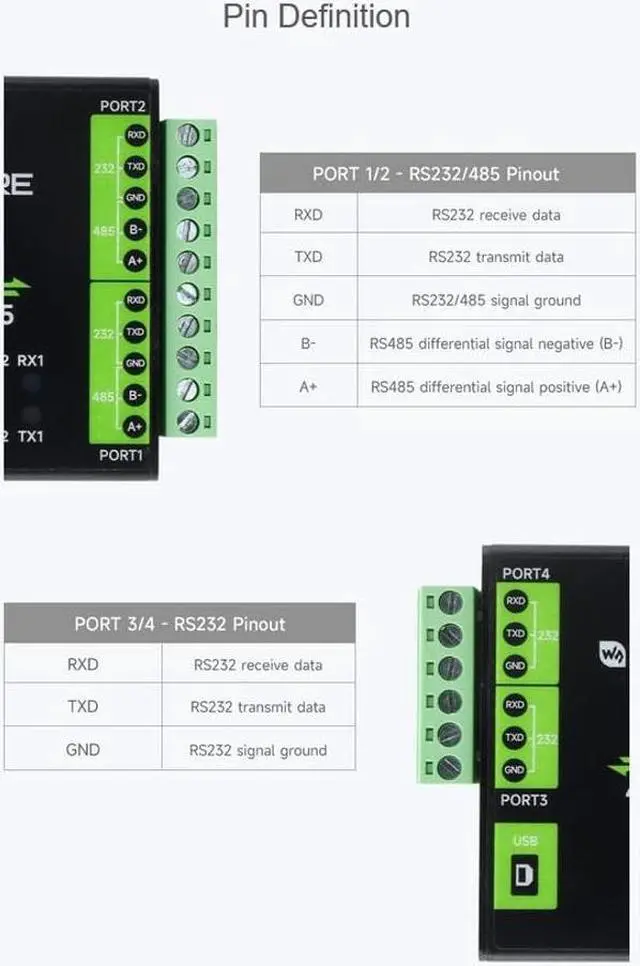

Device port--RS232/485
USB
Operating voltage--5V
Connector--USB-B
Protection--200mA self-recovery fuse, isolated output
Isolated RS232
Connector--Screw terminal
Protection--TVS diode, surge protection & ESD protection, power isolation and signal isolation
Transmission mode--Point-to-point
Baud rate--300bps ~ 921600bps
Isolated RS485
Connector--Screw terminal
Direction control --Hardware automatic control
Protection--TVS diode, surge protection & ESD protection, power isolation and signal isolation
Resistor--Onboard reserved 120R matching resistor, NC by default, enabled via jumper
Transmission mode --Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate--300bps ~ 921600bps
Indicators
PWR--Red power indicator, light up when there is USB connection and voltage is detected
TX1~TX4 --Green TX indicator, light up when the USB port sends data
RX1~RX4 --Blue RX indicator, light up when the device ports send data back
Operating environment
Temperature range -15 ~ 70; Humidity range5%RH~95%RH
Operating system
: Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
Online Tutorial and Online Development Resource: n9. cl/zp6xv
Package Content
USB TO 4CH RS232/485 x1
Rail-mount buckle x1
USB Cable ~ 1.2 m x1
Screwdriver x1
Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install.
Specifications
Device port--RS232/485
USB
Operating voltage--5V
Connector--USB-B
Protection--200mA self-recovery fuse, isolated output
Isolated RS232
Connector--Screw terminal
Protection--TVS diode, surge protection & ESD protection, power isolation and signal isolation
Transmission mode--Point-to-point
Baud rate--300bps ~ 921600bps
Isolated RS485
Connector--Screw terminal
Direction control --Hardware automatic control
Protection--TVS diode, surge protection & ESD protection, power isolation and signal isolation
Resistor--Onboard reserved 120R matching resistor, NC by default, enabled via jumper
Transmission mode --Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate--300bps ~ 921600bps
Indicators
PWR--Red power indicator, light up when there is USB connection and voltage is detected
TX1~TX4 --Green TX indicator, light up when the USB port sends data
RX1~RX4 --Blue RX indicator, light up when the device ports send data back
Operating environment
Temperature range -15 ~ 70; Humidity range5%RH~95%RH
Operating system
: Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
Online Tutorial and Online Development Resource: n9. cl/zp6xv
Package Content
USB TO 4CH RS232/485 x1
Rail-mount buckle x1
USB Cable ~ 1.2 m x1
Screwdriver x1
