AITRIP 10 PCS 0.96 inch 12864 128X64 OLED LCD Display Board Module I2C IIC SSD1306 Driver 4 Pins Compatibile with Raspberry Pi (Blue and Yellow)
- Using only four pins, display offers an easy connection to Compatibile with Raspberry Pi etc via the I2C interface.
- Working voltage: 3.3V - 5V; Size:0.96 inch
- 0.96 inch,Resolution: 128 x 64, View angle: > 160, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
- It compatibles with R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc.
- Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Applications: MP3, MP4, watch Head-mounted displays Meters and other intelligent instruments Design any pretty patterns for your beloved electronic devices!

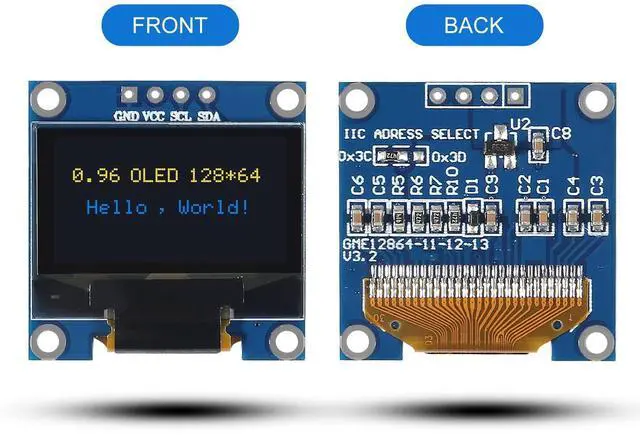

Description: The display consists of 128 x 64 OLED pixels that are individually controlled by the integrated SSD1306 chip. The self-luminous pixels do not require back-lighting, which makes for better performance than a conventional LCD display and low power consumption. Ideal for use with micro-controllers such as STM32, AVR, DSP, ARM, PLC, TTL logic etc. Control via the I2C interface only requires 4 connection pins.
Features: OLED self-luminous, no
backlightSize: 0.96D river
IC:
SSD1306Voltage: 3.3V -5V
DCViewing angle: >
160High resolution: 128 x 64Working
Temperature:
-30C~70CDisplay: 2 rows of yellow, 6 rows of blueModule

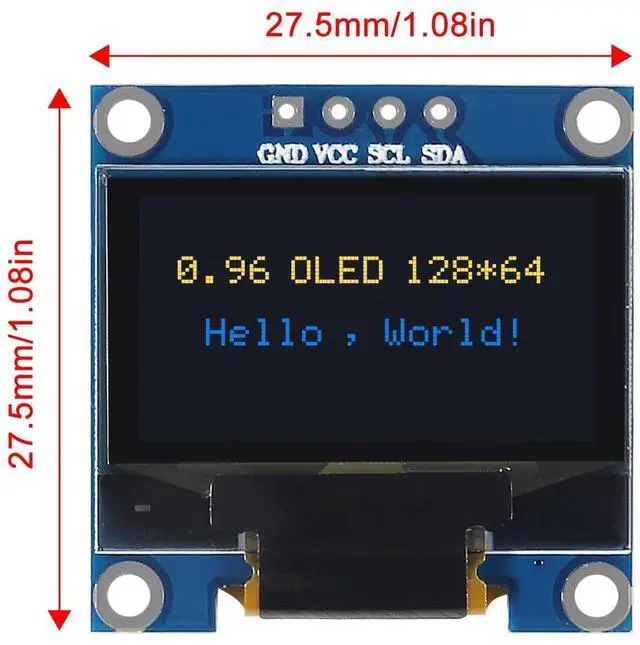

Size: 27mmx
27mm x 4mmScreen material: glass, need good protectionI2C

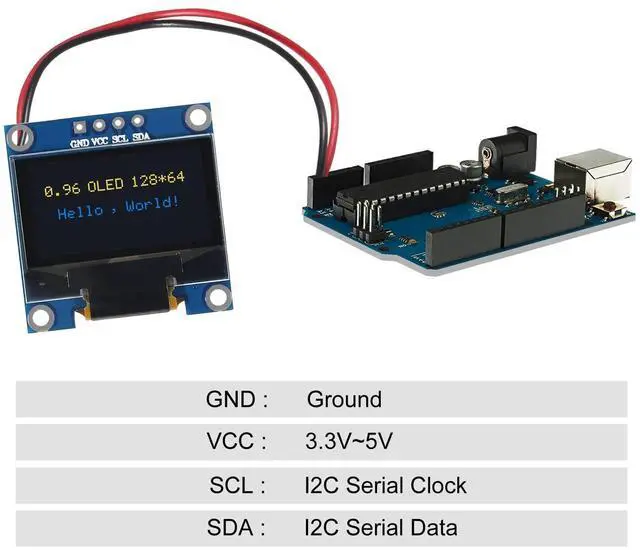

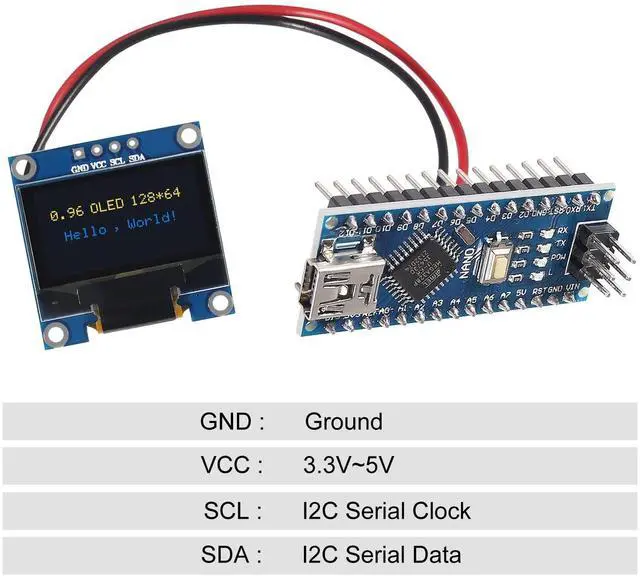

Interface:
GND:
GroundVCC: 3.3V
~5VSCL: I2C
Serial ClockSDA: I2C
Serial DataPackage: 10PCS 0.96 Inch OLED Module 12864 128x64 SSD1306 Driver I2C Serial Self-Luminous Display Board
Description: The display consists of 128 x 64 OLED pixels that are individually controlled by the integrated SSD1306 chip. The self-luminous pixels do not require back-lighting, which makes for better performance than a conventional LCD display and low power consumption. Ideal for use with micro-controllers such as STM32, AVR, DSP, ARM, PLC, TTL logic etc. Control via the I2C interface only requires 4 connection pins.
Features: OLED self-luminous, no
backlightSize: 0.96D river
IC:
SSD1306Voltage: 3.3V -5V
DCViewing angle: >
160High resolution: 128 x 64Working
Temperature:
-30C~70CDisplay: 2 rows of yellow, 6 rows of blueModule
Size: 27mmx
27mm x 4mmScreen material: glass, need good protectionI2C
Interface:
GND:
GroundVCC: 3.3V
~5VSCL: I2C
Serial ClockSDA: I2C
Serial DataPackage: 10PCS 0.96 Inch OLED Module 12864 128x64 SSD1306 Driver I2C Serial Self-Luminous Display Board
