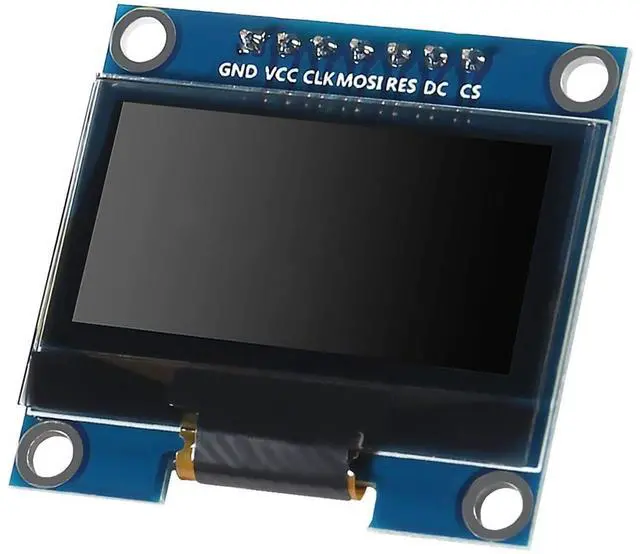

4pcs 1.3" OLED Display Module I2C SPI Serial 128x64 SSH1106 SSD1306 OLED LCD Display LCD Module with Pins for Raspberry Pi/AVR/PIC/STM32 (Blue)
- 1.3 inch oled display module with 128X64 resoluction and SSH1106(SSD1306) chipset
- Ultra-low power consumption: full screen lit 0.08w
- I2C oled lcd display module interface: SPI; 4 fixed bolt holes for easy installation
- Support for multiple operating modes: 3-wire SPI, 4 wire SPI
- Application: These i2c serial 128x64 ssh1106 ssd1306 oled lcd display lcd module can be used for raspberry pi, for 51 series,msp430 series , stm32 etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OLED Display Module Features: 1.
Super wide viewing angle: More than 160 (a screen with the largest viewing angle in the monitor) 2.
Ultra-low power consumption: Normal display 0.08W (far below the TFT display) 3.
Wide voltage supply: DC 3V-5V, 3.3V and 5V level logic compatible, no level shifter IC4. SPI interface and only requires several IOs to light up easily5. Working temperature is industrial (-30C~70C)6.
Support for multiple operating modes: 3-wire SPI, 4 wire SPI, with chip select CS signal, you can achieve multiple SPI device on the same bus work7. OLED screen, internal
drive chip: SH1106 (Operation and SSD1306 same)
Name: 1.3" OLED LCD Display Module SPI SerialDisplay Color: Blue/WhiteModule
Size: 33.6 x 35.6 (mm)
Driver Chip:
SH1106Rresolution: 128*64 (Pixel)
Module Interface: SPI

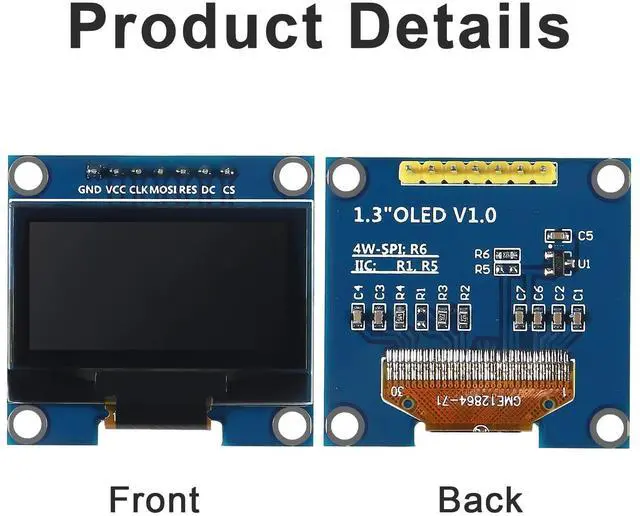

InterfaceSPI Pin Definition:
GND: Power
GroundVCC: Power
+ (DC 3.3 ~5v)SCL: Clock
LineSDA: Data
LineRES: Reset
lineDC:
Data/commandsCS: Chip select (when not use can be grounded directly)
Package Included: 4* 1.3" SPI Serial 128x64 SSH1106 OLED LCD Display LCD Module with Pins
Super wide viewing angle: More than 160 (a screen with the largest viewing angle in the monitor) 2.
Ultra-low power consumption: Normal display 0.08W (far below the TFT display) 3.
Wide voltage supply: DC 3V-5V, 3.3V and 5V level logic compatible, no level shifter IC4. SPI interface and only requires several IOs to light up easily5. Working temperature is industrial (-30C~70C)6.
Support for multiple operating modes: 3-wire SPI, 4 wire SPI, with chip select CS signal, you can achieve multiple SPI device on the same bus work7. OLED screen, internal
drive chip: SH1106 (Operation and SSD1306 same)

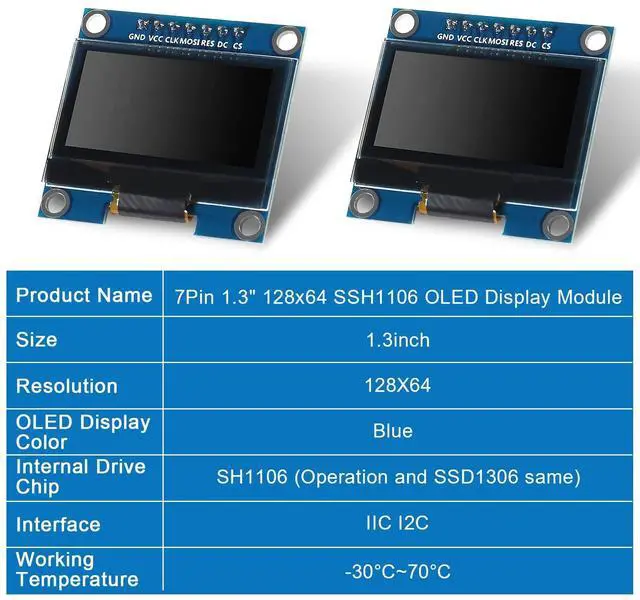

Specifications
: ProductName: 1.3" OLED LCD Display Module SPI SerialDisplay Color: Blue/WhiteModule
Size: 33.6 x 35.6 (mm)
Driver Chip:
SH1106Rresolution: 128*64 (Pixel)
Module Interface: SPI
InterfaceSPI Pin Definition:
GND: Power
GroundVCC: Power
+ (DC 3.3 ~5v)SCL: Clock
LineSDA: Data
LineRES: Reset
lineDC:
Data/commandsCS: Chip select (when not use can be grounded directly)
Package Included: 4* 1.3" SPI Serial 128x64 SSH1106 OLED LCD Display LCD Module with Pins
