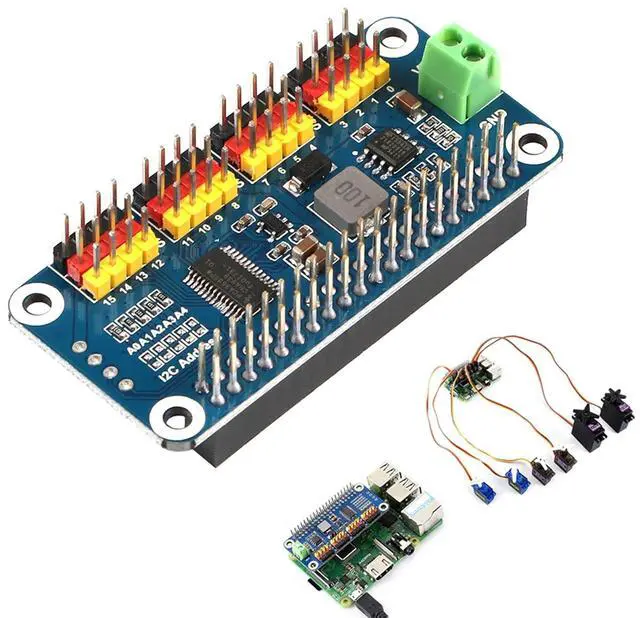

MakerFocus PWM Servo Motor Driver IIC Module 16 Channel PWM Outputs 12 Bit Resolution I2C Compatible with Raspberry Pi 5 4 3B+ 3B Zero/Zero W/Zero WH and Jetson Nano
- Servo Motor Driver: You may have tried to control a robotic arm or a hexapod walker by using the Raspberry Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver Board for you

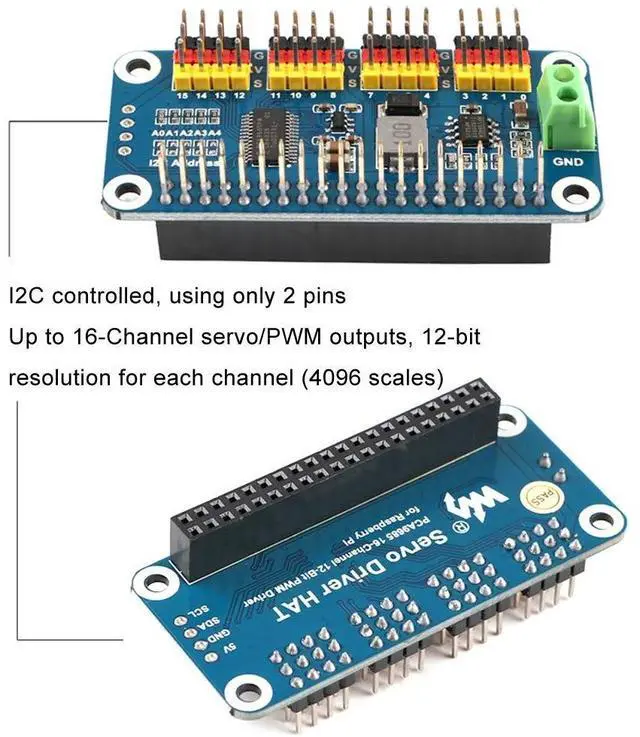

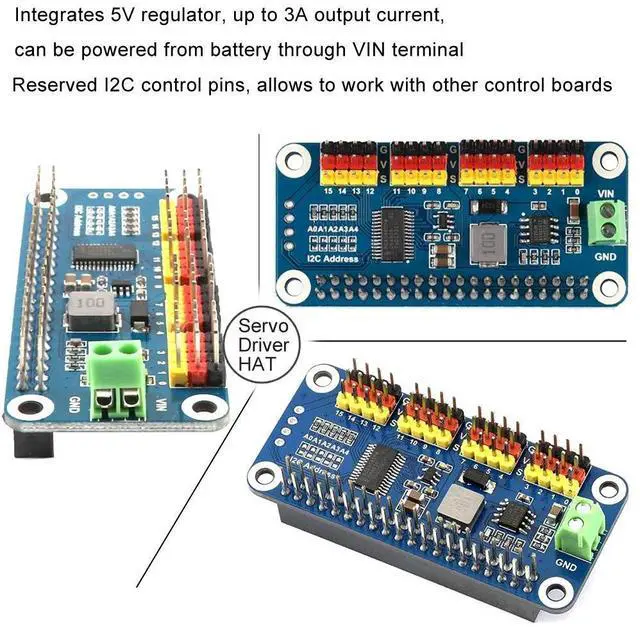

- I2C controlled, using only 2 pins; Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales); Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal

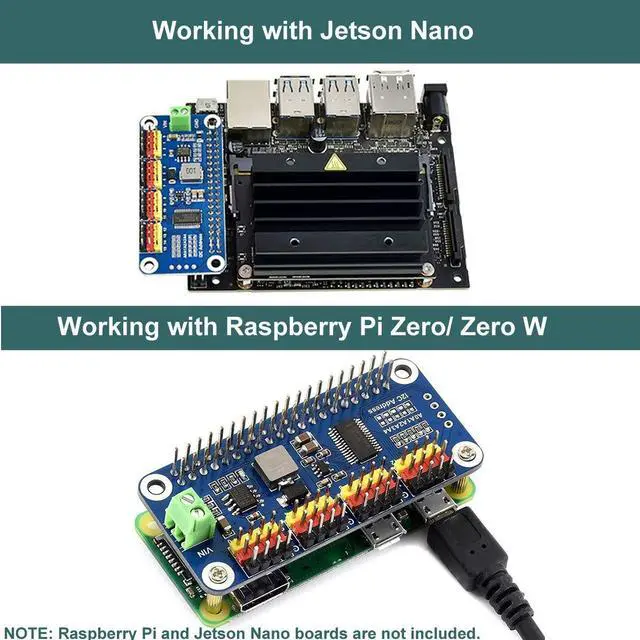

- Raspberry Pi connectivity, compatible with Raspberry Pi 4 3B+ 3B 2B+ 2B Zero/Zero W/Zero WH and Jetson Nano
- Reminder: (1)If you only connect 5V power supply to USB interface, servo cannot be driven; (2)You should connect higher power supply for higher-power servo; (3)Make sure servo are connected properly, otherwise they will not move
- Note: The Raspberry Pi and Servo in the photo are not included
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

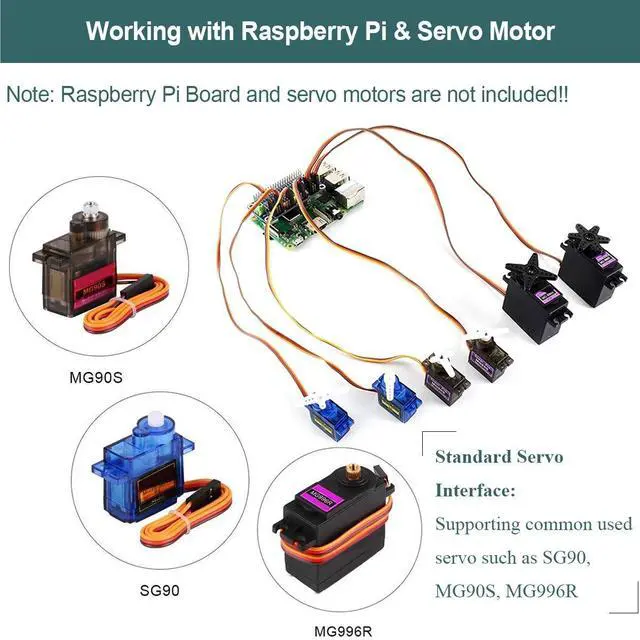

Features: Raspberry Pi connectivity, compatible with Raspberry Pi 4 3B+ 3B 2B+ 2B Zero/Zero W/Zero WH and Jetson NanoI2C controlled, using only 2 pinsUp to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales) Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminalStandard servo interface, supports common used servo such as SG90, MG90S, MG996R, etcReserved I2C control pins, allows to work with other control boardsSpecifications: Power
supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
Servo voltage: 5VLogic
voltage: 3.3VD
river: PCA9685Control
interface:
I2CDimension: 65mm
x 30mmMounting hole size: 3.0 mmPackage
Including: 1 * PWM Servo Motor Driver IIC Module2 * RPI Screws Pack
supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
Servo voltage: 5VLogic
voltage: 3.3VD
river: PCA9685Control
interface:
I2CDimension: 65mm
x 30mmMounting hole size: 3.0 mmPackage
Including: 1 * PWM Servo Motor Driver IIC Module2 * RPI Screws Pack
