PCIe to 4-Ch PCIe FFC Adapter Board Compatible with Raspberry Pi 5, Expands PCIe Interface of Pi 5 to 4-Ch PCIe FFC Connectors, Supports Stacking Multiple PCIe Hats

Be the first to review this product...

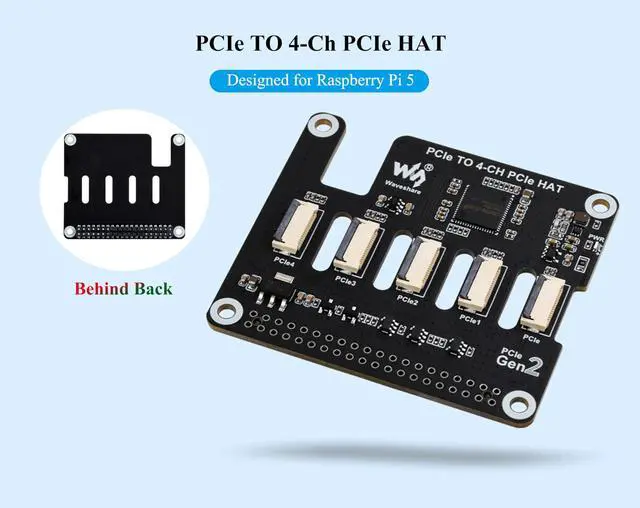

4-Ch PCIe FFC Adapter Board Compatible with Raspberry Pi 5, Expands The PCIe Interface Of The Pi 5 To 4-Ch PCIe FFC Connectors, Supports Stacking Multiple PCIe HATs.

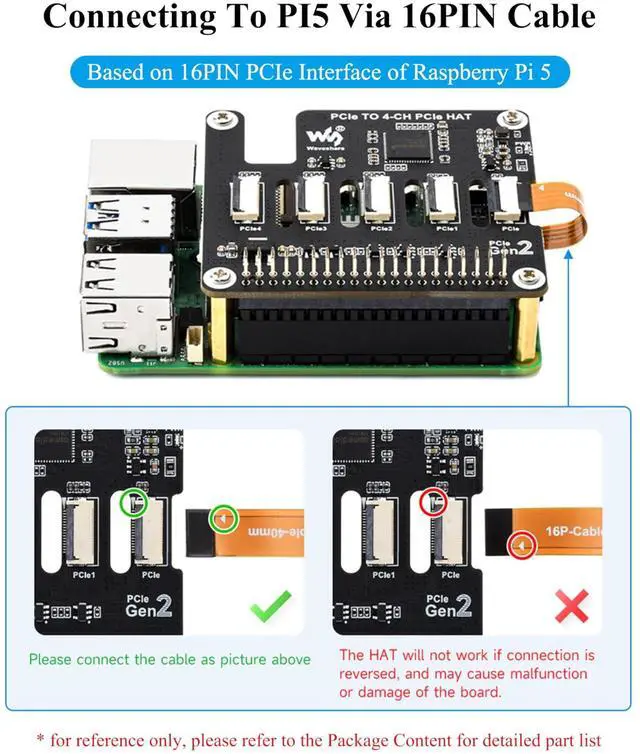

Connecting to PI5 via 16PIN Cable, based on 16PIN PCIe Interface of RPi 5.

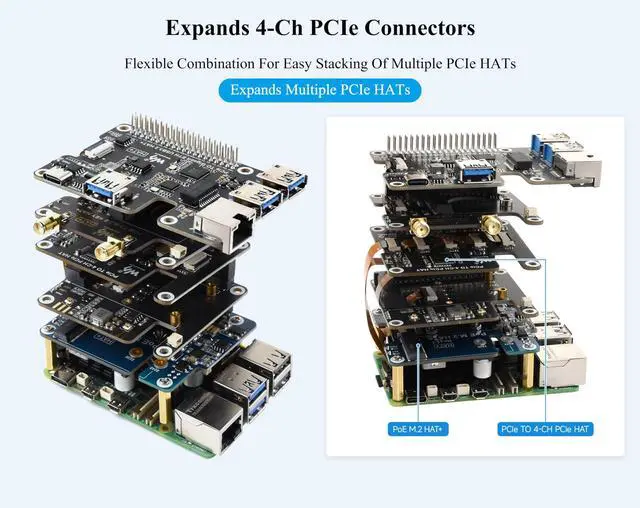

Expands 4-Ch PCIe Connectors. Flexible Combination for Easy Stacking of Multiple PCIe HATs.
PCI-E1 only supports Gen2. Onboard working indicator, PWR stays on when powered on.
Boot PCIe: 1. Enable PCIE interface( PI5B defaults to enabling the PCIE interface. If it fails to boot, add the following to /boot/firmware/config.txt: dtparam=pciex1 ) 2. The module only supports PCIE Gen2 x1
Comes with Online Development Resources and Tutorials to help you get started quickly: bit.ly/45ToZOf

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

4-Ch PCIe FFC Adapter Board Compatible with Raspberry Pi 5, Expands The PCIe Interface Of The Pi 5 To 4-Ch PCIe FFC Connectors, Supports Stacking Multiple PCIe HATs. ^^ Connecting to PI5 via 16PIN Cable, based on 16PIN PCIe Interface of RPi 5. ^^ Expands 4-Ch PCIe Connectors. Flexible Combination for Easy Stacking of Multiple PCIe HATs. ^^ PCI-E1 only supports Gen2. Onboard working indicator, PWR stays on when powered on.
^^ Boot PCIe: 1. Enable PCIE interface( PI5B defaults to enabling the PCIE interface. If it fails to boot, add the following to /boot/firmware/config.
txt: dtparam=pciex1 ) 2. The module only supports PCIE Gen2 x1 ^^ Comes with Online Development Resources and Tutorials to help you get started quickly: bit. ly/45ToZOf
