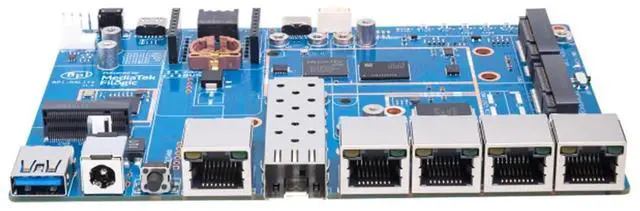

    Banana Pi BPI-R4 Lite WiFi 7 Router Dev Board Kit OpenWRT - MediaTek MT7987A SoC - 2GB DDR4 RAM 8GB eMMC, 1x 2.5G SFP RJ45 WAN, 4X GbE Gigabit Ethernet for NAS Smart Home Gateway (2GB, Bundle1)

    Be the first to review this product...
    • [MediaTek MT7987A SoC] Banana Pi BPI-R4 Lite router dev board kit with MediaTek MT7987A (Filogic 880) Quad-core ARM Cortex-A53 CPU design, 2GB/4GB DDR4 RAM 8GB eMMC, 256MBSPI-NAND Flash and 32MBSPI-NOR flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board.
    • [MediaTek MT7995AV Wi-Fi 7 CPU] BPI-R4-NIC-BE14 is a 51x82 mm WiFi 7 module with MediaTek MT7995AV CPU, supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant, 2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, throughput from an extended distance.
    • [BPI-R4-NIC-BE14 WiFi 7 Module] Banana Pi BPI-R4-NIC-BE14 Wifi7 Module support the optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which ful
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    -Specification-HardWare Specification of Banana Pi R4_LiteCPUMediaTek MT7987A Quad-core Arm Cortex-A53SDRAM2GB DDR4 (SOC support can up to 4GB) On board StorageMicroSD (TF) card, 8GB eMMC onboardGPIO2x8 PIN MikroBUS Header for expanding application, some of which can be used for specific functions including UART, I2C, SPI, PWM. Onboard Network5 Port 10/100/1000Mbps EthernetSFP1x 2.5G SFPWifiWifi6/Wifi 7mini PCIE1x miniPCIe slots with PCIe 3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) and 1x miniPCIe slot with USB 2.0 interfaceM. 2 interface1x M. 2 KEY-B slot with USB 3.0 for 5G ModuleUSB1xUSB 3.0 slotButtonsReset button, WPS botton, boot switchLedsPower status Led and
    RJ45 LedDC Power: 12V/ 5.2

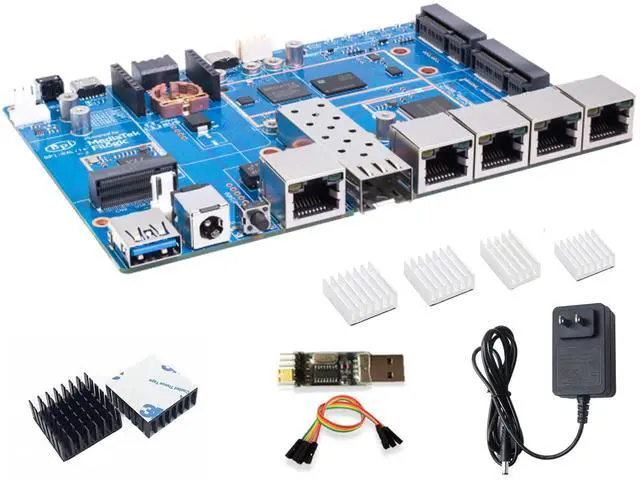

    ADimension: 100.5 mm x 148mm x 20mmWeight: 250g-Package Content-Banana Pi R4 Lite Router Board x112V 5A power supply x1Debugging serial port x1Heat sink x3-Technical Support-Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#-@, &-. )".
