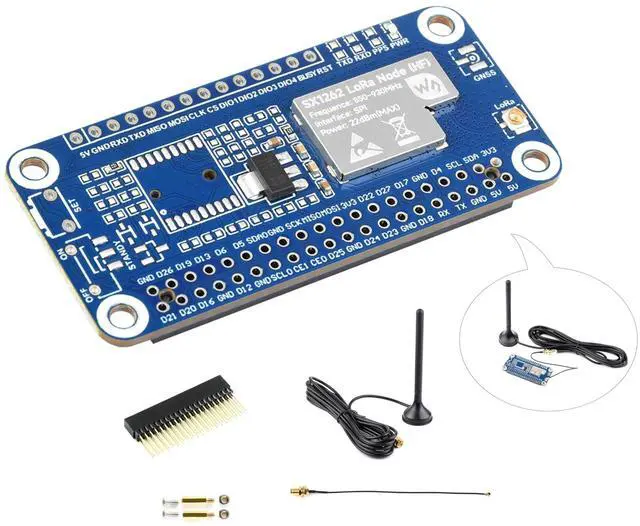

Main image of SX1262 868/915M LoRaWAN HAT SX1262 RF Chip LoRa Module Expansion Board Compatible withRaspberry Pi 5/4B/3B+/Pi3B/Pi Zero W WH/Zero 2W, with Magnetic CB Antenna, Suitable for Sub-GHz Band Network

Alt view image 2 of 5 - SX1262 868/915M LoRaWAN HAT SX1262 RF Chip LoRa Module Expansion Board Compatible withRaspberry Pi 5/4B/3B+/Pi3B/Pi Zero W WH/Zero 2W, with Magnetic CB Antenna, Suitable for Sub-GHz Band Network

Alt view image 3 of 5 - SX1262 868/915M LoRaWAN HAT SX1262 RF Chip LoRa Module Expansion Board Compatible withRaspberry Pi 5/4B/3B+/Pi3B/Pi Zero W WH/Zero 2W, with Magnetic CB Antenna, Suitable for Sub-GHz Band Network

Alt view image 4 of 5 - SX1262 868/915M LoRaWAN HAT SX1262 RF Chip LoRa Module Expansion Board Compatible withRaspberry Pi 5/4B/3B+/Pi3B/Pi Zero W WH/Zero 2W, with Magnetic CB Antenna, Suitable for Sub-GHz Band Network

Alt view image 5 of 5 - SX1262 868/915M LoRaWAN HAT SX1262 RF Chip LoRa Module Expansion Board Compatible withRaspberry Pi 5/4B/3B+/Pi3B/Pi Zero W WH/Zero 2W, with Magnetic CB Antenna, Suitable for Sub-GHz Band Network

Shop All Belva Products Products | Visit Aptly Tech Store

SX1262 868/915M LoRaWAN HAT SX1262 RF Chip LoRa Module Expansion Board Compatible withRaspberry Pi 5/4B/3B+/Pi3B/Pi Zero W WH/Zero 2W, with Magnetic CB Antenna, Suitable for Sub-GHz Band Network

This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability.
Suitable for Sub-GHz frequency band network, 850~930MHz frequency band.
Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network.
with R Pi 40PIN GPIO header, compatible with RPi 5/4B/3B+/Pi3B/2B/ Pi Zero WH/Zero 2W,etc.
The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
Application examples: Industrial control, intelligent home, and data acquisition...
Comes with Online Development Resources /User Manual, please follow there: bit.ly/3ErTCyF

Overview

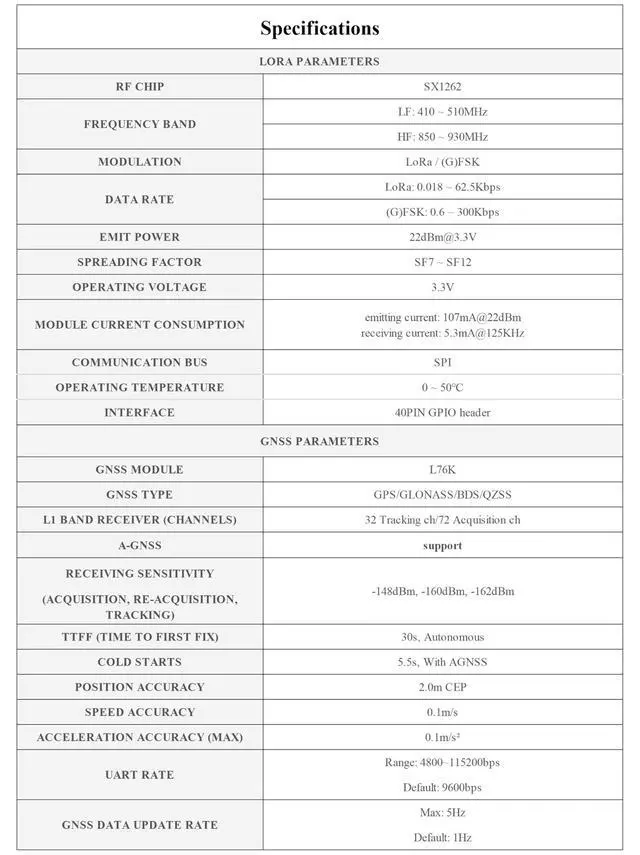

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

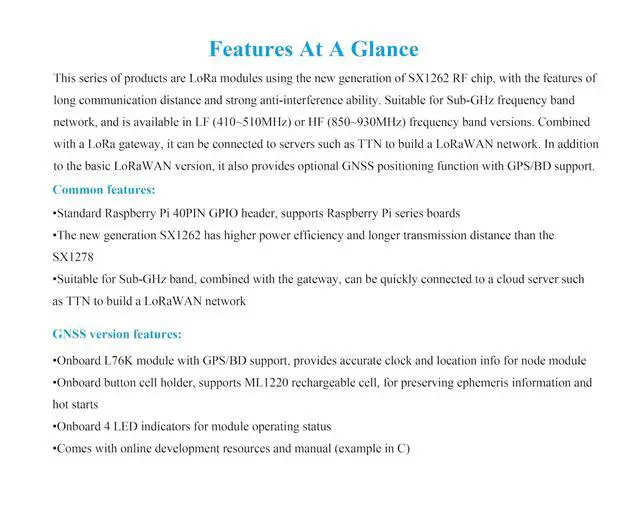

This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability. ^^ Suitable for Sub-GHz frequency band network, 850~930MHz frequency band. ^^ Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network. ^^ with R Pi 40PIN GPIO header, compatible with RPi 5/4B/3B+/Pi3B/2B/ Pi Zero WH/Zero 2W, etc. ^^ The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278 ^^
Application examples: Industrial control, intelligent home, and data acquisition... ^^ Comes with Online Development Resources /User Manual, please
follow there: bit. ly/3ErTCyF
