FanyiTek 3.99" 3.99 inch 400x960 450nit Mini IPS MIPI LCD Screen and Micro USB Control Board 41 pins
- Square MIPI screenIPS full viewing angle,Great resolution 400x960 ,outline size:42.5102.082(HVD)mm,display area:39.18 94.03(HV)mm,450nit high brightness ,WLED backlight ,input voltage: 1.8/3.3 V .

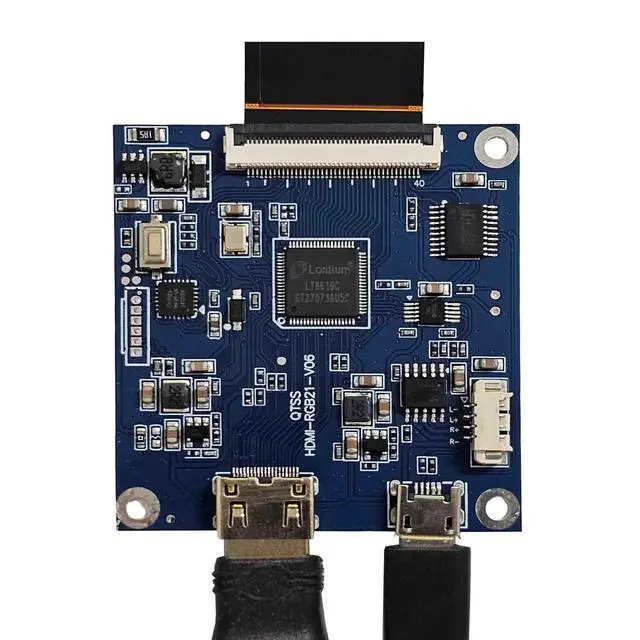

- Micro controller boardVideo input :port ,board size: 50mm x 45mm x 5mm,pls use it in insulated environment.
- Input Power5Vdc More than 0.5A,Pls prepare it seperately .

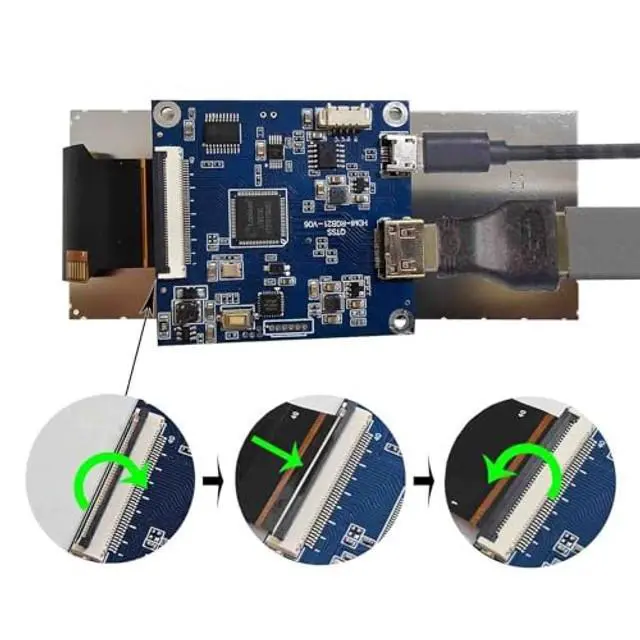

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.

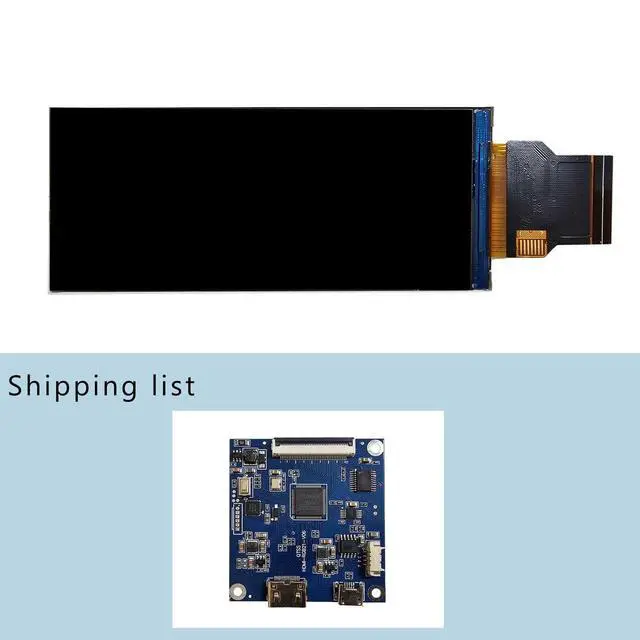

- Packing lists1 LCD Controller Board VS-RGB21-V06,13.99inch 400X960 VS399001C40 Bar LCD Screen
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
LCD Controller Board: Input
Power Adapter: 5Vdc More than 0.5A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: Micro
H/DBoard Size: 55mm x 45mm x 4.5 mm 3.99" VS399001C40 400x960 Bar LCD ScreenDisplay New Mode2, Normally Black, TransmissiveResolution 400 (RGB) 960Outline Size 42.5102. 082 (HVD) mmDisplay Area 39.18 94.03 (HV) mmBrightness 450 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]Interface MIPI, 40 pins, FPC
Backlight WLED
Input Voltage 1.8 / 3.3 V (Typ.
)Packing list: 1 LCD Controller Board 13.99 inch 400X960 VS399001C40 Bar LCD Screen
Power Adapter: 5Vdc More than 0.5A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: Micro
H/DBoard Size: 55mm x 45mm x 4.5 mm 3.99" VS399001C40 400x960 Bar LCD ScreenDisplay New Mode2, Normally Black, TransmissiveResolution 400 (RGB) 960Outline Size 42.5102. 082 (HVD) mmDisplay Area 39.18 94.03 (HV) mmBrightness 450 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]Interface MIPI, 40 pins, FPC
Backlight WLED
Input Voltage 1.8 / 3.3 V (Typ.
)Packing list: 1 LCD Controller Board 13.99 inch 400X960 VS399001C40 Bar LCD Screen
