SMTAV NDI PTZ Camera, 12x Optical Zoom, and 16x Digital Zoom,high-Speed PTZ, HDMi USB3.0 Network Output,NDI Support Full HD Video Conference Cameras
- Full Function USB Interface: Full function USB interface, compatible with USB3.0 and USB2.0, support audio, compressed video output and UVC v1.1~1.5 protocol.
- 1080P Full HD: Equip with 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and ach+A39:A51ieve quality image, The output frame rate can reach 60fps under 1080P.
- Use 72.5 wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom. Support HMDI, USB3.0, network interface can output 1080P video at the same time.
- PoE support: Wired networks support PoE power supply. Control, power supply, video, and audio can be completed by using only one cable.

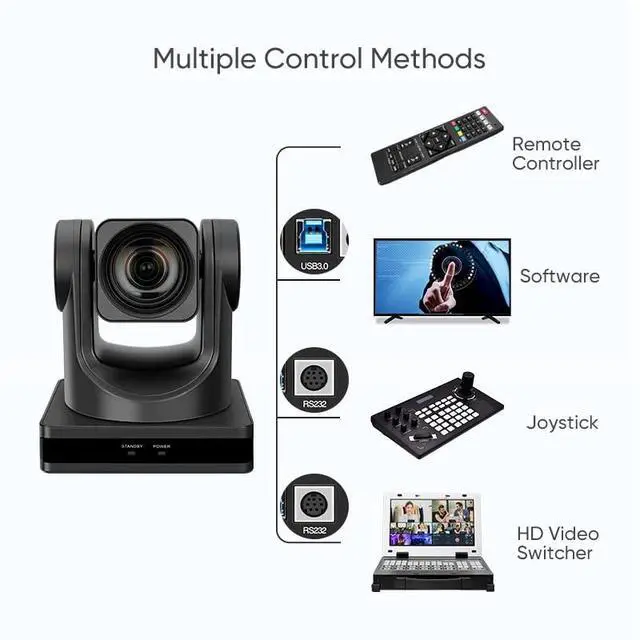

- Remote Control: Multiple control modes, using RS232, RS485, network and USB to control the camera.
- Support USB 5V power supply, 12V power adapter power supply and PoE power supply.
- NDI Support, included NDI Licnese, Camera comes with official certificated NDI License by Newtek,you can acce
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Camera Video System: 1080P601080P501080P301080P25720P60720P50
Sensor: 1/ 2.8 '', CMOS, Effective
Pixel: 2.07M
Lens: 12x, f 3.5 mm ~ 42.3 mm, F 1.8 ~ F 2.8
Minimal Illumination: 0.5L ux @ (F 1.8, AGC
ON) Digital Noise Reduction: 2D&3D Digital Noise Reduction
Video S/N: 55dB Angle of
View H: 72.5 ~ 6.9 /
V: 44.8 ~ 3.9
Rotation Range H: 170
V: -30 ~ +90 H & V Flip Support Image Freeze Support Number of Preset 255 Preset Accuracy 0.1USB Featured Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android Color System / Compression YUY2 / H. 264 / MJPEG
Video Format YUY2: Max 1080P@60fps Audio on
USB Support UVC PTZ control: SupportIPC Features Video Compression H. 264/MJEPG Video Stream Main Stream, Sub Stream Main Stream Resolution 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 Sub Stream Resolution 1280x720, 1024x576, 720x480, 720x408, 640x360, 320x240320x180 Audio Compression AAC Support protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.

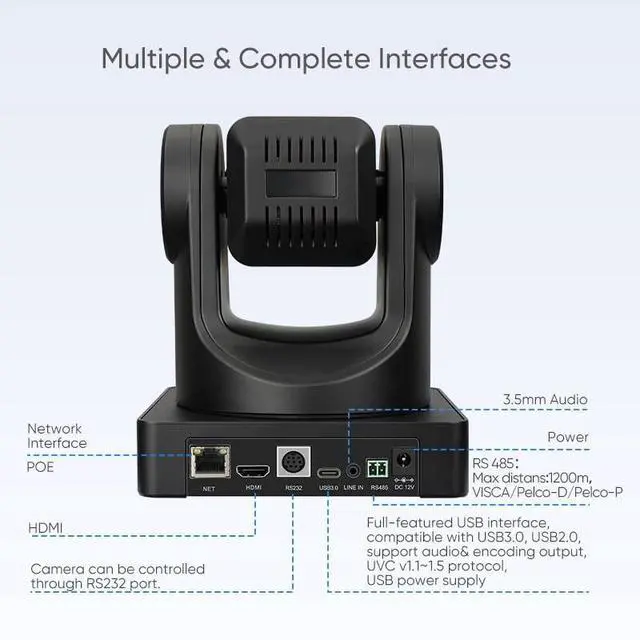

Input/Output Interface Video Oupputs: USB 3.0, HDMI 1.4 b, 10M/100M
Ethernet Audio Interface: 3.5 mm Audio Interface, Line In Communication Interface 1xRS232 1xRS485
Protocol: VISCA/Pelco-D/Pelco-P Power Jack JEITA typeDC IN 12V/USB B typeDC IN 5V/PoEGeneric Specification Input Voltage DC 12V/DC 5V/PoE( 802.3 af) Power Consumption 12Wmax Size 144mm x 144mm x 167.9 mm
Sensor: 1/ 2.8 '', CMOS, Effective
Pixel: 2.07M
Lens: 12x, f 3.5 mm ~ 42.3 mm, F 1.8 ~ F 2.8
Minimal Illumination: 0.5L ux @ (F 1.8, AGC
ON) Digital Noise Reduction: 2D&3D Digital Noise Reduction
Video S/N: 55dB Angle of
View H: 72.5 ~ 6.9 /
V: 44.8 ~ 3.9
Rotation Range H: 170
V: -30 ~ +90 H & V Flip Support Image Freeze Support Number of Preset 255 Preset Accuracy 0.1USB Featured Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android Color System / Compression YUY2 / H. 264 / MJPEG
Video Format YUY2: Max 1080P@60fps Audio on
USB Support UVC PTZ control: SupportIPC Features Video Compression H. 264/MJEPG Video Stream Main Stream, Sub Stream Main Stream Resolution 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 Sub Stream Resolution 1280x720, 1024x576, 720x480, 720x408, 640x360, 320x240320x180 Audio Compression AAC Support protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.
Input/Output Interface Video Oupputs: USB 3.0, HDMI 1.4 b, 10M/100M
Ethernet Audio Interface: 3.5 mm Audio Interface, Line In Communication Interface 1xRS232 1xRS485
Protocol: VISCA/Pelco-D/Pelco-P Power Jack JEITA typeDC IN 12V/USB B typeDC IN 5V/PoEGeneric Specification Input Voltage DC 12V/DC 5V/PoE( 802.3 af) Power Consumption 12Wmax Size 144mm x 144mm x 167.9 mm
