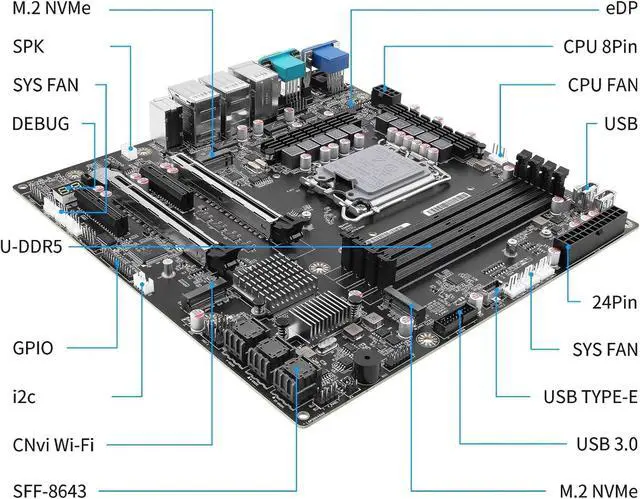

Q670 12-Bay NAS M-ATX Motherboard(LGA1700, 12th/13th/14th Gen. Desktop Processor), 4* U-DIMM DDR5 2* M.2 NVMe, 12* SATA 3.0, 1* Type-C 20Gbps, 6* USB, DP/HDMI/VGA/eDP, COM Port(Motherboard+3*SF8643)

LGA1700 Socket: Q670 12-Bay NAS board is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen. desktop processors, and we recommend the T-Series desktop processors, which are more energy efficient. It's 9.6" x 9.6" Micro ATX form factor, basic TDP is 125W, and it supports Windows 10/11, Linux ^^
High Productivity: 4* desktop U-DIMM DDR5 RAM (non-ECC), MAX 128GB, 2* M. 2 NVMe (PCIe 4.0 x4) 2280/22110 size. Expandable to 12* SATA via 3* SFF-8643 cable we supplied, stable and ultra-fast transfer speed. 1* Type-C (USB 3.2 Gen2 x2 20Gbps, Supports data transfer only), 4* USB 3.0, 2* USB 2.0 ^^ i226-LM

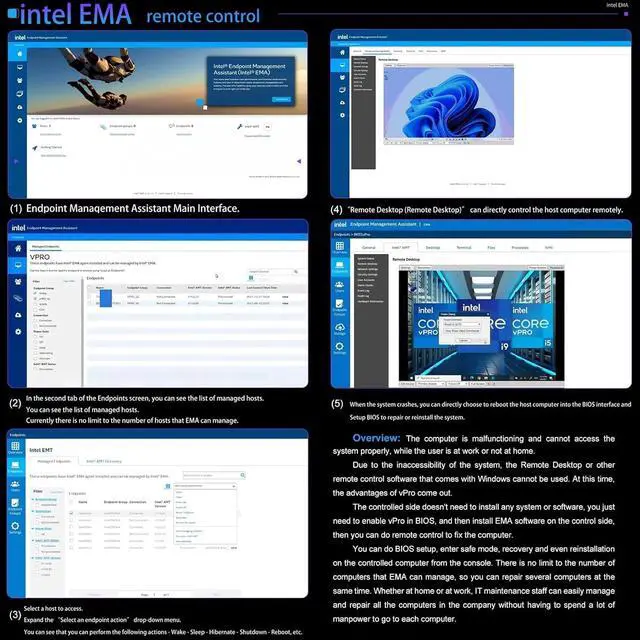

Port: This Q670 NAS motherboard has 2* i226 2.5G bE port and 1* i226-LM 2.5G bE port. i226-LM port supports vPro function, but it requires the processor is integrated graphics and setting in BIOS. The vPro is essential for remotely repairing a malfunctioning computer that is unable to access the system ^^
Quadruple Display: This micro ATX board has HDMI 2.0 and DP 1.4 ports to support 4K@60Hz and VGA and eDP ports, and it has PCIe x16 slots and 2* PCIe x4 slots which can be expanded to graphics cards, PCI-E network cards, support for various types of PCI-E protocol expansion accessories ^^

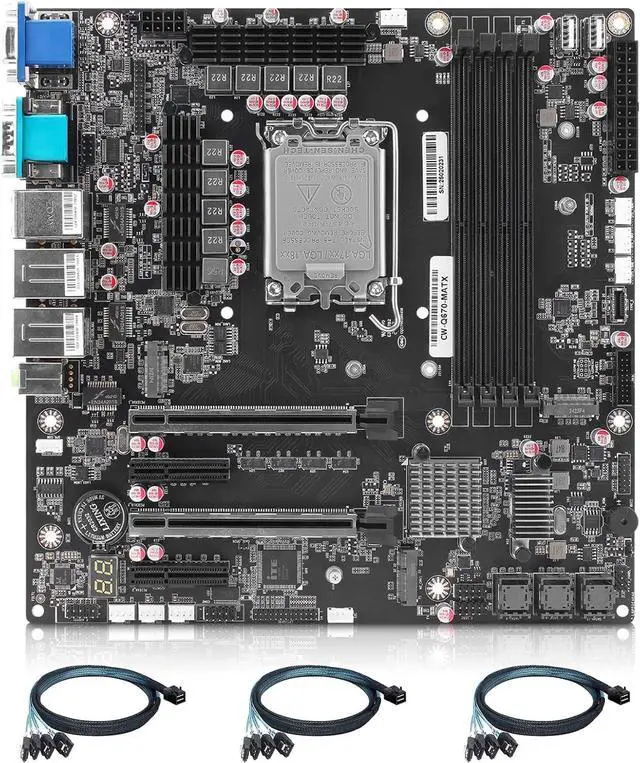

Heat Dissipation: It is compatible with LGA1700 series processors cooling fan. Package includes 1x Q670 12-Bay NAS M-ATX motherboard, 3x SFF-8643 cable, 1x I/O Shield, some screws, 1x warranty card ^^
NOTE: The motherboard requires both 24PIN + 8PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up. For user manual, please leave a msg to the seller
