Transwan USB 2.0/1.1 Over Fiber Extender to Max 5 Kilometers Single-Mode Fibers, Plug & Play, Supports Oscilloscope Kit & Data Acquisition Device (DAQ) Devices etc
- Supported USB1.1 and USB 2.0 devices Such as: Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter, Spectrum Analyzer,Arbitrary Waveform Generator, Oscilloscope Kit, Data Acquisition Device (DAQ), Audio DAC(but Except RME's), Akai APC devices etc.
- USB 2.0/1.1 Devices over Max 5 Kilometers 2 Cores Single-mode Fiber
- Over 2 cores fibers (Full Duplex), pure hardware design, no driver needed, compatible with all operation systems, support plug and play
- Auto recognition of High-speed25 Mbps480 MbpsFull-speed500 Kbps12 MbpsLow-speed10 Kbps1.5 MbpsUSB device.
- Be compatible with all Operation systems like Windows, Mac OS, LINUX, UNIX etc.
- Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

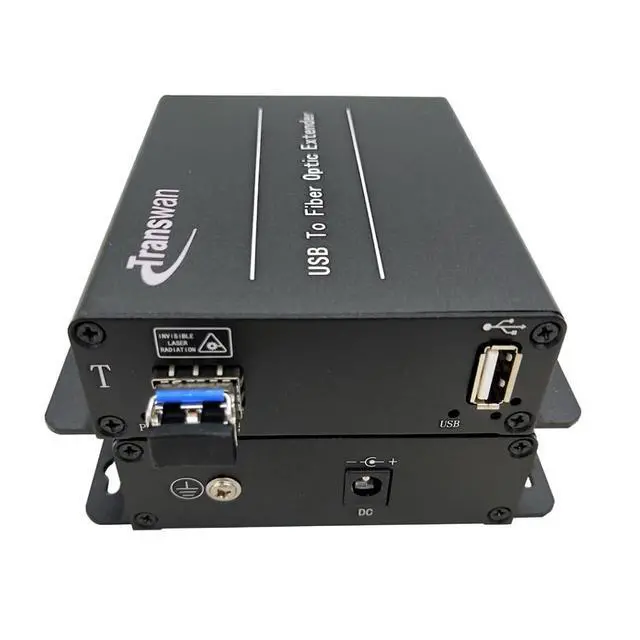

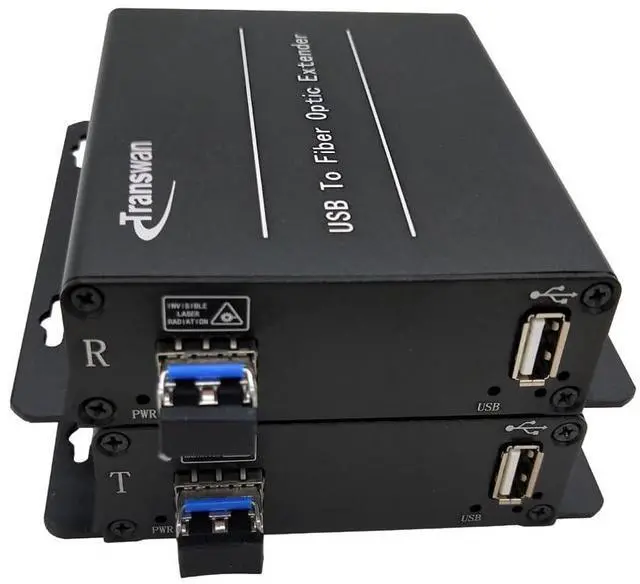

BY-USB-395DF-FBA includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 2 cores fiber cable, max distance 5 Kilometers Singlemode FiberIt can be widely used in Military Command and Control System, Police Command and Control System, Traffic Management System, Energy and Electricity Supply IndustryGovernment Office, Medical System, Commercial Presentation, Multimedia and Public Utilities etc. Supported USB 1.1 and USB 2.0 devices
Such as: Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter, Spectrum Analyzer, Arbitrary Waveform Generator 33250A & 82357B, Oscilloscope Kit, Data Acquisition Device (DAQ) etc etc. SPECS
Optical Connector: 2 x
LCWave length: 1310nmSupport
Fiber types: 9/125m(Single-mode
Fiber)Fiber Distance: 0~ 5 KilometersPhysical Size (L
W H): 104mm
x104mm x28mmCase:
AluminumColor: BlackN. W.: 0.75K gPower
Voltage: 5~12V
DCTransmitter power consumption: <10WReceiver
power consumption: < 3.5WE nvironment
Working temperature: -20-70Storage
temperature:
-40-85Humidity: 0-95% (non-condensing)USB interface (Type
A):
Receiver: 1 port, connect to
PCTransmitter: 1 port, connect to
USB 2.0 devicePackage: 1. 1 x transmitter (client side). 2. 1 x receiver (host side). 3. 1 x Power supply adapters DC 5~12V with US plug for the transmitter. 4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable. 5. 1 x Manual.
Such as: Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter, Spectrum Analyzer, Arbitrary Waveform Generator 33250A & 82357B, Oscilloscope Kit, Data Acquisition Device (DAQ) etc etc. SPECS
Optical Connector: 2 x
LCWave length: 1310nmSupport
Fiber types: 9/125m(Single-mode
Fiber)Fiber Distance: 0~ 5 KilometersPhysical Size (L
W H): 104mm
x104mm x28mmCase:
AluminumColor: BlackN. W.: 0.75K gPower
Voltage: 5~12V
DCTransmitter power consumption: <10WReceiver
power consumption: < 3.5WE nvironment
Working temperature: -20-70Storage
temperature:
-40-85Humidity: 0-95% (non-condensing)USB interface (Type
A):
Receiver: 1 port, connect to
PCTransmitter: 1 port, connect to
USB 2.0 devicePackage: 1. 1 x transmitter (client side). 2. 1 x receiver (host side). 3. 1 x Power supply adapters DC 5~12V with US plug for the transmitter. 4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable. 5. 1 x Manual.
