ACM8CB-Upgraded Channel Access Power Controller Module, Compatible with Altronix ACM8CB Specifications, for Security and Access Control Systems, Supports 12-24 Volt DC Input. Sold by YABUYALI.

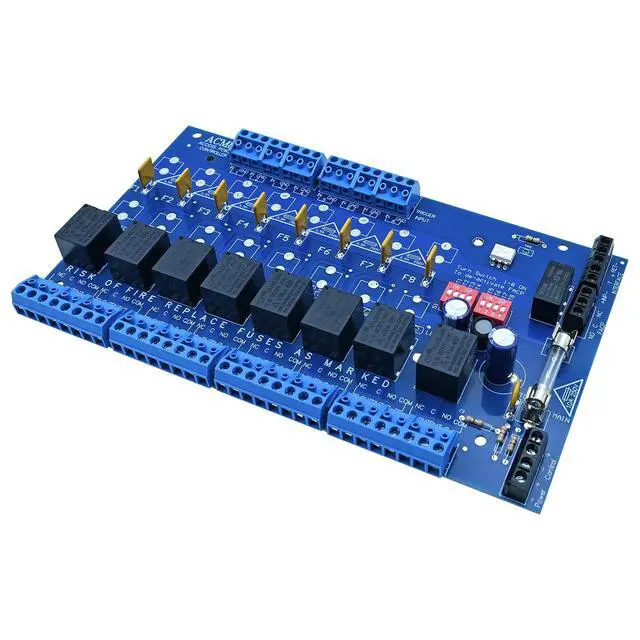

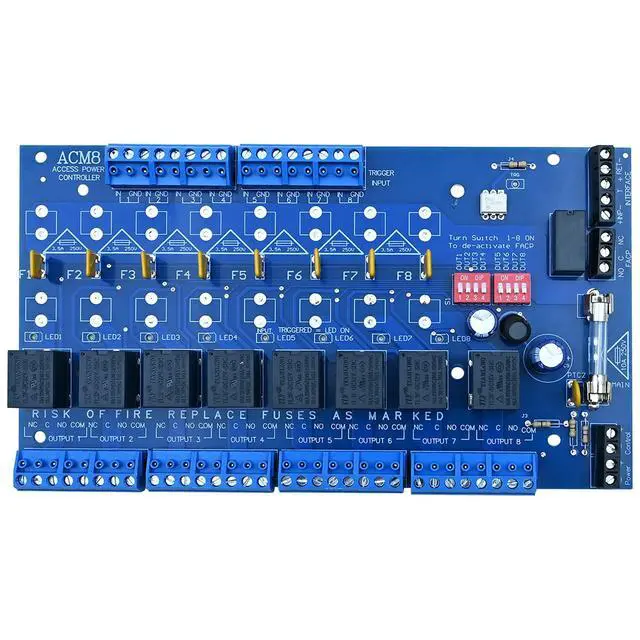

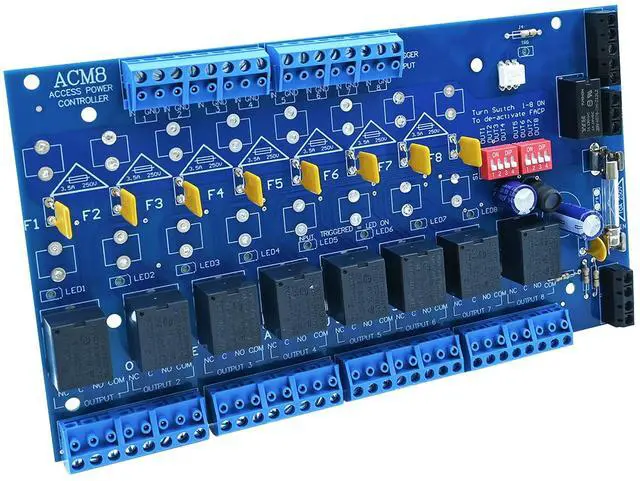

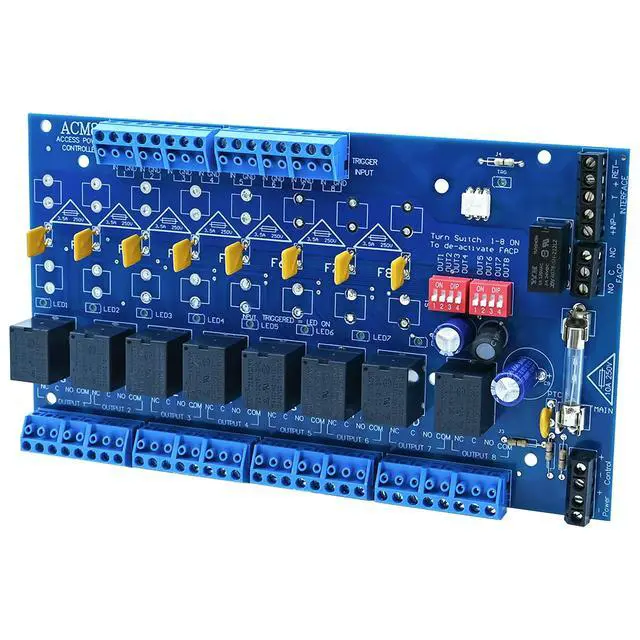

ACM8 & ACM8CB Multi-Output Access Power Controllers Why Choose Our Access Power Controllers? Versatile Power Conversion and ControlConvert 12-24V DC input into 8 independently controlled outputs (fused for ACM8, PTC-protected for ACM8CB). Support both Fail-Safe and Fail-Secure operation modes to fit diverse access control needs Flexible Power Supply OptionsChoose single common power input (for board and lock power) or dual isolated inputs (separate power for board and locking devices). Compatible with 12-24V DC, no manual voltage setting required Multi-Mode Trigger and Output ConfigurationsAccept normally open (NO) or open collector sink trigger inputs from card readers, keypads, PIRs, etc.

ACM8 offers switched power outputs, dry form "C" relays, or combinations plus 8 unswitched auxiliary outputs; ACM8CB provides switched power and auxiliary outputs Reliable Fire Alarm IntegrationIndividually selectable FACP disconnect (latching/non-latching) for each output. Supports NO/NC dry contact or polarity reversal inputs from FACP signaling circuits Intuitive Diagnostics & Easy InstallationBright red LEDs indicate energized output relays; green TRG LED signals FACP trigger status. Removable terminal blocks and compatible mounting patterns simplify setup. Industrial-grade design with 10A main fuse and overload protection.
Compatible With: Access Control Systems, Card Readers, Keypads, Push Buttons, PIR SensorsMag Locks, Electric Strikes, Magnetic Door Holders, and access control hardwareFire Alarm Control Panels (FACP) for emergency egress and alarm monitoringResidential, Commercial, and Industrial Access Control Applications Reliability and SupportUL-Compliant when used with listed power suppliesDestructive Attack-I, Endurance-IV, Line Security-I, Stand-by Power-II performance levelsIndoor use, installed by qualified personnel per National Electrical Code/NFPA standards
SpecificationsInput Voltage: 12-24V DC ( 0.5A @12V, 0.3A @24V with all relays energized)Output
Ratings: 3.5A per fuse (ACM8), 2.5A per PTC (ACM8CB), 10A

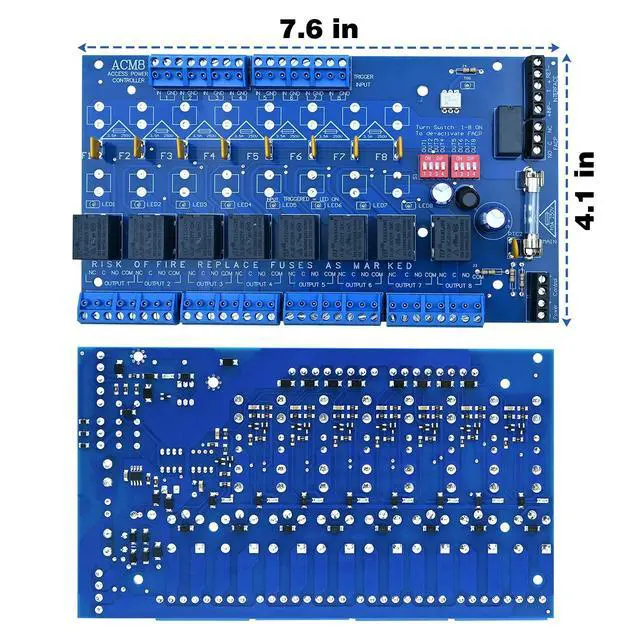

total maxDimensions: 7.65" x 4.125" x 1.25" ( 194.3 mmx 104.8 mmx 31.8 mm)Form "C"
Relay Outputs: 5A rated (ACM8), FACP
Output: 1A/28VDC
