Electronics-Salon 115Vac Mains Power ON Delay Soft-Start Protection Module, with 12 Vdc Regulator.
- 115Vac Mains Power ON Delay Soft-start Protection Module, with power transformer and regulator circuit.
- Operating voltage: 105 ~ 125Vac mains.
- Rated load current: max. 16 amp. Rated load power: 1700 watts.
- Regulated DC output: 12Vdc / 50mA max. Delay time adjust range: 1 ~ 10 seconds(adjust the VR1 potentiometer on board).
- Size: 65mm(L) x 85mm(W) x 30mm(H), (2.6 x 3.4 x 1.2 inch).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

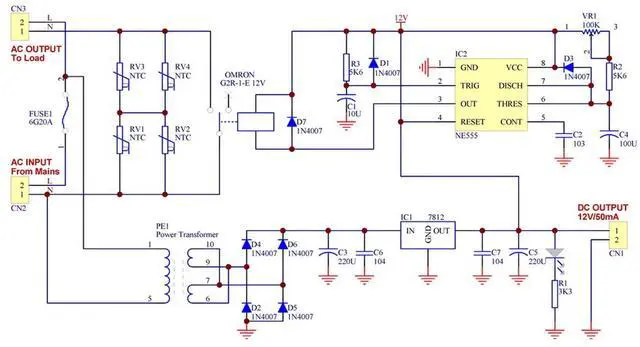

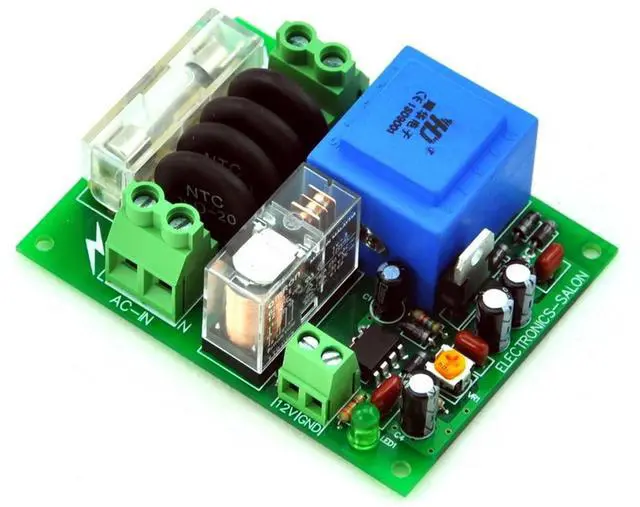

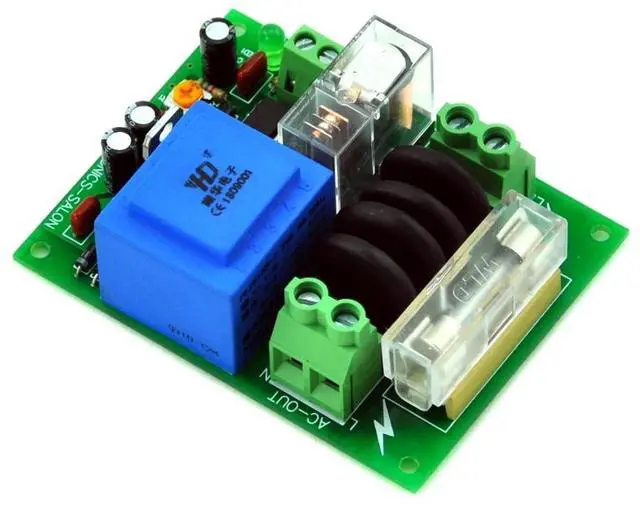

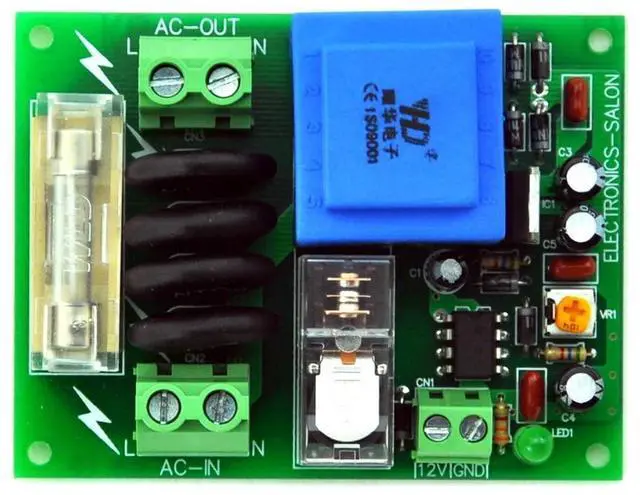

115Vac Mains Power ON Delay Soft-start Protection Module, with power transformer and regulator circuit. This item has been assembled, and electrical test passed. Used a power transformer, rather than series capacitor directly buck, so more secure. Adjustable delay time 1 ~ 10 seconds. A regulated 12Vdc output, flexible application for you. High quality terminal block, easy connection wire, FR-4 Fiber glass PCB, G2R-1-E 16 amp industrial relay, fully encapsulated 2VA power transformer, high quality NTC components 10D20, high quality 6x30mm 20A fuse and fuse holder.
Operating voltage: 105 ~ 125Vac mains.
Rated load current: max. 16 amp.
Rated load power: 1700 watts.
Regulated DC output: 12Vdc / 50mA max.
Delay time adjust range: 1 ~ 10 seconds (adjust the VR1 potentiometer on board).

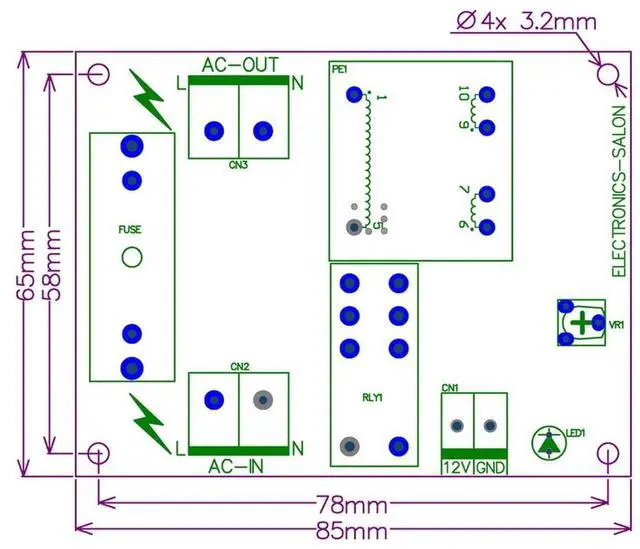

Size: 65mm (L) x 85mm (W) x 30mm (H), ( 2.6 x 3.4 x 1.2 inch).
Screw terminal block: CN2, CN3: wire
range: 26 ~ 10 AWG, strip length 8mm.
CN1: wire
range: 26 ~ 12 AWG, strip length 5mm.
Operating voltage: 105 ~ 125Vac mains.
Rated load current: max. 16 amp.
Rated load power: 1700 watts.
Regulated DC output: 12Vdc / 50mA max.
Delay time adjust range: 1 ~ 10 seconds (adjust the VR1 potentiometer on board).
Size: 65mm (L) x 85mm (W) x 30mm (H), ( 2.6 x 3.4 x 1.2 inch).
Screw terminal block: CN2, CN3: wire
range: 26 ~ 10 AWG, strip length 8mm.
CN1: wire
range: 26 ~ 12 AWG, strip length 5mm.
