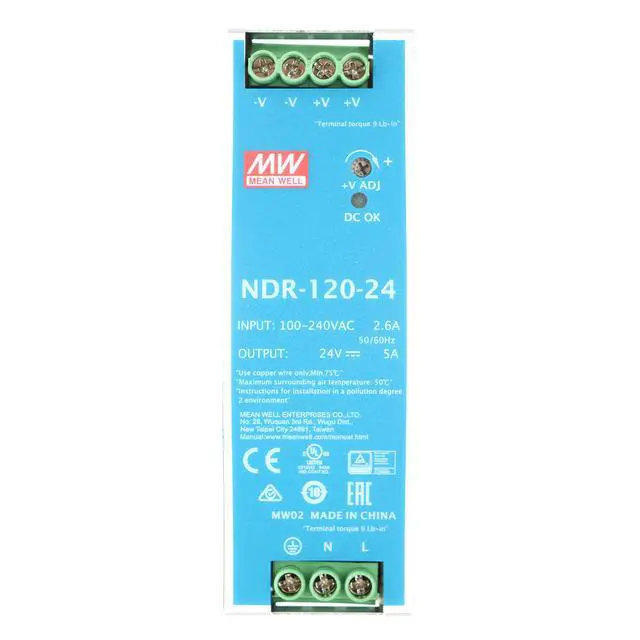

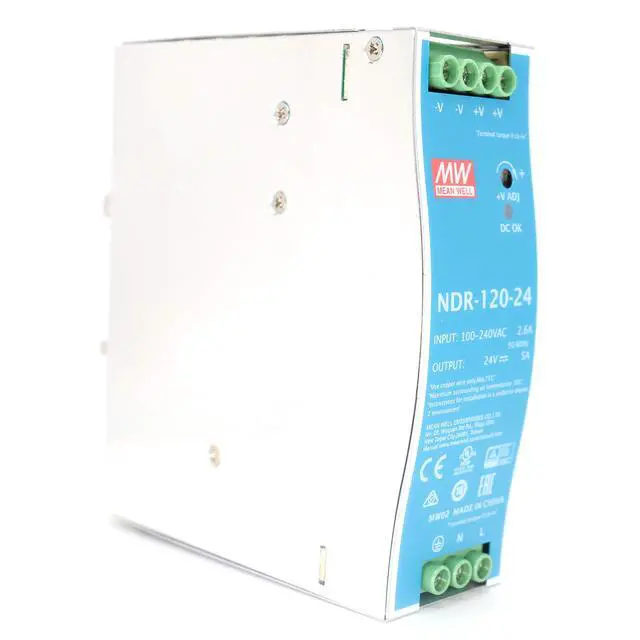

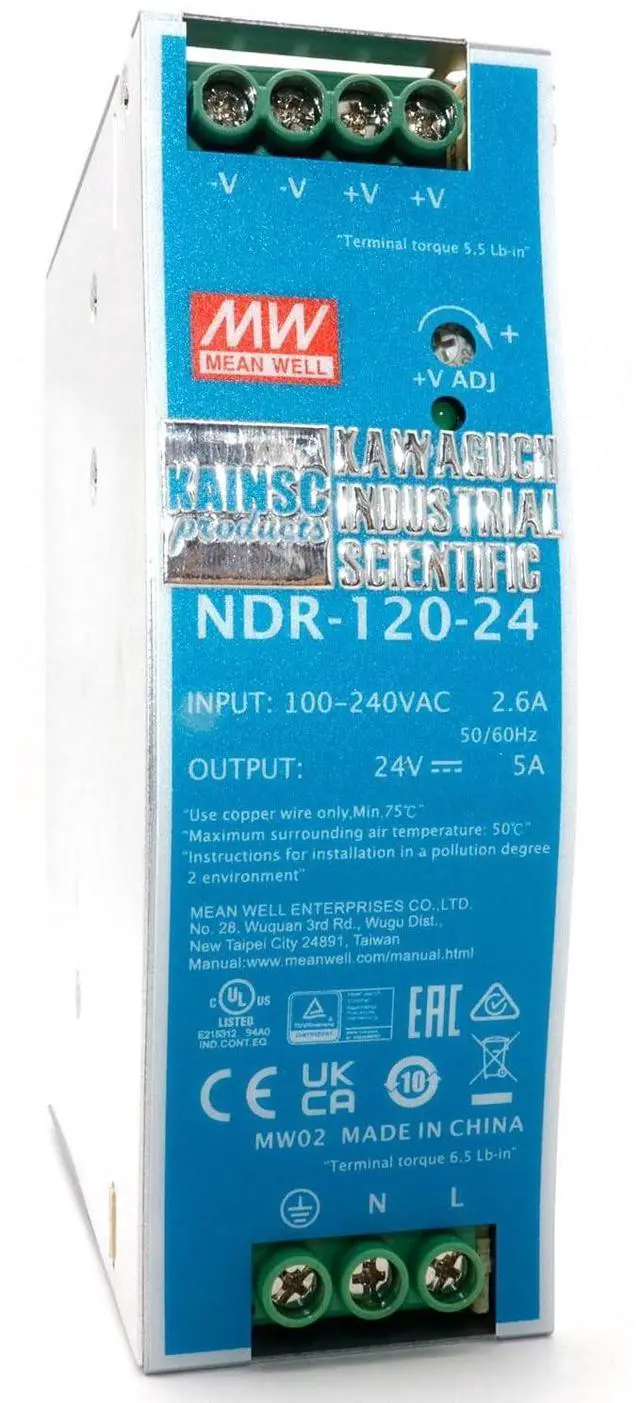

Mean Well NDR-120-24 AC/DC 24V 5A 120W Industrial DIN Rail Power Supply Single Output Provided by KAINSC Products
- Output Voltage: 24V; Rated Current & Rated Power: 5A, 120W
- UL and CE Certificated; Input Voltage : 90 ~ 264VAC / 124 ~ 370 VDC
- Protections: Short circuit / Overload / Over Voltage / Over Temperature
- Ripple & Noise (max.): 120mVp-p; Setup, Rise Time: 1500ms, 100ms/230VAC & 3000ms, 100ms/115VAC at full load (measured at 20MHz of bandwidth by using 12 twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
- High Efficiency 88%; UL 508 (Industrial Control Equipment) approved
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

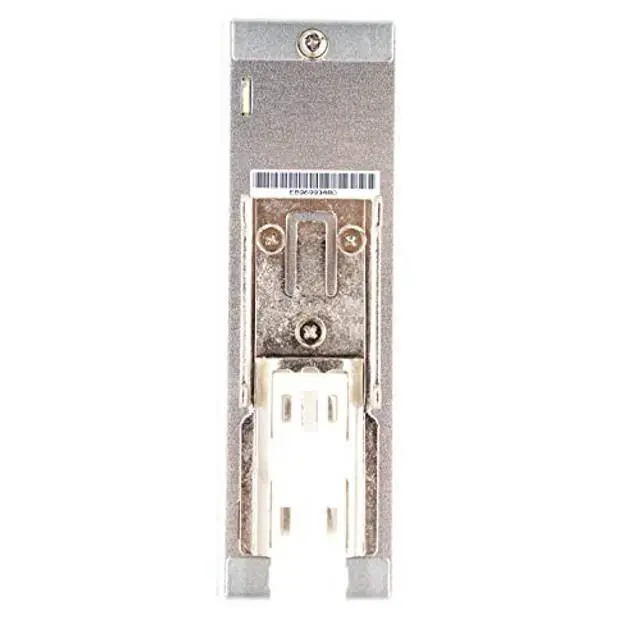

NDR-120 is one economical slim 120W Din Rail Power Supply Series, adapt to be installed on TS-35/ 7.5 or TS-35/15 mounting railsEU
RoHS: CompliantECCN
(US):
EAR99Type:
RegulatedStyle: DIN
RailInput/Output Type: AC/DCNumber of
Outputs: 1Output
Type: FixedOutput
Voltage (V): 24Output
Current (A): 5Output
Power (W): 120Minimum AC
Input Voltage (V): 90Maximum AC
Input Voltage (V): 264Minimum DC
Input Voltage (V): 127Maximum DC
Input Voltage (V): 370Minimum
Isolation Voltage: 3000VAC
Line Regulation: 0.5 %Load
Regulation: 1%Maximum
Input Current (A): 2.25 (Typ)
Input Frequency (Hz): 47
to 63Tolerance (%): 1Efficiency
(%): 88 (Typ)
Configurable: NoInput
Connector Type: Screw Terminal BlockOutput
Connector Type: Screw
Terminal BlockPower Indicator: NoRipple
& Noise: 150mV (Max)
Medical: NoMinimum
Operating Temperature (C): -20Maximum
Operating Temperature (C): 70Product
Weight (g):

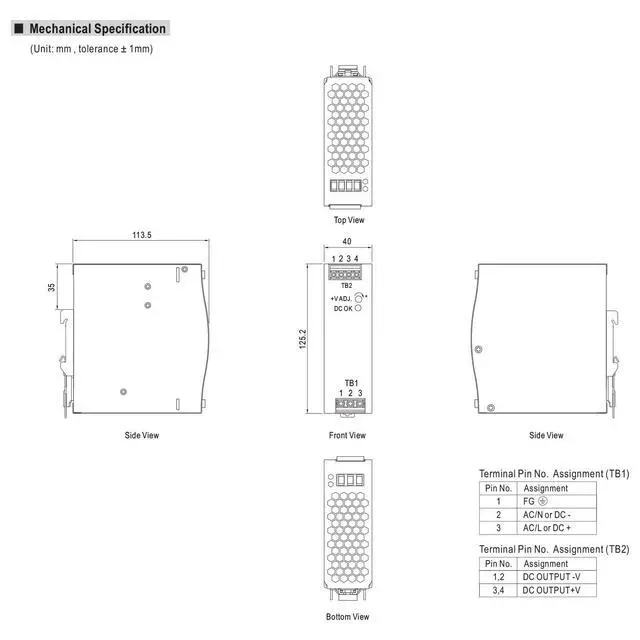

600Mounting: DIN
RailPackage Height: 125.2 mmPackage
Length: 113.5 mmPackage
Width: 40mm
RoHS: CompliantECCN
(US):
EAR99Type:
RegulatedStyle: DIN
RailInput/Output Type: AC/DCNumber of
Outputs: 1Output
Type: FixedOutput
Voltage (V): 24Output
Current (A): 5Output
Power (W): 120Minimum AC
Input Voltage (V): 90Maximum AC
Input Voltage (V): 264Minimum DC
Input Voltage (V): 127Maximum DC
Input Voltage (V): 370Minimum
Isolation Voltage: 3000VAC
Line Regulation: 0.5 %Load
Regulation: 1%Maximum
Input Current (A): 2.25 (Typ)
Input Frequency (Hz): 47
to 63Tolerance (%): 1Efficiency
(%): 88 (Typ)
Configurable: NoInput
Connector Type: Screw Terminal BlockOutput
Connector Type: Screw
Terminal BlockPower Indicator: NoRipple
& Noise: 150mV (Max)
Medical: NoMinimum
Operating Temperature (C): -20Maximum
Operating Temperature (C): 70Product
Weight (g):
600Mounting: DIN
RailPackage Height: 125.2 mmPackage
Length: 113.5 mmPackage
Width: 40mm
