AHD 1080P 7" Reverse Rear View Backup Dual Twin Lens Camera System, Point Each Lens in a Different Direction, IR, Waterproof, 10G Vibration-proof for Tractor/Truck/Camper/Caravan/Skid Steer/Harvester

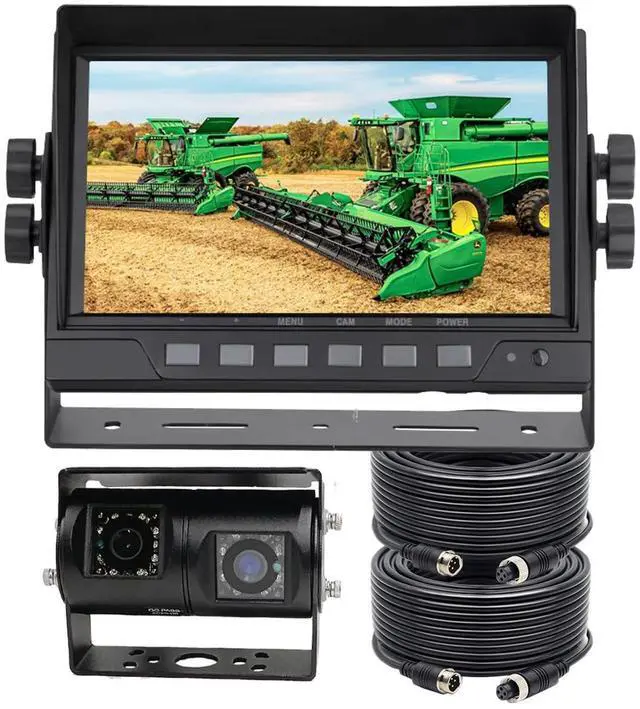

APPLICATIONSThis is an upgraded industrial grade ahd 1080P wired dual lens camera system. For its high vibration resisance ability of 10G and wide power input range DC12-24V, it is suitable for large vehicles, such as buses, box trucks, pickup trucks, garbage trucks, flatbed trucks, dump trucks, street sweeper trucks, refrigerator trucks, motor homes, vans, skid steers, farm tractors, combines, cotton pickers, crop sprayers, bulldozers, snow plows, forklifts, excavators, heavy equipments, etc. ^^ MONITOR7 color single view monitor with U-type metal bracket and with 1080P resolution.

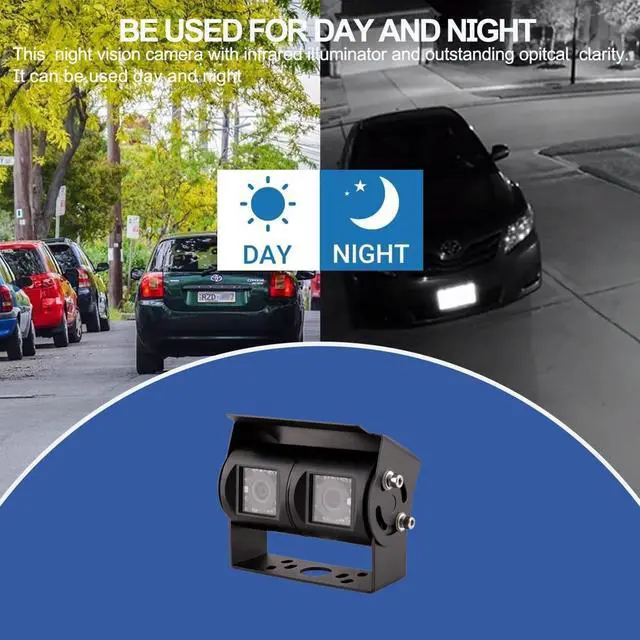

It is not waterproof. It is compatible with most of the vehicles with a free power input range DC12-24V and supports with max 2 cameras. TVS and ESD device is built in to protect the monitor from being damaged by the transient high power of vehicles and the electro static as high as 8kv. And this monitor only supplies camera which is in use with DC12V, it saves energy. It is compatible with PAL/NTSC/AUTO. ^^ DUAL LENS CAMERAWith the resolution of 1080P, it provides super clear and real color image. One lens has 120 degree viewing angle for for precise close-up views (ideal for hitching or tight maneuvers), the other one has 45 degree for for broad rear/side coverage.

10G vibration resistance + IP69K waterproof rating built to withstand extreme conditions (rain, dust, shocks) for excavators, bulldozers and construction machinery. Each lens can be pointed independently in different directions. ^^ Unique Selling Proposition. The monitor has three modes for option by menu to lighten the screen at day time and darken at night, not glare.. Monitor has a built-in protector for protecting monitor from being damaged by power polarities reversed. With built-in innovative system previous option settings memory even after it's turned off.. Camera's image can be set as mirror, non-mirror or up-side-down by OSD menu.

Distance grid line can be turned on or off by OSD menu. ^^ Unique Selling PropositionMonitor has 2 trigger wires. Monitor will be triggered to be turned on automatically to display camera image when reversing. After reversing, the monitor will be back to the pervious mode. This system has two viewing options (view when reverse or remain on continuously). We uses waterproof Aviation 4-pin screw connectors, NO BNC/RCA. Easy to install. Two-year warranty and life-time tech support.
^^ FAQs: 1. Why buttons not work? ---Disconnect the trigger wire, it will work. Trigger wire needs to be connected to power of rear lamp. 2. Remote not work. ---Remote doesn't have battery, because it is forbidden by shipping. ^^ Customer ServiceWhen you recieve the item and find the item defective, missing parts, not working or don't know how to connect the wires, please don't worry, the first best step is to turn to our ATPTK team via the Message immediately. We are keeping our eye on all the messages from our customers, and will fix your issue perfect.
