$169.99
Meet Your Seller
Hamadap 100 Meters Uniboot OM3 Fiber LC to LC Outdoor Armored Fiber Optic Cable, 40GB/10GB Multimode Patch Cord Duplex 50/125, LC-LC Fiber Jumper Optical Patch Cord, LSZH Black, OD-5mm
- High-Performance: Our uniboot fiber optical patch cord delivers high-bandwidth multimode transmission through a 50m core, supporting multiple light modes to reduce latency. Its rugged armored design ensures durability while maintaining 0.3dB insertion loss and 50dB return loss, guaranteeing reliable performance in data centers and industrial networks.

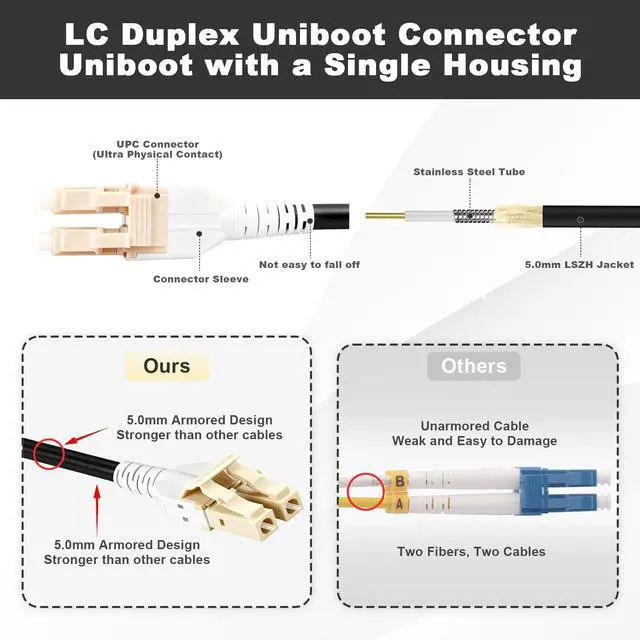

- Space-Saving Uniboot Connectors: LC duplex connectors with uniboot integrate two optical fibers within a single protective housing, connected via a single dual-fiber circular cable. Compared to traditional duplex cables, it reduces the required space by half, simplifies patch panel management, and serves as an ideal choice for high-density cabling applications.

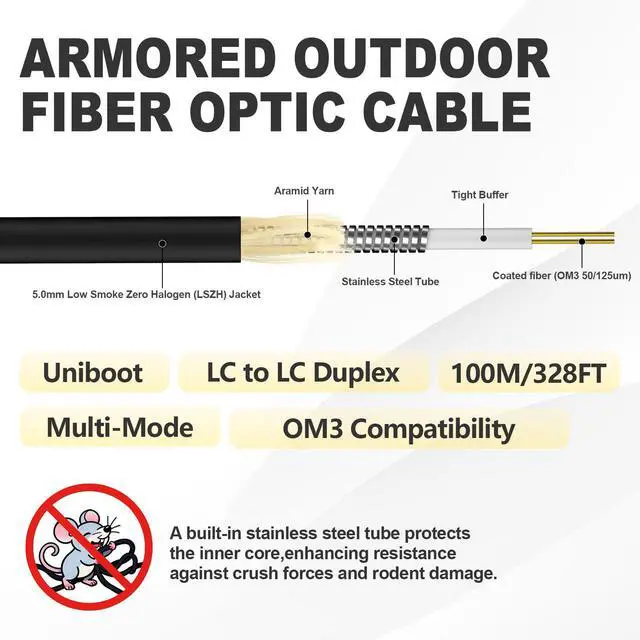

- Armored Design: Our LC fiber jumper cable is built with a stainless steel tube to protect the inner core (fiber glass) from damage caused by pets and other external factors. it remains all the features of a standard patch cord, but is much stronger. Pressure resist, Wear resi
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications
FiberCore Type: Multimode
Fiber OM3 Core/Cladding Diameter: 50/125 m
Outer Diameter: 5.0 mm 0.2 mm
Sheath Material: LSZH (Low Smoke Zero Halogen), Black
Insertion Loss: 0.3 dB
Return Loss: 25 dB (Multimode)
Connector Type: LC
Uniboot Ferrule Material: Zirconia Ceramic
Durability (Mating Cycles): 500 cycles
Bandwidth: 2000 MHzkm (850 nm); 500 MHzkm (1300 nm)
Tensile Strength: 1500
N Bend Radius: Static 15 mm, Dynamic 30 mm
Operating Temperature: -40 ~ +85
Storage Temperature: -50 ~ +90

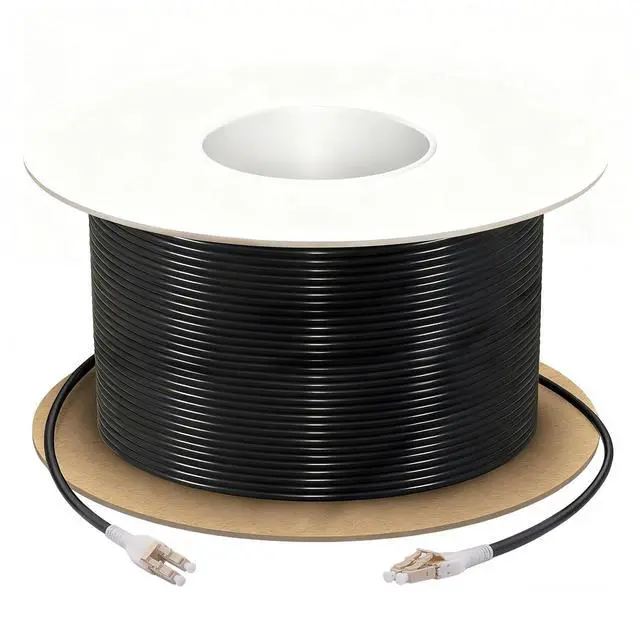

Packaging: Reel/Coiled Pack
