HiQltyla 3 Way Speaker Crossover, WEAH-3505B 300W Adjustable Passive Crossover for Car Home Audio 4 to 8 Ohm Bass Mediant Tweeter
- Convenient InstallationHigh quality Screw Terminals, durable & reliable, can be easy to install with your car / home audio, stay away from the hassle of welding

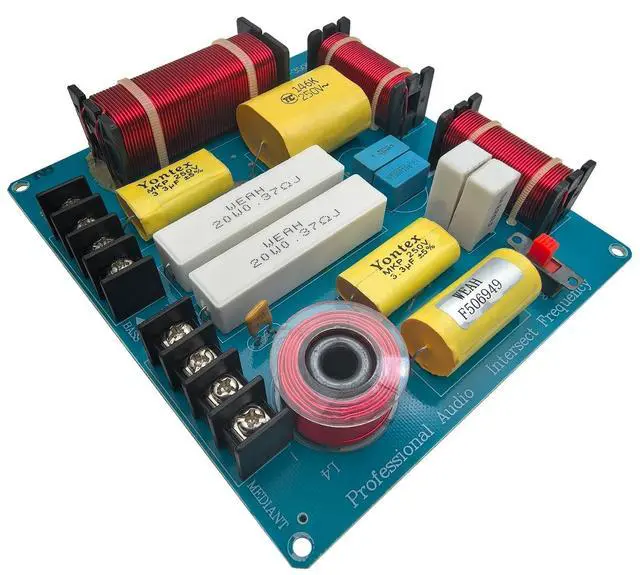

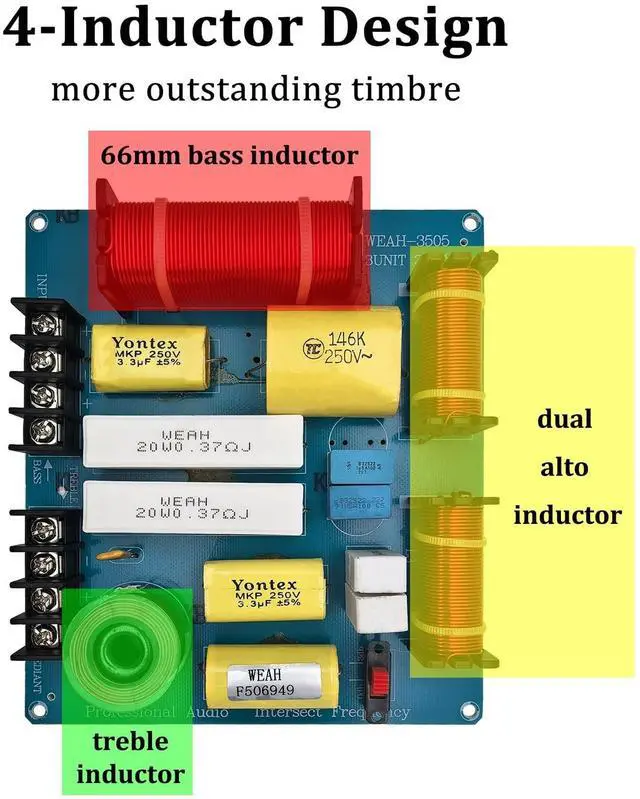

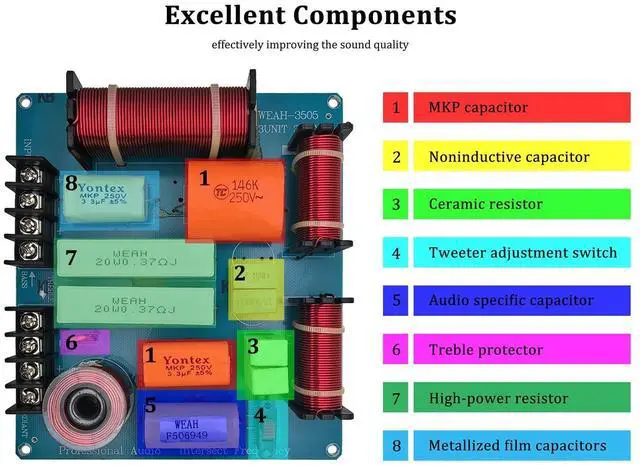

- Excellent Components66mm bass inductor, dual alto inductor, treble inductor, MKP capacitor, dual non-inductive capacitor, ceramic resistor, tweeter adjustable switch, professional audio capacitor, tweeter protector, high power resistor, metallized film capacitor
- Electrical Parameters300 watts peak, suitable for 4-8 ohm impedance, Frequency: 40Hz-20kHz, Frequency division point: 850Hz,5800Hz(when switch 3dB)/ 850Hz,6000Hz(when switch 0dB); 3dB adjustable switch
- Compatible withBy replacing or installing our speaker crossover, you can greatly improve the sound quality of your car or home audio system, allowing you to enjoy high-quality music. The size of the mid range horn in the audio system is required to be within the range of 4 inches, providing the best user experience
- Package Includes1x 3-Way Speaker Crossover
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
3 Way Crossover for Car / Home
Audio systemModel Number: WEAH-3505BApplicable
Speaker Impedance: 4 to 8
Support Speaker Power: 300W MaxCompatible with most brands and models of car / home audio, Mediant Speakers size required to be 4 inchesSpecifications:
Material: ABS
circuit boardColor:
BlueVoltage: 12VOut
Power: 300WFrequency
Range: 40Hz-20kHzFrequency
division point: 850Hz, 5800Hz (when switch 3dB) / 850Hz, 6000Hz (when switch 0dB)
Support Impedance: 4 to 8 Small switch adjustment high pitch +3dB MaxMount

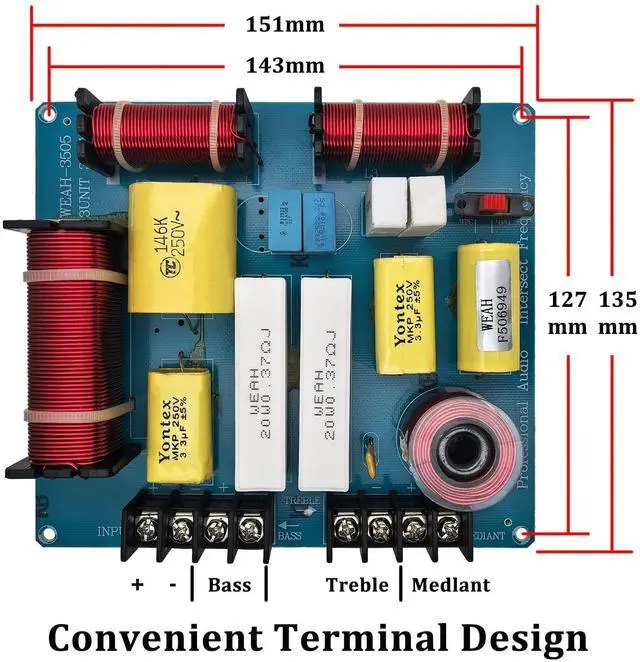

Hole Size: 4mmMount
Hole Distance: 143 x 127mmItem
Dimensions: 5.9" x 1.4" x 5.3" (151 x 35 x 135 mm)
Item Weight: 13.38 oz / 379.2 gShiping
Weight: 15.62 oz/ 442.7 gPackage
Includes: 1x 3-Way Speaker Crossover
Audio systemModel Number: WEAH-3505BApplicable
Speaker Impedance: 4 to 8
Support Speaker Power: 300W MaxCompatible with most brands and models of car / home audio, Mediant Speakers size required to be 4 inchesSpecifications:
Material: ABS
circuit boardColor:
BlueVoltage: 12VOut
Power: 300WFrequency
Range: 40Hz-20kHzFrequency
division point: 850Hz, 5800Hz (when switch 3dB) / 850Hz, 6000Hz (when switch 0dB)
Support Impedance: 4 to 8 Small switch adjustment high pitch +3dB MaxMount
Hole Size: 4mmMount
Hole Distance: 143 x 127mmItem
Dimensions: 5.9" x 1.4" x 5.3" (151 x 35 x 135 mm)
Item Weight: 13.38 oz / 379.2 gShiping
Weight: 15.62 oz/ 442.7 gPackage
Includes: 1x 3-Way Speaker Crossover
