EC Buying ESP32-S3 7.0 Inch LCD Development Board 800x480 TFT Display with WiFi & Bluetooth, Non-Touch Screen, 16MB Flash 8MB PSRAM, LVGL HMI GUI Module
- Built with the ESP32-S3 dual-core processor (up to 240MHz), this development board integrates 2.4GHz WiFi and Bluetooth for reliable wireless communication. With 16MB Flash and 8MB PSRAM, it delivers strong performance for IoT systems, smart control panels, and industrial HMI applications
- Features a 7-inch TFT LCD with 800480 resolution and 16-bit RGB 65K color output. The large display area provides clear visuals and stable performance, ideal for dashboards, monitoring systems, automation interfaces, and embedded display projects
- This model is a non-touch display, suitable for systems operated by physical buttons, PLC controllers, or remote communication. It offers flexible integration into industrial equipment, automation devices, and custom embedded solutions
- Fully supports LVGL (Light and Versatile Graphics Library) for creating rich graphical interfaces, widgets, and animations. Compatible with Arduino IDE, ESP-IDF, and MicroPython, allowing developers to qui
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

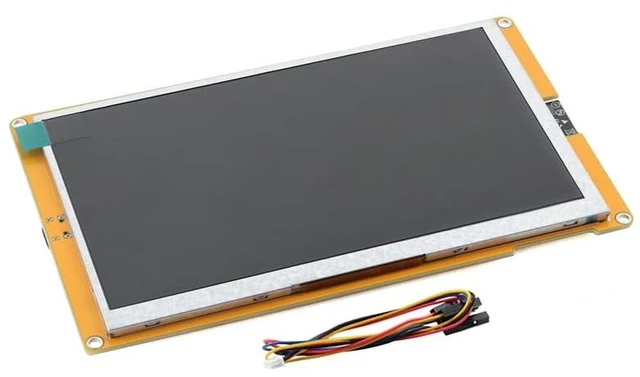

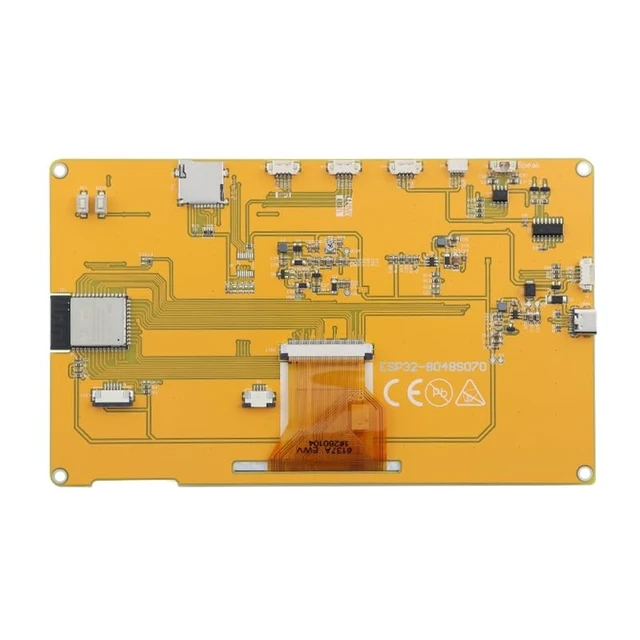

Product Description The ESP32-S3 7-inch LCD Development Board is an integrated smart display module designed for HMI (Human-Machine Interface), IoT control systems, and embedded GUI development. Combining a large 7.0 -inch TFT LCD with the powerful ESP32-S3 dual-core MCU, this board offers wireless connectivity, graphical display capability, and flexible expansion options. This version features a standard-definition 800480 non-touch display, making it ideal for applications controlled by external buttons, automation systems, or wireless communication.
Product
Wireless: 2.4GH z WiFi +
Bluetooth Flash Memory: 16MB
PSRAM: 8MB
Display Size: 7.0 inch TFT
LCD Resolution: 800 480 pixels
Display Color: RGB 65K (16-bit)
Touch Type: Non-Touch
Operating Voltage: 5V
DC Working Current: Approx.
500mA Operating Temperature: -20C to 70C
Storage Temperature: -30C to 80C How to Use Connect the board to a stable 5V power supply or PC via USB. Install required drivers and select ESP32-S3 in Arduino IDE or ESP-IDF. Install LVGL and related display libraries. Upload sample code to test display functionality. Develop and customize your GUI interface according to project needs. Connect external sensors or modules via GPIO, I2C, or SPI. Use the memory card slot to store graphical assets or application data if required. This 7-inch ESP32-S3 LCD development board provides a reliable, expandable, and developer-friendly platform for smart home panels, industrial monitoring systems, automation equipment, and embedded display projects requiring wireless connectivity and large-screen visualization.
Product
Specifications
MCU: ESP32-S3 Dual-Core Processor (up to 240MHz)Wireless: 2.4GH z WiFi +
Bluetooth Flash Memory: 16MB
PSRAM: 8MB
Display Size: 7.0 inch TFT
LCD Resolution: 800 480 pixels
Display Color: RGB 65K (16-bit)
Touch Type: Non-Touch
Operating Voltage: 5V
DC Working Current: Approx.
500mA Operating Temperature: -20C to 70C
Storage Temperature: -30C to 80C How to Use Connect the board to a stable 5V power supply or PC via USB. Install required drivers and select ESP32-S3 in Arduino IDE or ESP-IDF. Install LVGL and related display libraries. Upload sample code to test display functionality. Develop and customize your GUI interface according to project needs. Connect external sensors or modules via GPIO, I2C, or SPI. Use the memory card slot to store graphical assets or application data if required. This 7-inch ESP32-S3 LCD development board provides a reliable, expandable, and developer-friendly platform for smart home panels, industrial monitoring systems, automation equipment, and embedded display projects requiring wireless connectivity and large-screen visualization.
