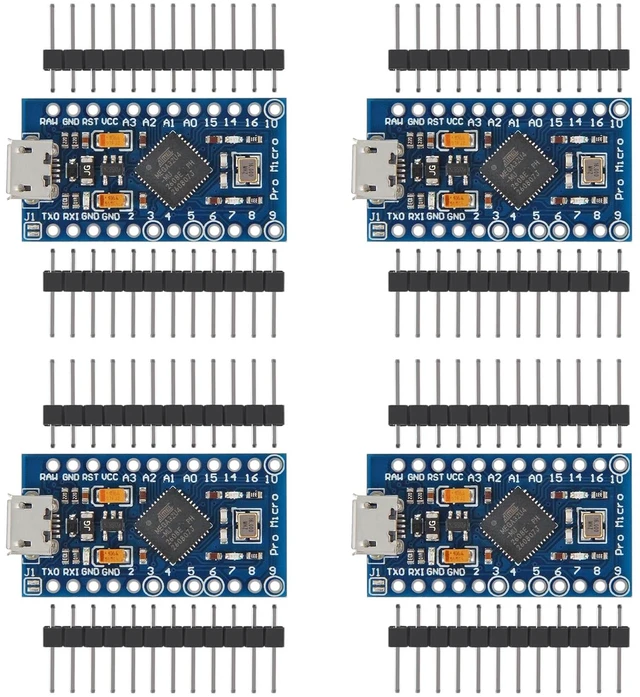

4Pcs Pro Micro Atmega32U4 Microcontroller 16MHz 5V Bootloadered IDE Micro USB Development Board Compatible for Arduino Pro Serial Connection with Pin Header
- Pro Micro ATmega32U4 5V/16MHz is a micro development board based on Arduino architecture. Its core advantage is that the ATmega32U4 chip has a built-in native USB controller
- Can directly simulate USB HID or CDC with extremely low latency, suitable for making macro keyboards, emulator controllers, etc

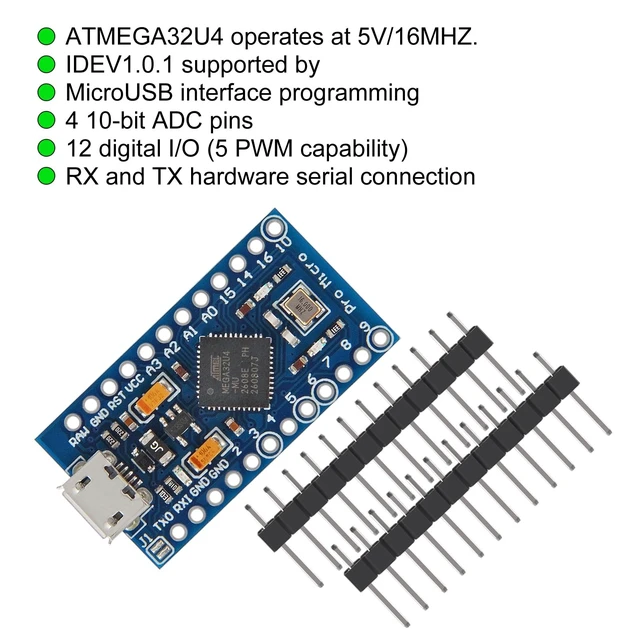

- Pin resources: Provides 12 digital I/O (5 of which support PWM), 4 10-bit ADC channels, hardware serial port (RX/TX), I2C (SDA/SCL) and SPI interface
- Power input: On-board voltage stabilization module, which can accept 5V-12V unregulated power through the RAW pin or directly powered through Micro-USB
- Pin Definition: The onboard LED usually corresponds to pin 17 (TX_LED) or 30 (RX_LED). It is recommended to use the LED_BUILTIN macro when writing Blink programs to ensure compatibility
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Pro Micro ATmega32U4 5V/16MHz is a micro development board based on Arduino architecture. Its core advantage is that the ATmega32U4 chip has a built-in native USB controller ^^ Can directly simulate USB HID or CDC with extremely low latency, suitable for making macro keyboards, emulator controllers, etc ^^
Pin resources: Provides 12 digital I/O (5 of which support PWM), 4 10-bit ADC channels, hardware serial port (RX/TX), I2C (SDA/SCL) and SPI interface ^^
Power input: On-board voltage stabilization module, which can accept 5V-12V unregulated power through the RAW pin or directly powered through Micro-USB ^^
Pin Definition: The onboard LED usually corresponds to pin 17 (TX_LED) or 30 (RX_LED). It is recommended to use the LED_BUILTIN macro when writing Blink programs to ensure compatibility
Pin resources: Provides 12 digital I/O (5 of which support PWM), 4 10-bit ADC channels, hardware serial port (RX/TX), I2C (SDA/SCL) and SPI interface ^^
Power input: On-board voltage stabilization module, which can accept 5V-12V unregulated power through the RAW pin or directly powered through Micro-USB ^^
Pin Definition: The onboard LED usually corresponds to pin 17 (TX_LED) or 30 (RX_LED). It is recommended to use the LED_BUILTIN macro when writing Blink programs to ensure compatibility
