$54.99
Meet Your Seller
AOICRIE 2pcs 2.4" inch ESP32 Display ESP32 Development Board ESP32-2432S028R WiFi Bluetooth Resistive Touch Screen ILI9341 Driver 240X320 Smart Display TFT LCD Module
- ESP32 Display Support: 1. UART/SPI/I2C/PWM/ADC/DAC and other interfaces. 2. OV2640 and OV7670 cameras, built-in flash. 3.Picture WiFI upload. 4. TF card. 5. Multiple sleep modes. 6. Embedded Lwip and FreeRTOS. 7. STA/AP/STA+AP working mode. 8. Smart Config. 9.AirKiss one-click network configuration. 10. Secondary development.

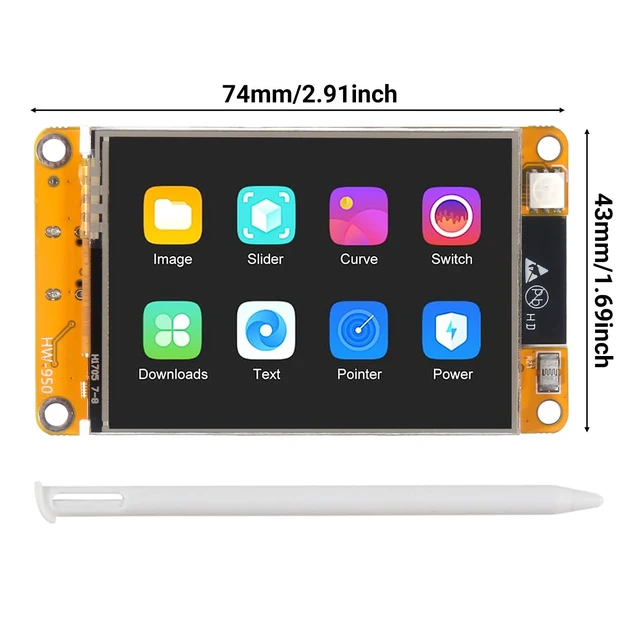

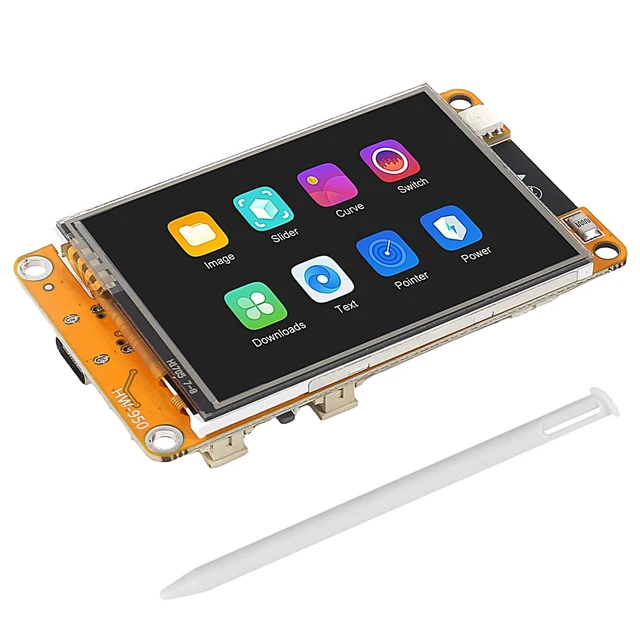

- ESP32 2.4 Inch Touch Screen: 2.4" ESP32 Display resistive touchscreen with a resolution of 320x240, equipped with a touch screen micro pen, can be used for APP remote control, remote environmental data collection, remote parameter setting and other batch development applications.

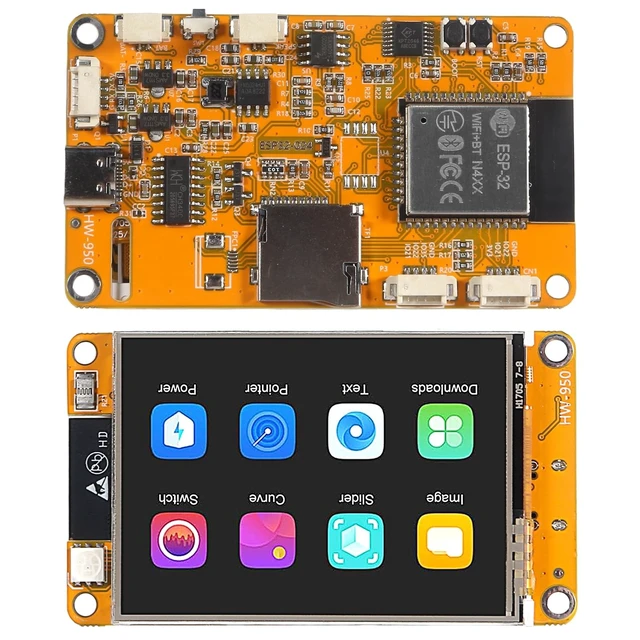

- 2.4 ESP32 Display: The cheap yellow display board with TF card slot on the back, multiple peripheral/IO interfaces, USB (Convert TTL) interface, USB interface, speaker interface, and battery interface, providing sufficient storage and expandability.
- ESP32-2432S028R Multi-function: ESP32 development board is based on the ESP32-DOWDQ6 controller, features a low-power, dual-core CPU
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
2.4"
ESP32 DisplaySpecifications:
Model:
ESP32-2432S028RSize: 2.4
inchType: TFT
Driver Chip:
ILI9341Touch:
ResistiveResolution: 240x320 (Pixel) RAM internal 520KBSupport (2Mbps) UART, SPI, I2C, PWM, ADC, and DAC interfaceSupport OV2640 and OV7670 cameras, built-in flashSupport picture Wi Fi upload, TF card (32G max), multiple sleep modes, STA/AP/STA+AP working modeOperating
Voltage: 4.75 - 5.25V (V) SPI Flash default 32MbitIO port 9, Serial port rate default 115200bpsOnboard

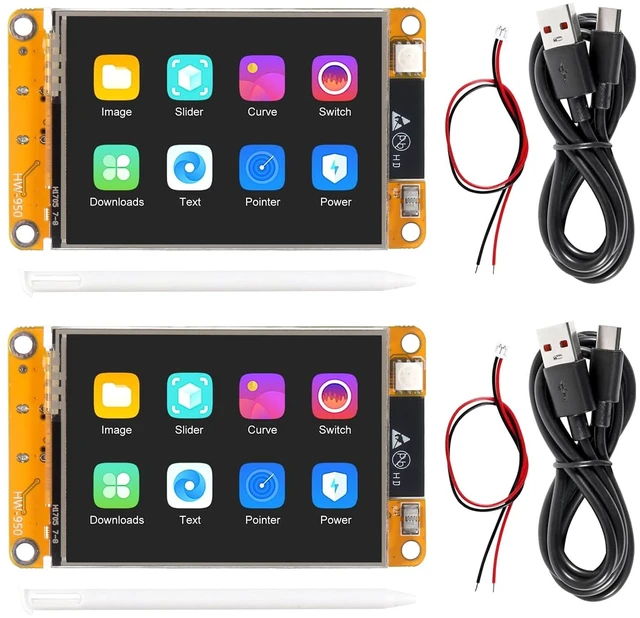

PCB antenna 2dBi gainPackage includes: 2 x 2.4 ESP32 Dispaly2 x USB Cable2 x Touch Pen2 x Dupont Female to 1.25 mm Wire
ESP32 DisplaySpecifications:
Model:
ESP32-2432S028RSize: 2.4
inchType: TFT
Driver Chip:
ILI9341Touch:
ResistiveResolution: 240x320 (Pixel) RAM internal 520KBSupport (2Mbps) UART, SPI, I2C, PWM, ADC, and DAC interfaceSupport OV2640 and OV7670 cameras, built-in flashSupport picture Wi Fi upload, TF card (32G max), multiple sleep modes, STA/AP/STA+AP working modeOperating
Voltage: 4.75 - 5.25V (V) SPI Flash default 32MbitIO port 9, Serial port rate default 115200bpsOnboard
PCB antenna 2dBi gainPackage includes: 2 x 2.4 ESP32 Dispaly2 x USB Cable2 x Touch Pen2 x Dupont Female to 1.25 mm Wire
