Idatalink Maestro HRN-HRR-MA2 T-Harness for Select Mazda Vehicles (2014-21) Connect a Compatible Car Stereo Retaining Steering Wheel Audio Controls (ADS-MRR or ADS-MRR2 Module Also Required)

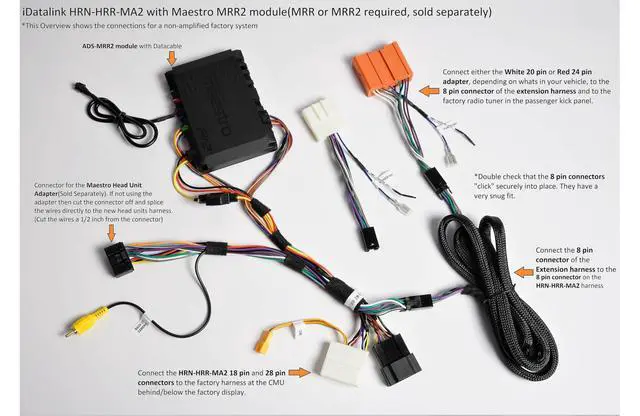

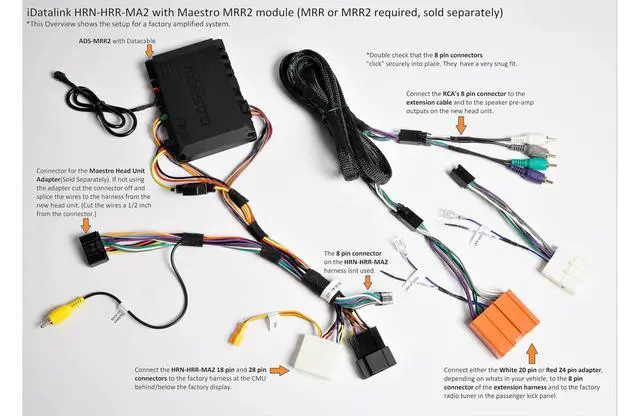

iDatalink Maestro HRN-HRR-MA2 Connect an iDatalink-compatible car stereo and retain steering wheel audio controls in select 2014-21 Mazda vehicles (ADS-MRR or ADS-MRR2 module also required) ^^ iDatalink's iDatalink HRN-HRR-MA2 installation harness simplifies the installation of the Maestro ADS-MRR or ADS-MRR2 Car Radio Replacement Interface module (sold separately) in select Mazda vehicles when replacing your factory radio. ^^ Retain factory features. The HRN-HRR-MA2 harness and interface module retains your vehicle's steering wheel audio controls, factory amplifier, and backup camera with any aftermarket receiver. The harness also supplies the outputs (parking brake, reverse, and VSS [Vehicle Speed Sense]) necessary for installation of a navigation receiver, plus illumination and accessory power outputs.

^^ Retains the use of your steering wheel audio controls and factory amp. Retains rear-view camera, depending upon aftermarket radio inputs (iDatalink-ready car stereos also retain front, side, and 360 cameras) ^^
INSTALLATION NOTE: This HRN-HRR Plug & Play T-Harness REQUIRES an Idatalink Maestro Interface Module (ADS-MRR or ADS-MRR2) and the corresponding Idatalink Maestro Car Stereo Head-Unit ACC-HU-ALP1 (Alpine), ACC-HU-PIO1 (Pioneer), ACC-HU-SON1 (S0NY), ACC-HU-KEN1 (KENWO0D/JVC with 22-Pin Connector), ACC-HU-KEN2 (KENWO0D/JVC with 16-Pin Connector), ACC-HU-KEN3 (2024 & Newer KENWO0D/JVC with 22-Pin Connector), ACC-HU-BOS1 (BOSS Radio) or the ACC-HU-JEN1 (Jensen) Installation T-Harness. Each Sold separately. These adapters allows you to connect select car stereos to compatible iDatalink T-harnesses.
^^ (ADS-MRR: Vehicle
Coverage: 30 Makes -
Models: 4318 -
Years: 2002+)
- (ADS-MRR2: Vehicle
Coverage: 30 Makes -
Models: 4582 -
Years: 2002+ with 3 Programmable Outputs)
