Idatalink Maestro HRN-HRR-MI1 T-Harness for Select Mitsubishi Vehicles 2008-19, Replace The Factory Radio While retaining Steering Wheel Controls & use of amp (ADS-MRR or ADS-MRR2 Module Required)

Idatalink meets MitsubishiIdatalink's HRN-RR-MI1 wiring adapter allows you to connect a new car stereo in select 2008-19 Mistubishi vehicles, working in conjunction with Idatalink's Maestro ADS-MRR or Maestro ADS-MRR2 module (sold separately). Once connected, you'll retain the use of your steering wheel audio controls in these vehicles. The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Keeping your factory cameras and moreIf you're installing a car stereo with an Idatalink port, this harness also allows you to retain the backup camera (and front and sIde cameras if present) in your Mitsubishi vehicle, as long as your receiver has the necessary inputs. In addition, you'll also keep your AUX input, and you'll be able to view engine performance data and other vehicle info on your receiver's screen.
Product highlights: Allows installation of new receiver in select Mitsubishi vehicles (also requires the Maestro RR or RR2 module) Features retained with non-Idatalink-ready car stereos: steering wheel audio controls factory amplifier (but no fader or gain control) Features retained with
Idatalink-ready car stereos: fader and gain control with factory amp factory backup camera and front/sIde cameras (receiver must have a second camera input) AUX input Displays engine and vehicle performance data on touchscreenSupplies outputs (parking brake, reverse, and VSS) for NAV receiversRetained
Features: The following factory features (if applicable) are retained when replacing your factory radio with a compatible Idatalink Serial Port head unit from Kenwood, JVC, Alpine, Sny, or Pioneer using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-RR-MI1 installation harness. Factory amplifier with fader and gain adjustment (aftermarket stereo must at least have 4-channel preamp outputs)Steering wheel controls with two functions on each button for standard and expanded radio functions (aftermarket receiver must also support steering wheel control) Reverse camera (aftermarket radio must feature a composite vIdeo camera input) Aux input (aftemarket head unit must be equipped with an stereo minijack or stereo RCA Aux input; minijack-to-RCA adapter may be required (sold separately) Advanced
Camera Features: When used with a compatible Idatalink Serial Port head unit from Kenwood, JVC, Pioneer, or Snywith a 2nd camera input, you'll gain advanced camera features such as Front Camera and SIde Camera Auto Control (additional aftermarket cameras required and sold separately).
Radar Detector Integration: When used with a compatible Idatalink Serial Port head unit from Kenwood or JVC, you'll be able to display and control the K40 RL360di or RL200di radar dector (sold separately) with access to settings and stealth mode from the head unit's touchscreen.
Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible Idatalink Serial Port head unit from Kenwood, JVC, Pioneer, Sny, or Alpine using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-RR-MI1 installation harness.
Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Check Engine Codes, and
Door Open Status/WarningGauges: Selectable Performance Gauges, "Track-Pack"
GaugesOutputs: The HRN-HRR-MI1 installation harness for Mitsubishi includes an Accessory Power Output (15A), Parking Brake Output, Reverse Gear Output, and VVS (Vehicle Speed Sense) Output.

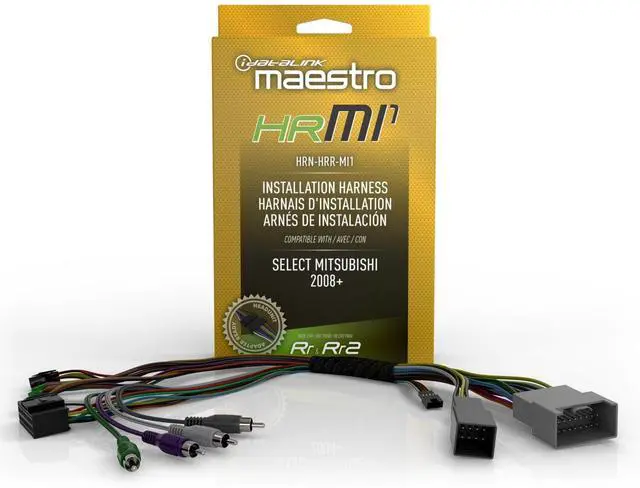

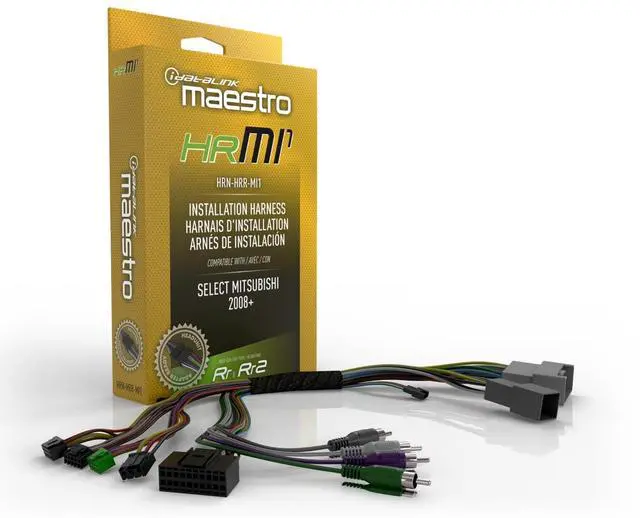

What's in the box: Idatalink HRN-RR-MI1 Vehicle-specific HarnessFactory radio harnessAux harnessClimate control harnessOBDII harness*INSTALLATION
NOTE: This HRN-HRR-MI1 car stereo installation T-harness requires the purchase of the Idatalink Maestro ADS-MRR or ADS-MRR2 Interface Module (sold
