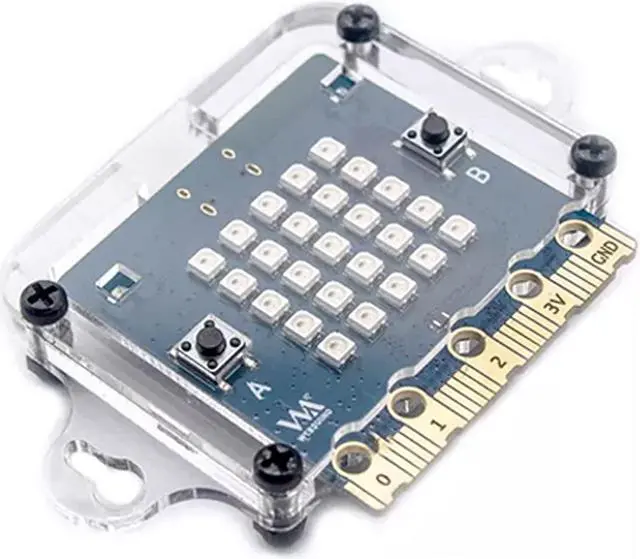

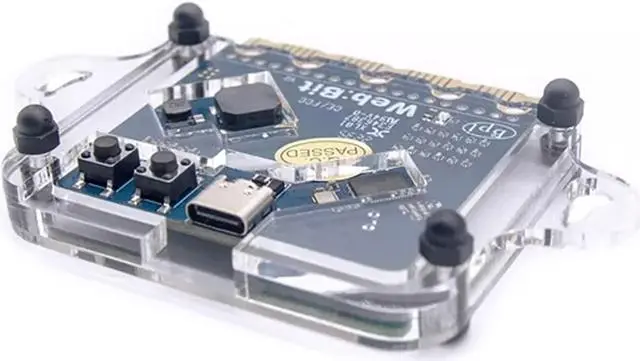

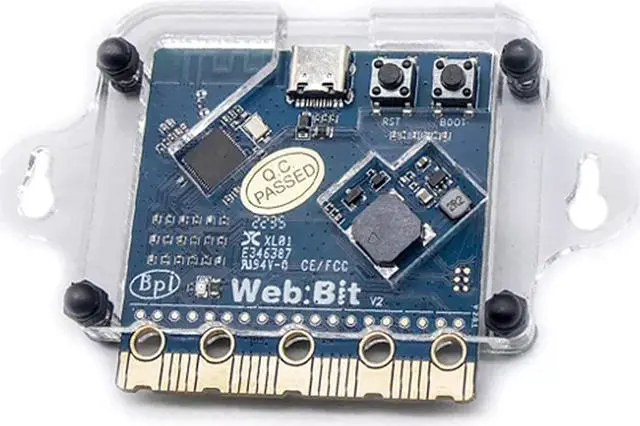

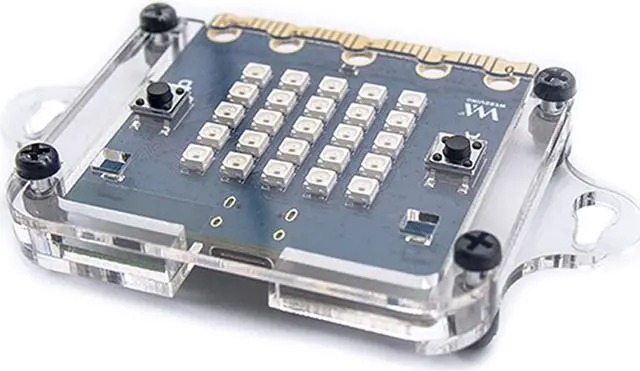

Banana Pi BPI Bit S2 IoT Development Board Single Board Computer, 32bit 240MHz ESP32-S2FN4R2 MCU, with 128 KB ROM 320 KB SRAM WiFi Bluetooth for STEAM Education Support MicroPython CircuitPython
- MCU: ESP32-S2FN4R2, X-ten-sa 32 bit LX7 Single-Coreup to 240MHz; onboard 128 KB ROM, 320 KB SRAM, 4 MB FLASH ROM, 2 MB PSRAM.
- Wireless connectionsBPI Bit S2 single board computer support WIFI: 1EEE 802.11 b/g/n , 2.4Ghz; 5x5 RGB LED matrix.
- Interface: 1x buzzer, 1x thermistor sensor2 x photosensitive sensors2 x programmable keys, 1x BOOT key, 1x Reset key1xType-C USB interface.
- Micro-Bit: The Goldfinger Edge Connector definition is fully compatible with Micro: Bit.lO is compatible with micro:bit and can use most peripheral accessories of micro:bit.
- SystemBPI Bit S2 IoT development board Supports Web-dui-no, A-r-d-u-i-n-o, MicroPython & CircuitPython programming environments, suitable for STEAM education.
- WIKI: https://wiki.banana-pi.org/BPI-Bit-S2. Any after-sales problems, please contact us by click WayPonDEV store and ask a question or leave the message in our forum by "forum.youyeetoo .com /".
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

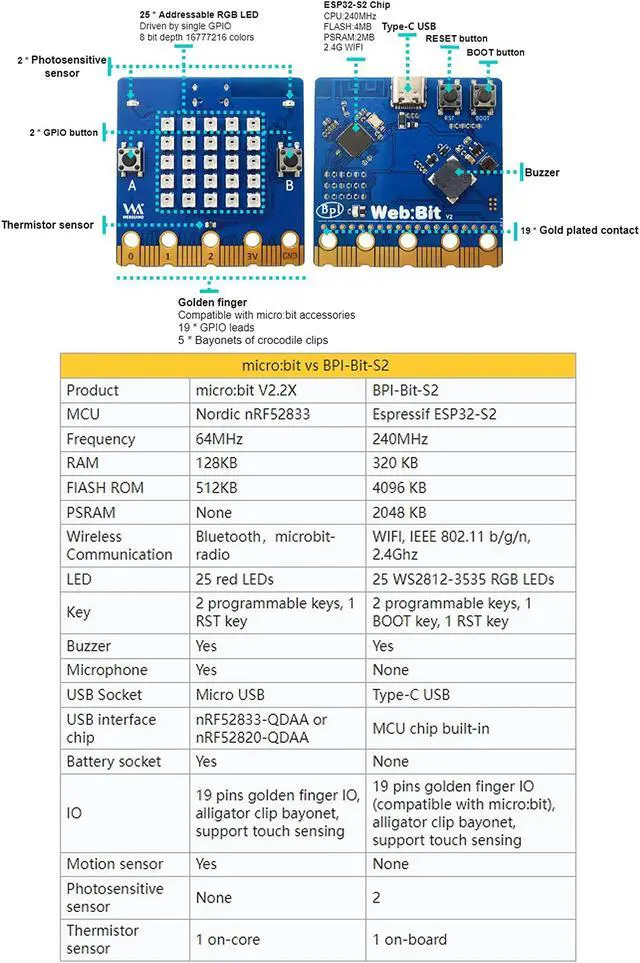

-Specification-
MCU: ESP32-S2FN4R2X-ten-sa 32 bit LX7 Single-Core Processer
Frequency: 240MHz MAX
operating temperature: -40~+85
ROM: 128 KB
SRAM: 320 KB
FLASH ROM: 4 MB
PSRAM: 2 MB
WIFI: IEEE 802.11 b/g/n 2.4G hz
GPIO19 available GPIO pins have been introduced
Peripheral functionsADC, TOUCH, PWM, SPI, I2C, I2S, Pulse counter, RMT, TWAI Controller, SD/MMC, LCD_CAMERA
External crystal40Mhz
Buzzer 8.5 x 8.5 mm buzzer
LED25 WS2812 rgb LED, single line GPIO control; 1 monochrome LED, controlled by GPIO0
Photosensitive sensor2 photosensitive sensor
Thermistor sensor1 thermistor sensor
IO19 pins Goldfinger IO, 19 pins contacts on the back
Key 2 programmable keys, 1 BOOT key, 1 Reset key
USBUSB Type-C interfacefull speed USB OTG, USB-ACM
Operating voltage 3.3V
PowerUSB Type-C input 5Vor Goldfinger IO input 3.3V power supply
Size 5 * 5 cm
MCU: ESP32-S2FN4R2X-ten-sa 32 bit LX7 Single-Core Processer
Frequency: 240MHz MAX
operating temperature: -40~+85
ROM: 128 KB
SRAM: 320 KB
FLASH ROM: 4 MB
PSRAM: 2 MB
WIFI: IEEE 802.11 b/g/n 2.4G hz
GPIO19 available GPIO pins have been introduced
Peripheral functionsADC, TOUCH, PWM, SPI, I2C, I2S, Pulse counter, RMT, TWAI Controller, SD/MMC, LCD_CAMERA
External crystal40Mhz
Buzzer 8.5 x 8.5 mm buzzer
LED25 WS2812 rgb LED, single line GPIO control; 1 monochrome LED, controlled by GPIO0
Photosensitive sensor2 photosensitive sensor
Thermistor sensor1 thermistor sensor
IO19 pins Goldfinger IO, 19 pins contacts on the back
Key 2 programmable keys, 1 BOOT key, 1 Reset key
USBUSB Type-C interfacefull speed USB OTG, USB-ACM
Operating voltage 3.3V
PowerUSB Type-C input 5Vor Goldfinger IO input 3.3V power supply
Size 5 * 5 cm
