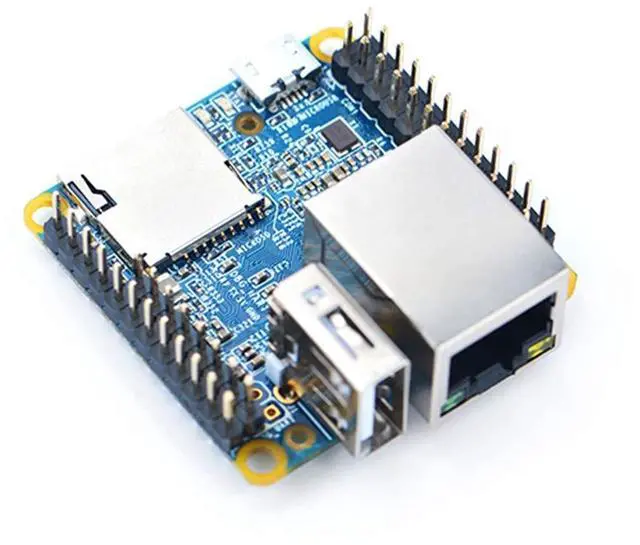

NanoPi NEO Open Source Allwinner H3 Development Board Super Raspberry Pie Quad-core Cortex-A7 DDR3 RAM 512MB Run Ubuntu Core

-Specification-
CPU Model: Allwinner H3
Number of Cores: Quad-core
Frequency: 4*Cortex-A7 Up to 1.2GH z
Memory: RAM: 256MB/512MB
Storage: MicroSD
Slot: MicroSD*1 for external storage up to 128GB
Connectivity: Ethernet: 10/100M Ethernet
Audio: Audio input/output
Port: 5Pin, 2.0 mm pitch pin header
USB MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A
USB Host: 2.0 Type A*1, 2.54 mm pin*2

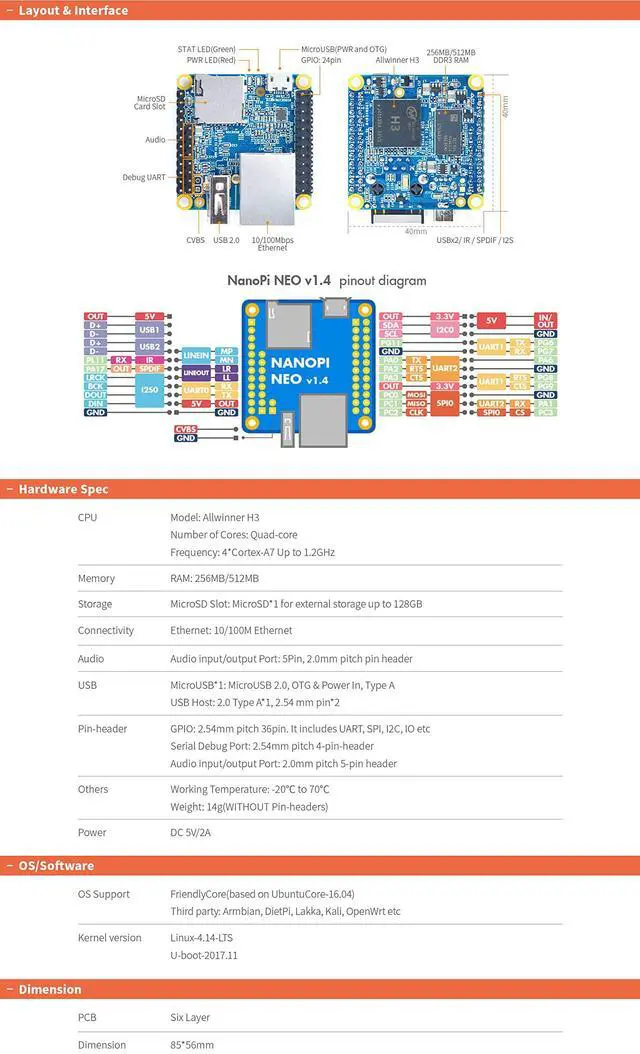

Pin-header GPIO: 2.54 mm pitch 36pin. It includes UART, SPI, I2C, IO etc

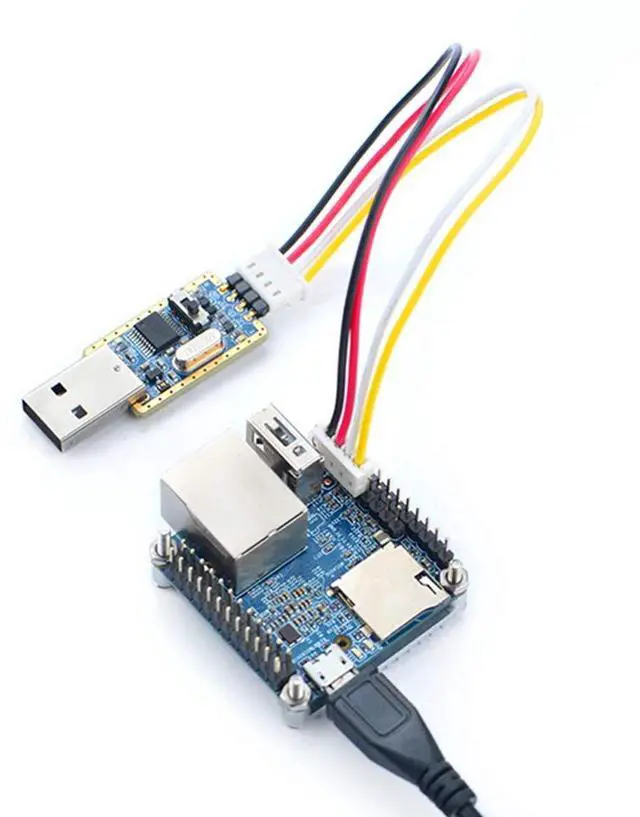

Serial Debug Port: 2.54 mm pitch 4-pin-header
Audio input/output Port: 2.0 mm pitch 5-pin header
LED Power LED (Red) *1
System LED (Green) *1
Others: Working Temperature: -20 to 70
Power: DC 5V/2A
-OS Support-
FriendlyCore 16.04 (based on UbuntuCore- 16.04 )
FriendlyCore Focal (Base on Ubuntu 20.04 )
FriendlyWrt 19.07. 1(32-bit)
Armbian
DietPi
Lakka
Kali
-Kernel version-
Linux- 4.14 -LTS
U-boot- 2017.11
-Dimension-
PCB: 4 Layer
Dimension: 40*40mm
Weight: 14g(WITHOUT Pin-headers)
-In the Box-

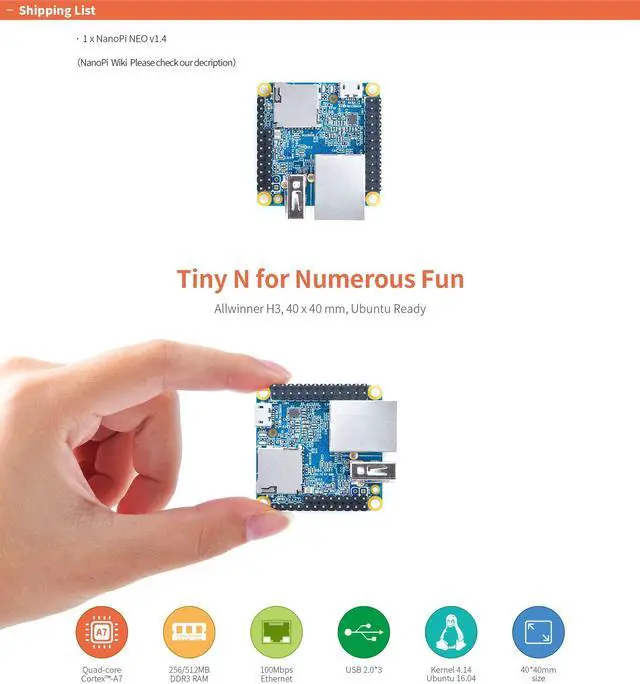

NanoPi NEO 512MB with Pin x1
