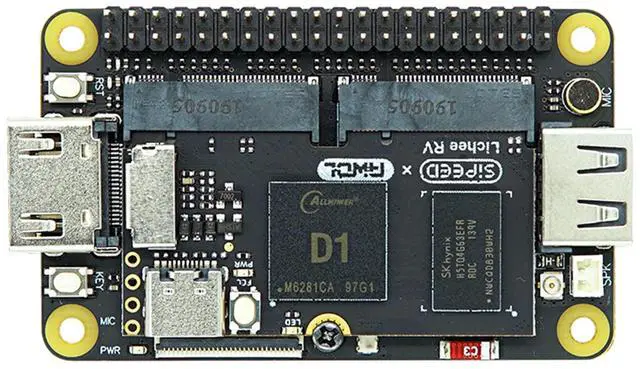

Sipeed Lichee RV Dock Allwinner D1 Development Board RISC-V Linux Starter Kit (Ram: 1GB)

Introduction

Characteristic

CPU
XuanTie C906 RISC-V 64bit
DRAM1GB DDR3
Display
-HDMl Up to 4K@30fps
-RGB 720P@30fps
-MIPl 1080P@60fps
-Equipped With Display Shell

WirelessRTL8723DS 2.4G Wi-Fi + BT 4.22. 4G Antenna
USBUSB-A Host x1, USB-C OTGx1 ( On the CM board )
Audio3W Audio PA ( For Speaker ) x1, Electret Analog Mic x1
Storage
-TF card up to 128GB ( on the CM board ); default

-SPl flash ( reserved on the Dock board ); optional
MicarrySupport our R6 Micarray Board (6 MEMS Mics include )
GPIO2x20P 2.54 mm headers on the Dock includes GPIO & Power.
otherWS2812 RGB LED ×1, Reset Key x1, User ( ADC ) Key x1
Dimensions 65.0 mm x 40.0 mm

FAQ
Q&A

Q1: Can l connect external keyboard and mouse?
A1: Sure, but it now only available on Debian system.

Q2: Which system does Lichee RV dock support?
A2: Now we support Tina Linux / Debian officially, and support Ubuntu / OpenSUSE, RustSBI / OpenWRT community.

Q3: What is the maximum network speed of Lichee RV Dock?
A3: The highest network speed we tested is about 30Mbps (with RTL8723DS), but it will be influenced by networkenviroment and signal strength, the max speed is only forreference.

Q4: Where are the documents related to Lichee RV dock?
A4: Documents could be found from our
WIKl:
https: //wiki. sipeed. com/hardware/zh/lichee/RV/RV. html
