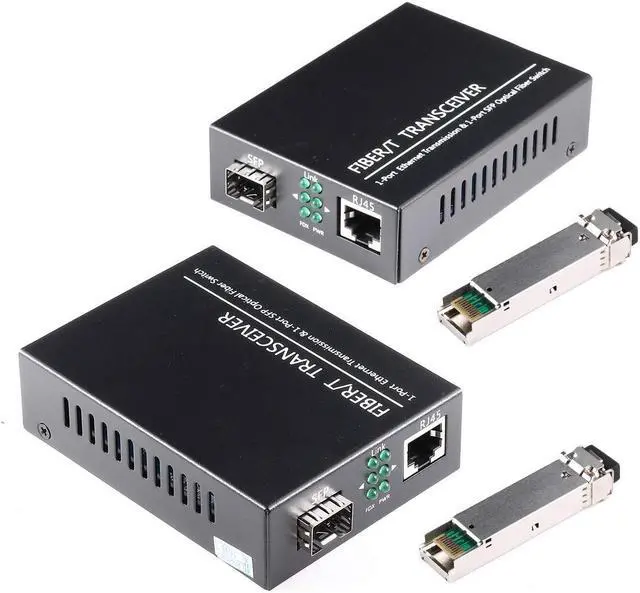

A Pair of 1.25G/s Bidi Gigabit Single-Mode Fiber Ethernet Media Converter with 2PCS Bidi SFP LC Transceiver Module Included, 10/100/1000Base-Tx to 1000Base-SX SMF RJ45 to SFP Slot up to 30KM
- What You Get: 2pcs Gigabit Single-mode Ethernet SFP Slot media converters; 2pcs SFP BiDi LC transceiver; 2pcs AC/DC Power Supply; 1 x Users Manual. Support wide power supply voltage (100V-240V), Power Supply: 5V-1A, UL Certified.
- Fiber Optical Port: 1.25Gbps 1310-nm wavelength SFP port, connecting the BiDi transceivers up to 30km(2 SFP LX Transceiver included); Fiber Type: SMF, Cable Type: UTP/STP Cat.5e for 100 meters.
- RJ45 Port: 10M/100M/1000M Auto-negotiation, full Duplex or half Duplex, Auto-negotiation, Supports MDI/MDIX auto-crossover, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.
- Plug & Play: Simply plug in optical port and RJ45 port, and it will work immediatelly. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status. Supports jumbo frame size 9K bytes; Supports working temperature range from 0°C to 60°C.
- 100% Money Guarantee15 years OEM factory competency, Most efficient technical support with superb processing technology.Our
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

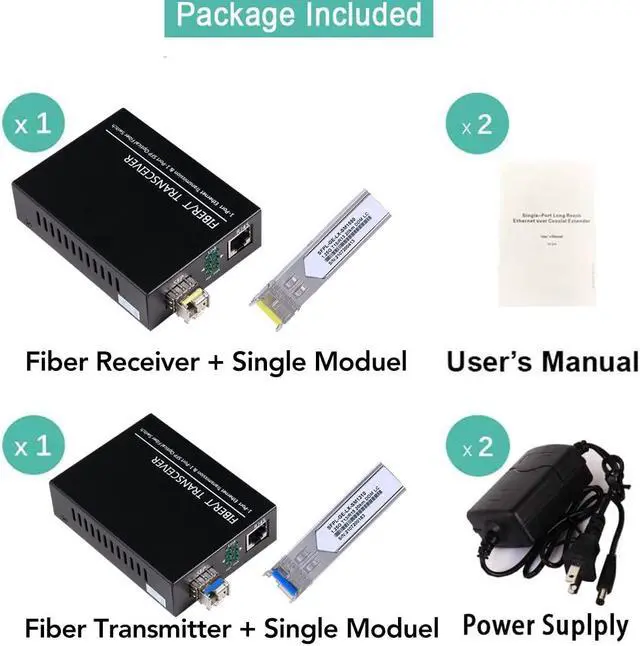

Product Include
2xSingle-mode Gigabit Ethernet Fiber Media Converter
2xBiDi SFP slot LC Transceiver module up to 30km
2xDC Power Adapter Output voltage: 5V DC/1A
1xProduct Manual, Multi-Language Quick Installation Guide
Feature Introduction
1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX SFP Fiber Gigabit Media Converter
2.
Interface: SFP Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation
3.
Fiber Type: Single-mode, Fiber
Connector: Single LC Fiber, Wavelength: 1310nm, Reach: 20km, Included Power Supply Weight: 0.35 kg
Excellent Function
1.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life
2. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Dimensions: 95x72x27mm (DxW xH)
4.
Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation 3 watts, External
Power: AC100V~240V
5. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0°C to 60°C.
Storage temperature: -20°C to 70°C.
Humidity: 5% to 90% RH
Wide Applications

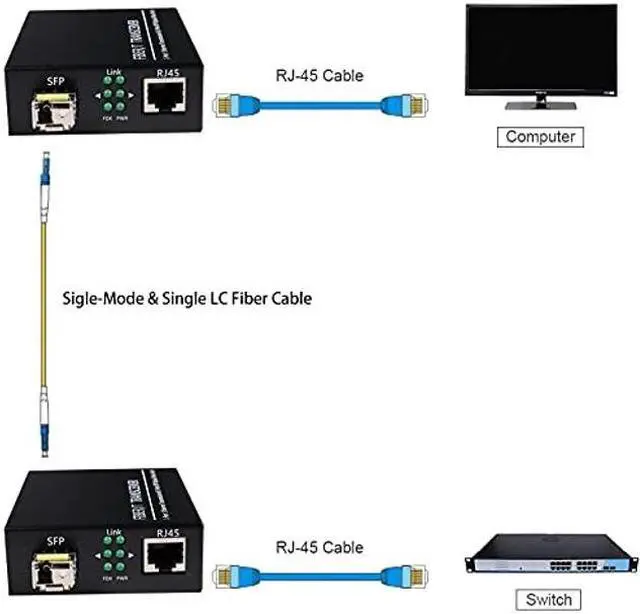

1. Extend or bridge networks using fiber cable
2. Provide connectivity to users in an isolated area of a large complex or in a separate building
3. Ideal for secure connections required by government or corporations where EMI is not acceptable

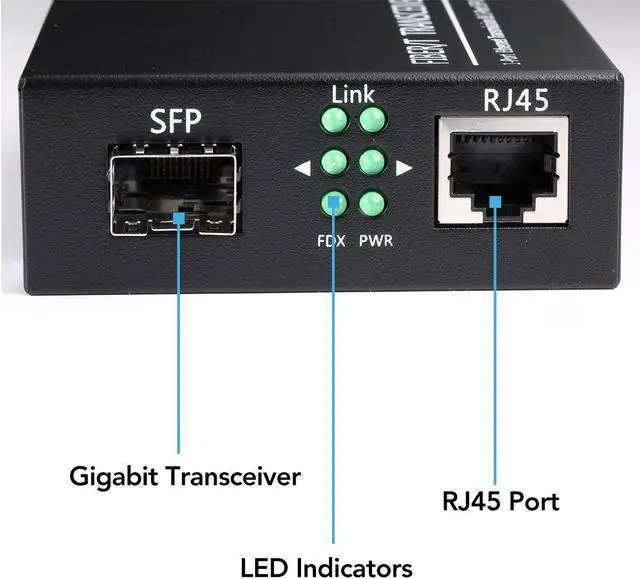

LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off
2.
TP: Light on when TP speed is 1000Mbps, else light off
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5.
PWR: Light on when DC power on, else light off.
2xSingle-mode Gigabit Ethernet Fiber Media Converter
2xBiDi SFP slot LC Transceiver module up to 30km
2xDC Power Adapter Output voltage: 5V DC/1A
1xProduct Manual, Multi-Language Quick Installation Guide
Feature Introduction
1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX SFP Fiber Gigabit Media Converter
2.
Interface: SFP Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation
3.
Fiber Type: Single-mode, Fiber
Connector: Single LC Fiber, Wavelength: 1310nm, Reach: 20km, Included Power Supply Weight: 0.35 kg
Excellent Function
1.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life
2. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Dimensions: 95x72x27mm (DxW xH)
4.
Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation 3 watts, External
Power: AC100V~240V
5. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0°C to 60°C.
Storage temperature: -20°C to 70°C.
Humidity: 5% to 90% RH
Wide Applications
1. Extend or bridge networks using fiber cable
2. Provide connectivity to users in an isolated area of a large complex or in a separate building
3. Ideal for secure connections required by government or corporations where EMI is not acceptable
LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off
2.
TP: Light on when TP speed is 1000Mbps, else light off
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5.
PWR: Light on when DC power on, else light off.
