Wireless Tracker Development Kit LoRa 915MHz SX1262 ESP32-S3 WiFi+BT UC6580 GPS GNSS Receiver for Arduino Meshtastic IoT LoRaWAN

DIYmall LoRa+GNSS+Wi-Fi+BT Wireless Tracker Development Kit ESP32-S3 WiFi BT SX1262 LoRa UC6580 GPS Receiver for Arduino Meshtastic IoT LoRaWAN

Note:
Without battery;
Include SH 1.25 x 2 battery connector.

Description:
Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Blue-tooth, LoRa.
Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.

Features:

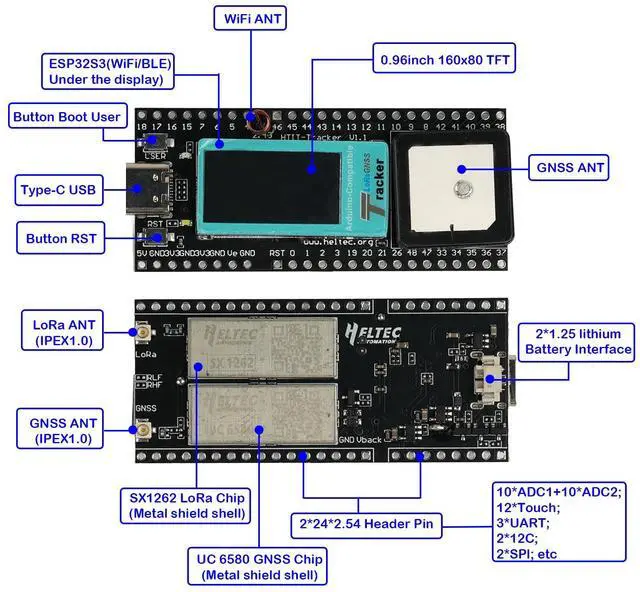

ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Blue-tooth, GNSS.
Low power design of dual-frequency multi-system based on 22nm technology.
Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Onboard Wi-Fi, Blue-tooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa and GNSS use.
Onboard 0.96 -inch 128*64 dot matrix LCD display, which can be used to display debugging information, battery power, and other information.
Support the Arduino development environment.

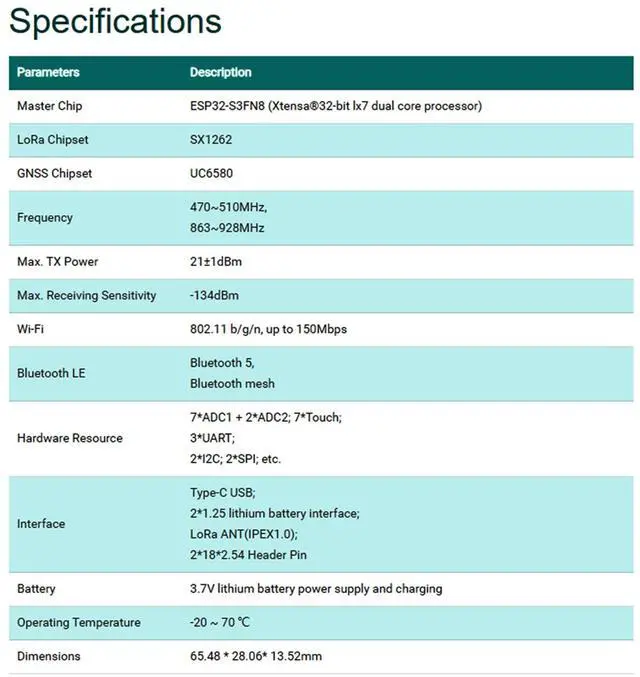

Specifications

:
Master Chip: ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor)
LoRa Chipset: SX1262
GNSS Chipset: UC6580
Frequency: 863~928MHz
Max.
TX Power: 21±1dBm
Max.
Receiving Sensitivity: -134dBm
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth LE: Bluetooth 5, Bluetooth mesh

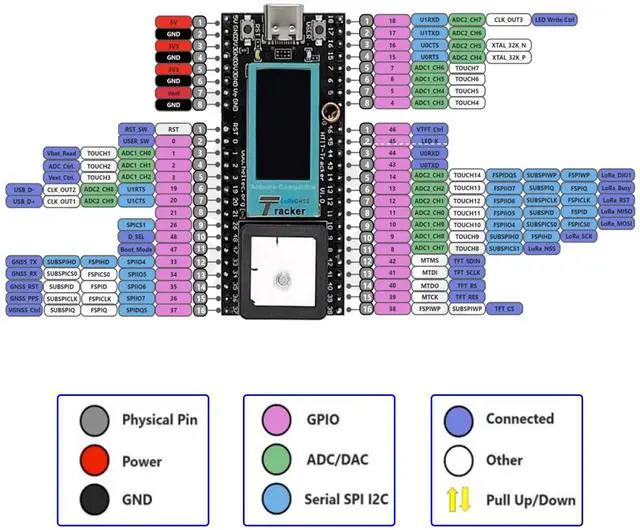

Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Interface: Type-C USB; 2* 1.25 lithium battery interface; LoRa ANT(IPEX 1.0 ); 2*18* 2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Operating Temperature: -20 ~ 70

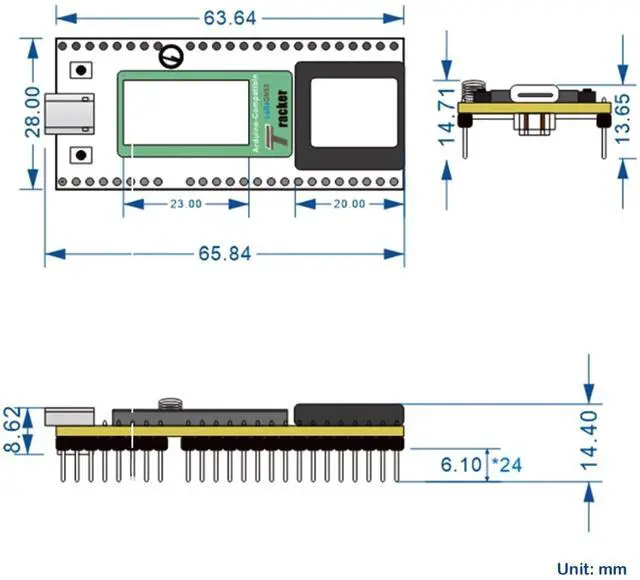

Dimensions: 65.48 * 28.06 * 13.52 mm

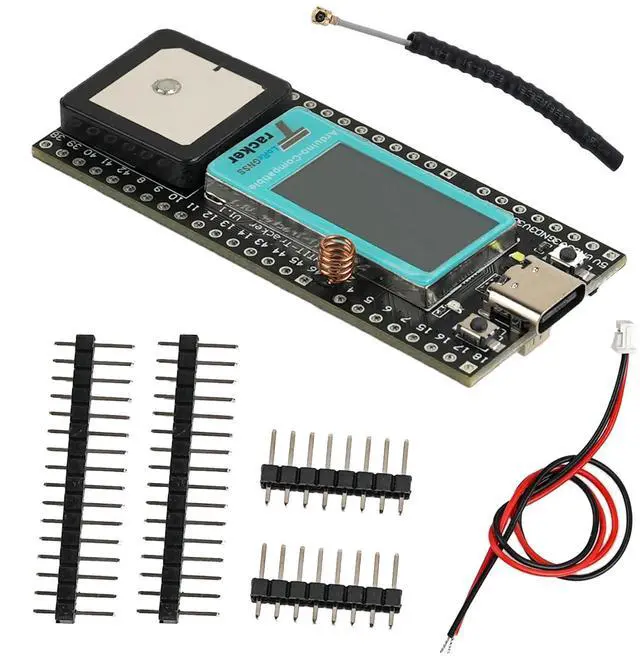

Pavkage includes:
1 set 863-928MHz Wi-Fi+BT+LoRa+GNSS development kit
