$128.99
Meet Your Seller

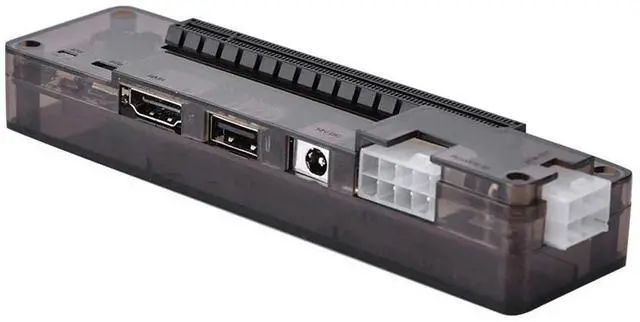

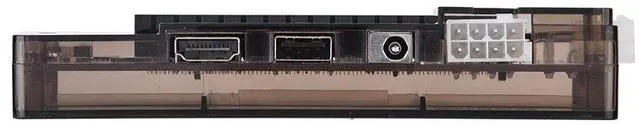

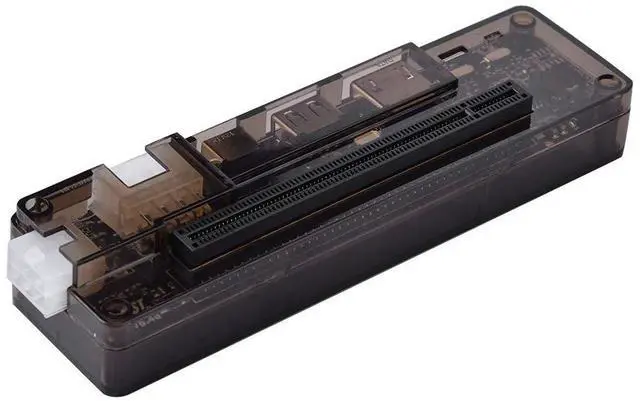

Laptop External Independent Video Card Dock,for Mini PCIE,Expresscard,6Pin+ Interface Output,Without Power Supply
- Support InterfaceSupport TD compatible switch (hardware conflict resolution), multistage anti-interference circuit and data line reinforcement;Compatible with graphics card, sound card, array card, video card, collect card, etc.
- Data line InterfaceFor Mini PCI-E, Expresscard, NGFF(M.2)A/E Key or M Key, PCI-E X4 Converter Cable; Supports RTX.T(make sure you have correct connections)
- Support 6Pin+ Interface Output power output interface can connect 220W power supply and ATX cable with ATX desktop power.High quality electronic components,Reinforcement design for data transfer line,Isolation circuit function.
- USB InterfaceThis interface only provides 500mA voltage output and does not have any other functions(The interface of M.2 M Key and PCI-E X4 is data cable interface, and the type of the interface is .)
- Laptop External Independent Video Card DockUse for engineering measurement, data collection, server debugging, GPU computing and other industrial applica
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
8P Power Supply Interface: Equipment Power Supply Interface/Laptop Power Switch(1. Use a special 220W power supply 2. Use desktop ATX power supply with ATX cable)
DC Power Interface: DC 12V Power Supply (Maximum power is 150W)
USB Interface: This interface only provides 500mA voltage output and does not have any other functions(The interface of M. 2 M Key and PCIE X4 is data cable interface, and the type of the interface is. )
Data line Interface: For Mini PCIE, Expresscard, NGFF(M. 2)A/E Key or M Key, PCIE X4 Converter Cable
Note:

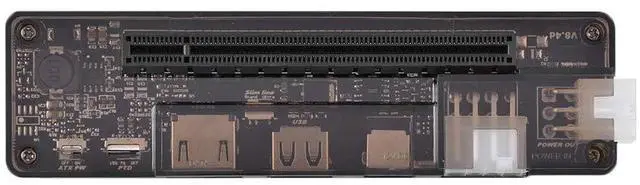

The switch of ATX PW, PTD, Slim Line is OFF by default. Please not move it.
is nonstandard interface, and other will be prohibited, otherwise the device will be damaged!
Instructions:
To better use the external graphics card, please read the instructions carefully before installing the external graphics card, and do the following operations (unload all builtin independent graphics driver).
Disable the builtin independent graphic card in the BIOS and turn off the network. Update BIOS of the notebook to the latest version. (You can see the update method in the official website of your laptop. )
Enter in ComputerDevice ManagementSystem. Disable PCI relatedportuntil the builtin independent graphics card is gone.
Restart the notebook after the hardware installation is complete. The external graphics card power supply is controlled by the laptop, the external graphics card start when the laptop is activated, the external graphics card can close when the laptop is closed. The 6Pin interface of the graphics card must be connected correctly, otherwise the power supply is insufficient.

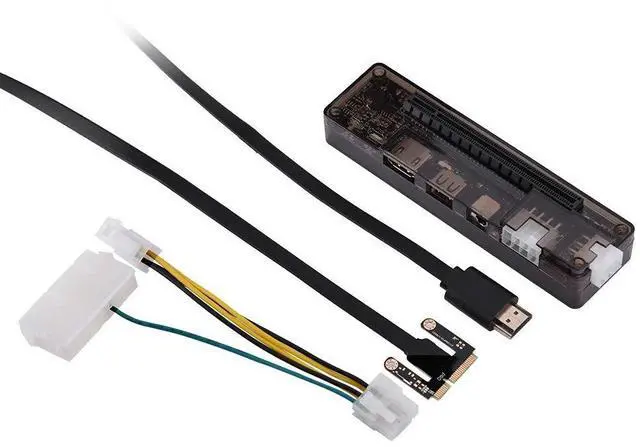

Package Includes:
1 x Laptop External Independent Video Card Dock
1 x MINI PCIE Data Line
1 x ATX Power Supply Cable ( power supply cable can be split into 6pin cable)
