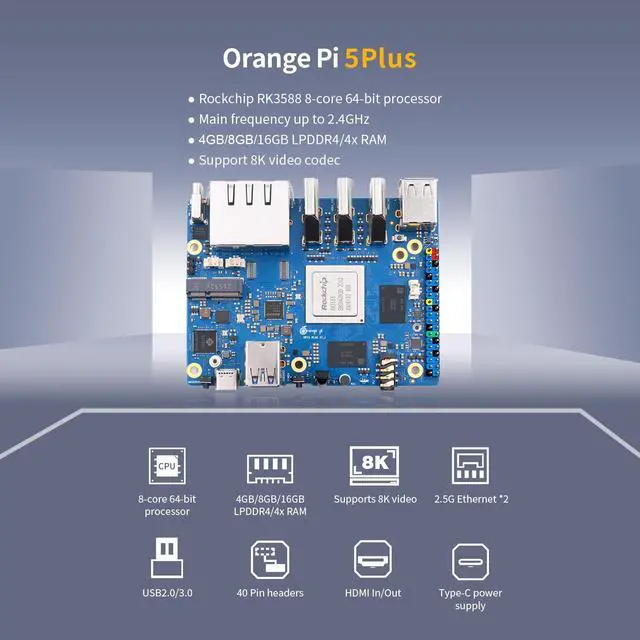

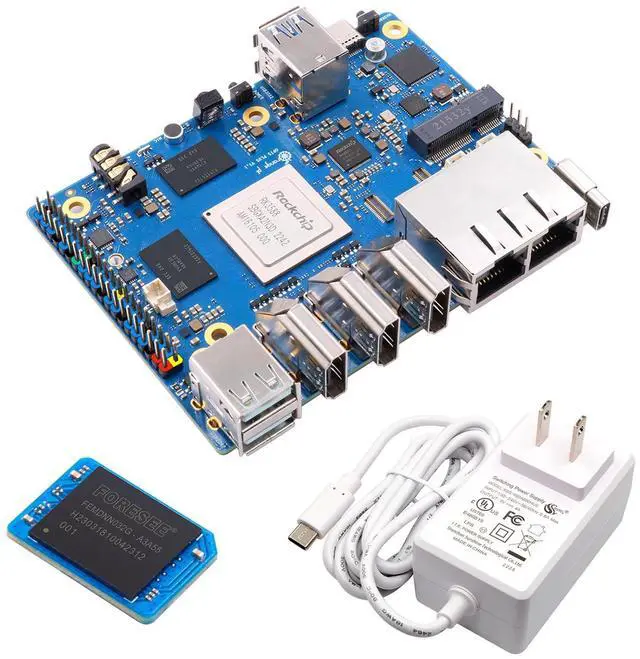

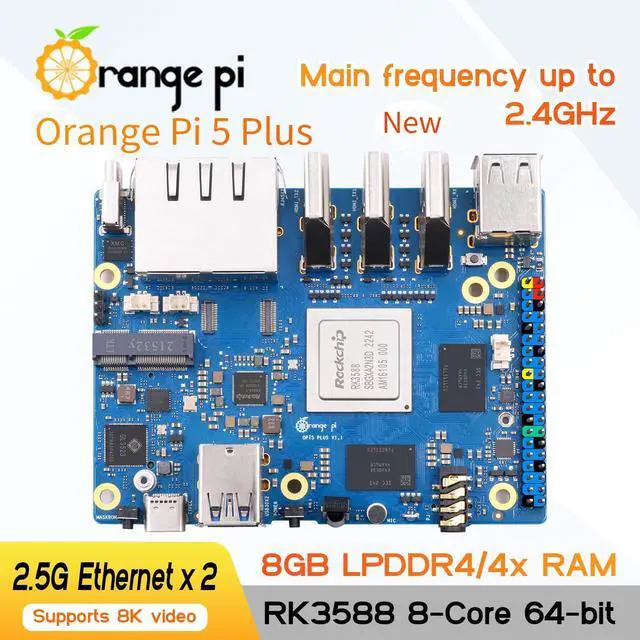

Orange Pi 5 Plus 8GB LPDDR4/4x Rockchip RK3588 8-Core 64-Bit Single Board Computer with 64GB eMMC Module, Development Board Run Orange Pi/Linux/Ubuntu/Debian/Android OS (8GB+64GB eMMC+Power Supply)
- [High Performance]: Orange Pi 5 Plus signal board computer uses Rockchip RK3588 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design. 4GB/8GB/16GB LPDDR4/4x RAM memory and support eMMC socket which can be connected with 32GB/64GB/256GB eMMC module. Main frequency up to 2.4GHz and up to 8K display processing capability.

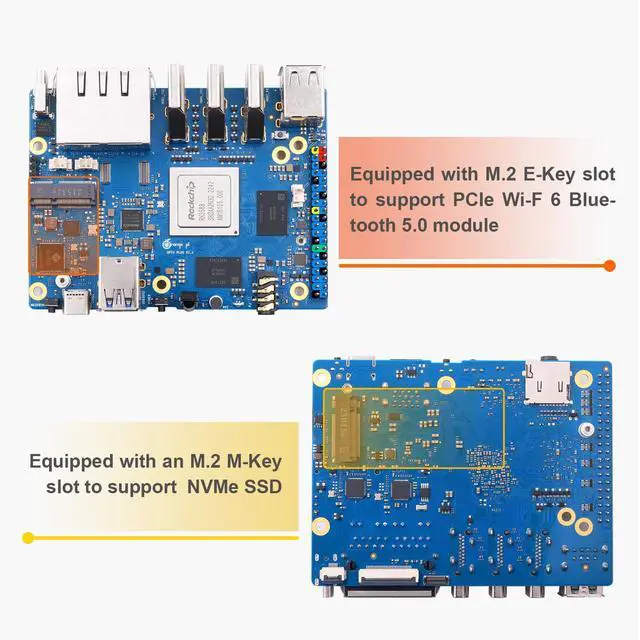

- [Abuandent Interfaces]: Orange Pi 5 Plus development board provides abundant interfaces, including 2*HDMl output ports, 1*HDMl input port , 2*PCIe extended 2.5G Ethernet ports, 1*M.2 M-Key slot (supports installation of NVMe SSDs), and 1*M.2 E-Key slot (supports Wi-Fi 6 and Bluetooth modules). In addition, Orange Pi 5 Plus has 2*USB 3.0, 2*USB 2.0, and 2*Type-C (one of which is a power connector).
- [8K Video Codes Support]: Orange Pi 5 Plus up to supports 8-core CPU and 8K@60Hz video decoding , the powerful video codec allows for clearer images and more detailed picture quality which greatly improves the user gaming experience.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Parameters SoC: Rockchip RK3588 (8nm LP process)
CPU: 8-core 64-bit processor 4 x Cortex-A76( 2.4GH z), 4 x Cortex-A55( 1.8GH z) and separate NEON co-processors
GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
PMU: RK806-1
RAM: 4GB/8GB/16GB
LPDDR4/4X Memory: QSPI
Nor FLASH: 16MB/32MB
MicroSD card slot: up
to 128GB eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached M. 2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2, 000
MB/s USB: USB 3.0 × 2USB 2.0 × 2Type-C ×1
Video: 2x HDMI 2.1 out up to 8k@60FPS 1x Type-C with DP TX 1.4A up to 8K@30FPS 1x HDMI in with up to 4K@60FPS 1 x MIPI DSI TX 4 Laneup to 4K @60Hz TP interface1x 6Pin FPC socket
Camera: 1XMIPI CSI 4
Lane AudioCODEC: ES8388 1xAudio 3.5 mm jack with mic 1xMIC In 1xHDMI 2.1 eARC 1xSPK
Ethernet: 2xPCIe 2.5G LANRTL8125BG)
Expansion Port: 40 Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO PCIe M.
2 M-KEY Socket: M. 2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD PCIe M.
2 E-KEY Socket: M. 2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB 2.0, 2230 Wi-Fi6 /BT supported
Button: 1×MaskROM key1xRecovery1×on/off key
Power Source: Support Type-C power supply, 5V@4A
IR receiver: 1x IR receiver tube
LED: RGB LED side light
FAN: 5V
FAN RTC2Pin: RTC backup battery
Debugging: 3Pin debug serial port (UART)
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu 22.04, Debian11, Android12
CPU: 8-core 64-bit processor 4 x Cortex-A76( 2.4GH z), 4 x Cortex-A55( 1.8GH z) and separate NEON co-processors
GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
PMU: RK806-1
RAM: 4GB/8GB/16GB
LPDDR4/4X Memory: QSPI
Nor FLASH: 16MB/32MB
MicroSD card slot: up
to 128GB eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached M. 2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2, 000
MB/s USB: USB 3.0 × 2USB 2.0 × 2Type-C ×1
Video: 2x HDMI 2.1 out up to 8k@60FPS 1x Type-C with DP TX 1.4A up to 8K@30FPS 1x HDMI in with up to 4K@60FPS 1 x MIPI DSI TX 4 Laneup to 4K @60Hz TP interface1x 6Pin FPC socket
Camera: 1XMIPI CSI 4
Lane AudioCODEC: ES8388 1xAudio 3.5 mm jack with mic 1xMIC In 1xHDMI 2.1 eARC 1xSPK
Ethernet: 2xPCIe 2.5G LANRTL8125BG)
Expansion Port: 40 Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO PCIe M.
2 M-KEY Socket: M. 2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD PCIe M.
2 E-KEY Socket: M. 2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB 2.0, 2230 Wi-Fi6 /BT supported
Button: 1×MaskROM key1xRecovery1×on/off key
Power Source: Support Type-C power supply, 5V@4A
IR receiver: 1x IR receiver tube
LED: RGB LED side light
FAN: 5V
FAN RTC2Pin: RTC backup battery
Debugging: 3Pin debug serial port (UART)
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu 22.04, Debian11, Android12
